Sir Coil Assembly: Removal

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, See AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .
  2. Remove driver-side air bag. See AIR BAG MODULES  . Remove steering wheel. See STEERING WHEEL  . Remove upper and lower steering column shrouds.

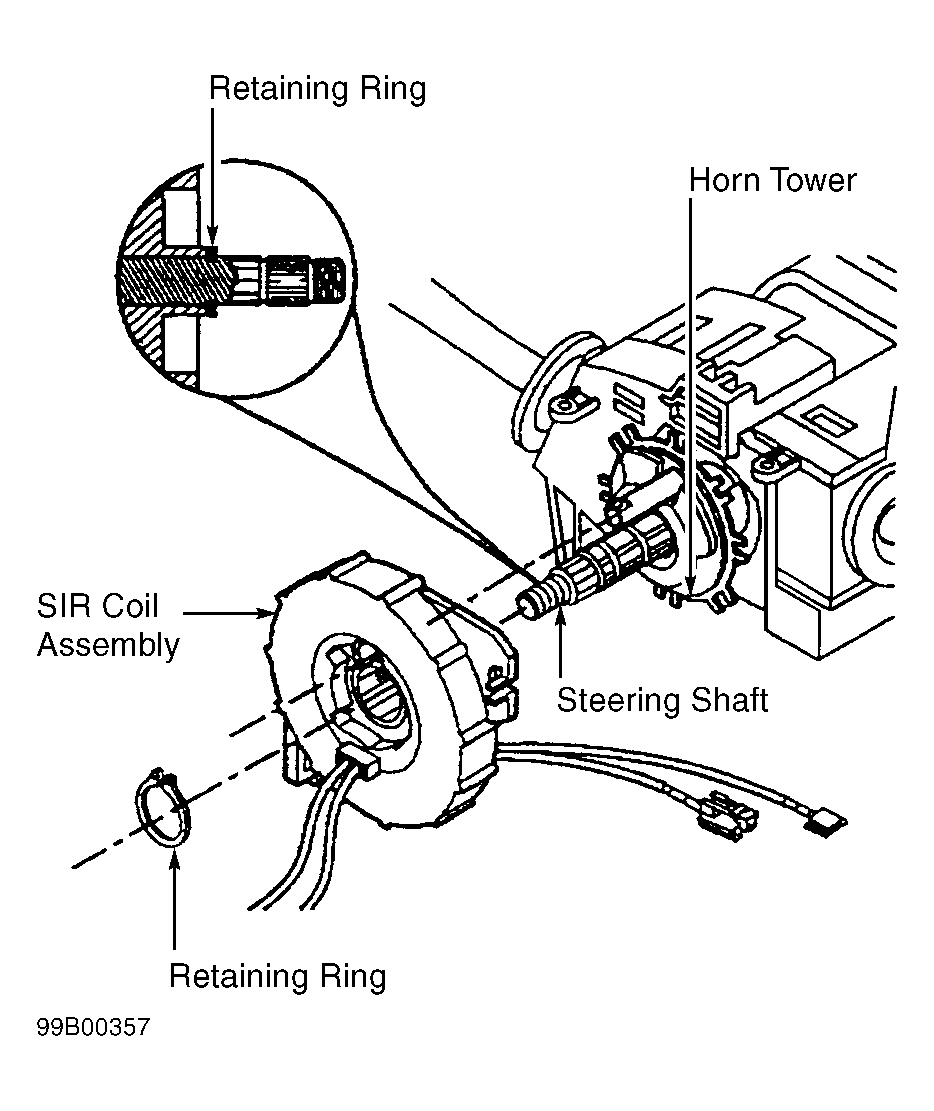

  3. Remove wire harness straps from steering wheel column wire harness. Remove retaining ring. Remove SIR coil and wave washer. See Figure .
