Instrument Panel Trim Pad: Installation

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  2. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Check system for proper operation. See SYSTEM OPERATION CHECK  .

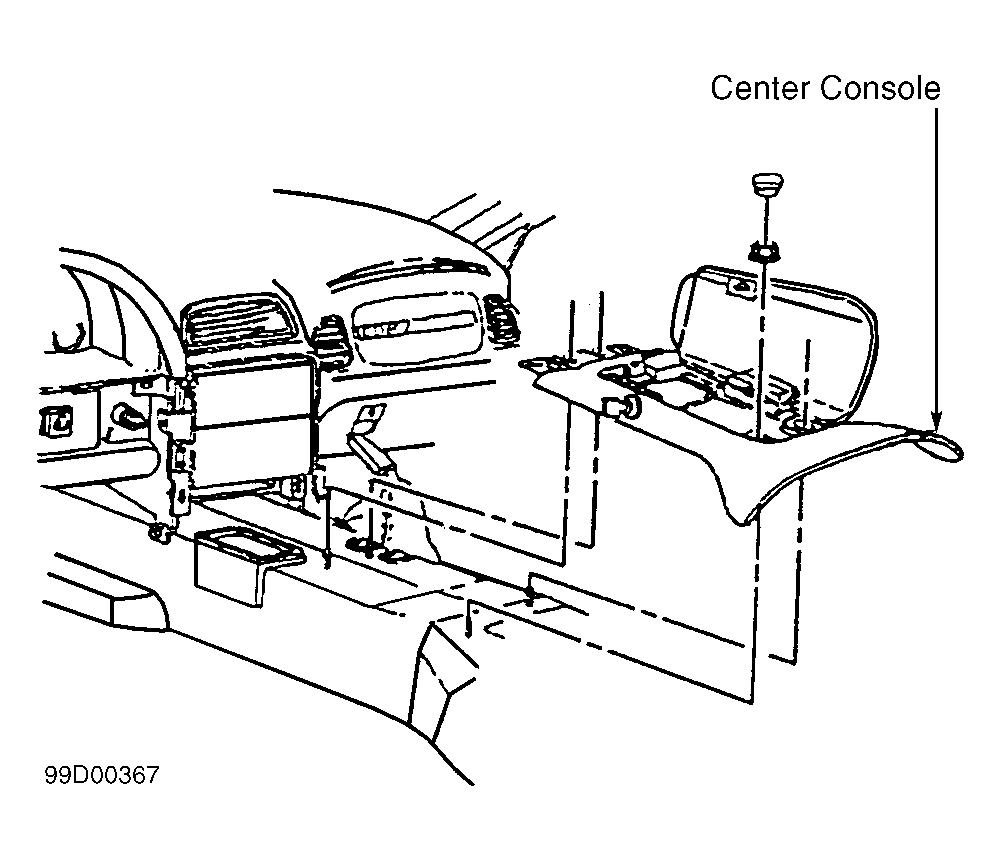

Fig 1: Removing Center Console
G99D00367Courtesy of GENERAL MOTORS CORP.

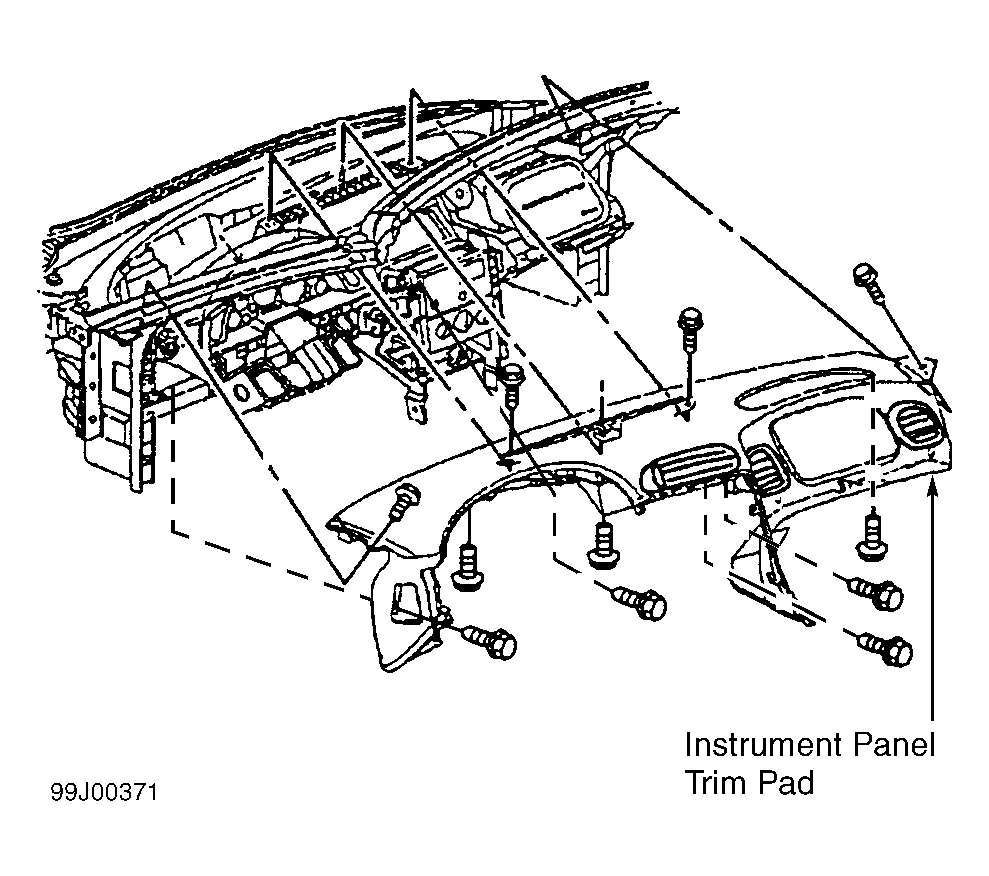

Fig 2: Removing Instrument Panel Trim Pad
G99J00371Courtesy of GENERAL MOTORS CORP.
