Air Bag Modules: Installation

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. See Fig 1 . Tighten air bag module screws to 54 INCH lbs. (6 N.m). Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

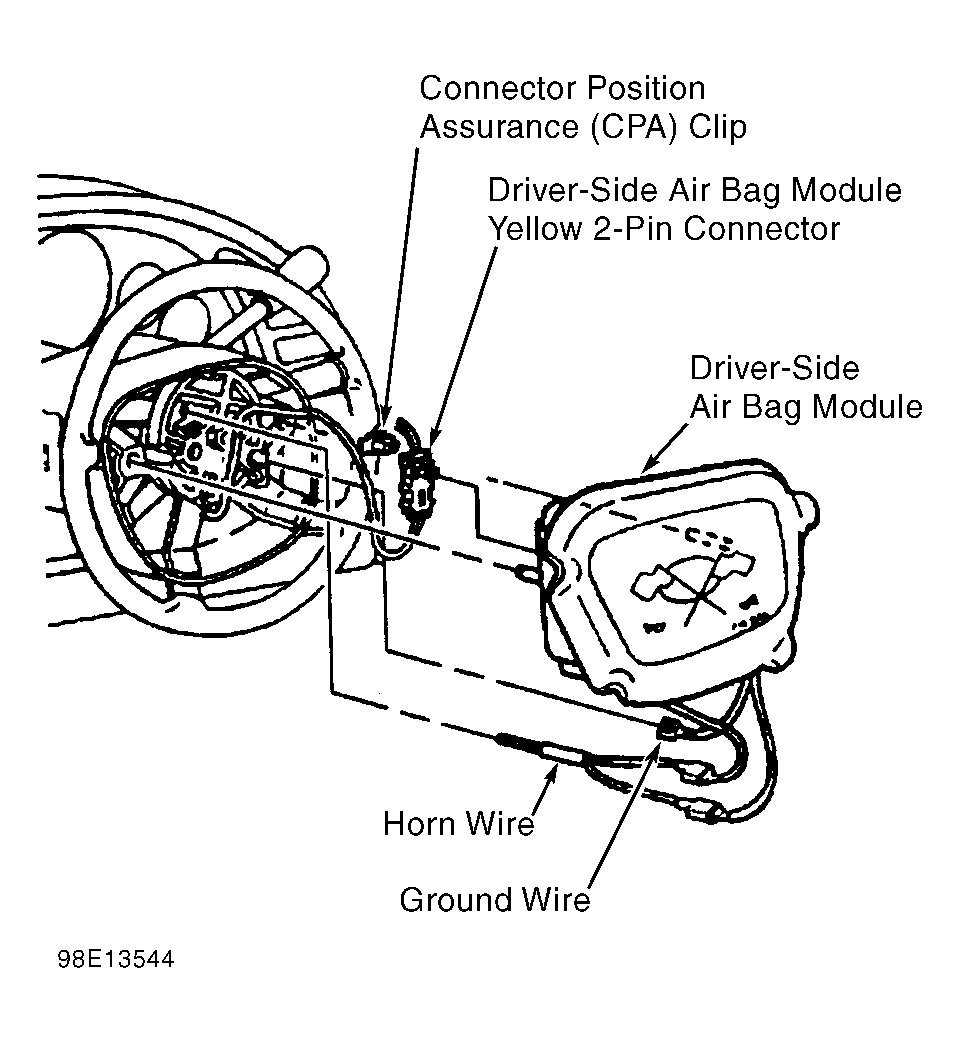

Fig 1: Removing Driver-side Air Bag

Courtesy of GENERAL MOTORS CORP.

To install, reverse removal procedure. See Fig 1 . Tighten fasteners to 89 INCH lbs. (10 N.m). Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

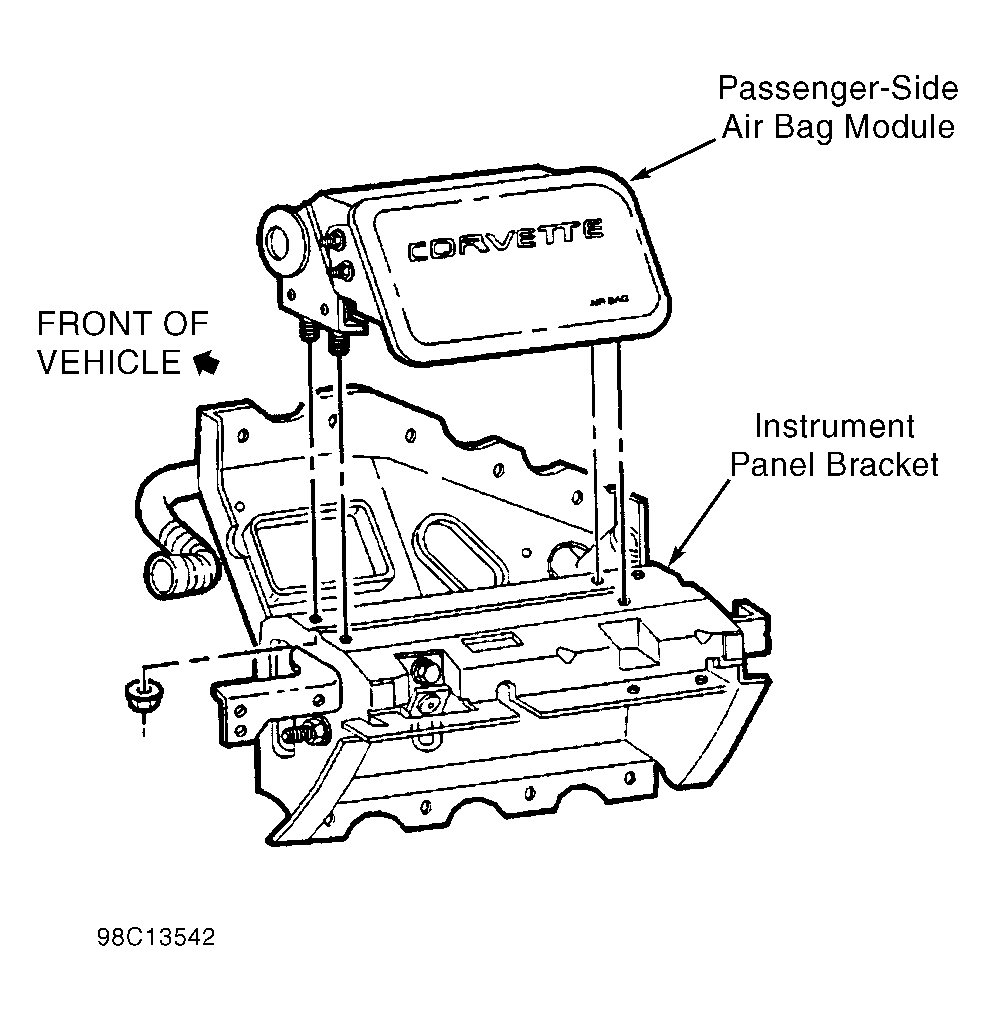

Fig 1: Removing Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
