Sensing & Diagnostic Module (SDM): Removal

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, See AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

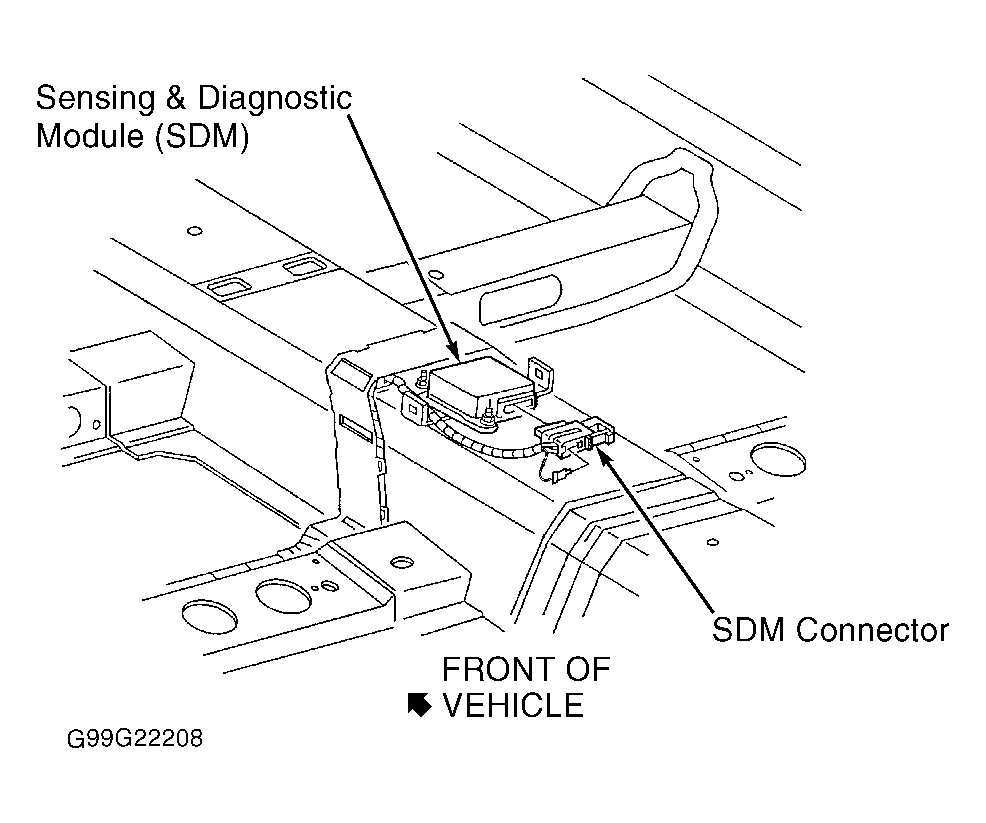

  2. Remove front seat assembly. Move carpet and insulation to gain access to SDM mounted on center tunnel. See Figure. Remove push on clip securing SDM wire harness to console stud. Remove Connector Position Assurance (CPA) clip and disconnect SDM harness connector. Remove SDM mounting fasteners and remove SDM from console floor.
