Door Latch: Removal

WARNING: This page is about a different car, the 2000 Chevrolet Corvette and 1999 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door panel. See DOOR CONTROL MODULE  . Remove water deflector. Reconnect power window switch and raise window. Disconnect window switch.
  2. Disconnect lock cylinder rod from outside door handle. Disconnect electrical connectors from latch assembly. Disconnect door opening rod from latch assembly by using diagonal cutters to cut off clip. Remove 3 screws attaching latch to door.
  3. Remove inside door handle and disconnect lock and opening rods. Unclip rods from anti-rattle retainer. Remove door latch with inside rods and lock cylinder rod attached. Remove lock rods if necessary. Note position of each rod. See Fig 1 .

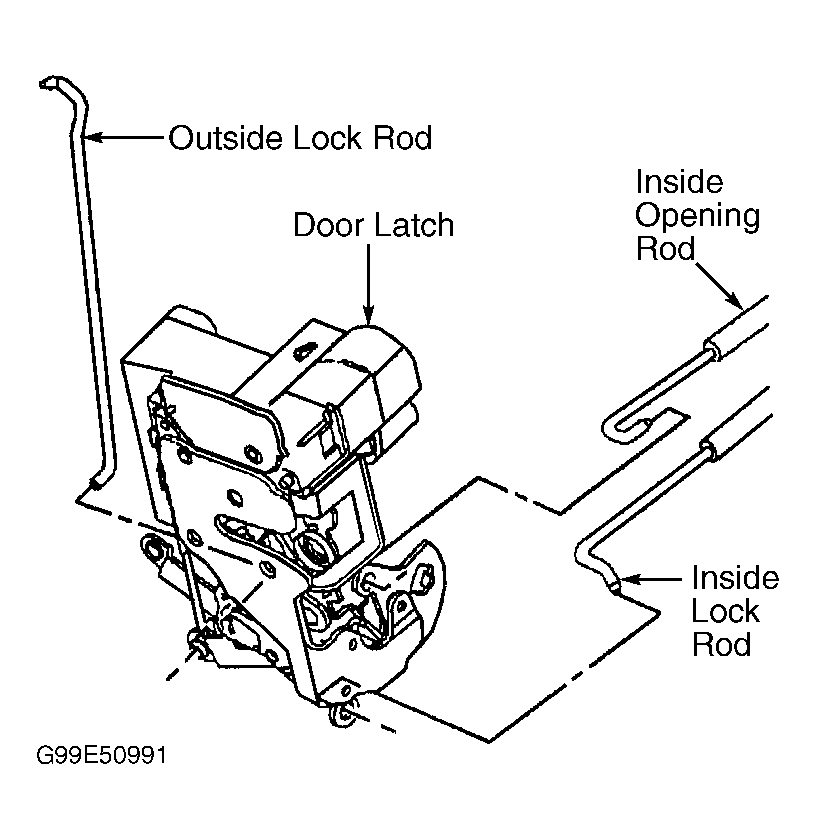

Fig 1: Identifying Lock Rod Positions
G99E50991Courtesy of GENERAL MOTORS CORP.
