Removal (1.9L, 3.0L, 3.1L, 3.4L & 3.8L)

  1. Relieve fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Disconnect negative battery cable. Remove air intake duct, if necessary. On 1.9L, disconnect throttle cable from throttle body lever. On 3.0L, 3.1L and 3.4L, remove intake manifold plenum and gaskets. On 3.8L, remove vacuum line from throttle body. Remove ignition coil wires.
  2. On all models, disconnect vacuum hose at fuel pressure regulator. Disconnect and plug fuel return line at pressure regulator. Disconnect and plug fuel inlet line at fuel rail. Disconnect harness connectors from injectors.

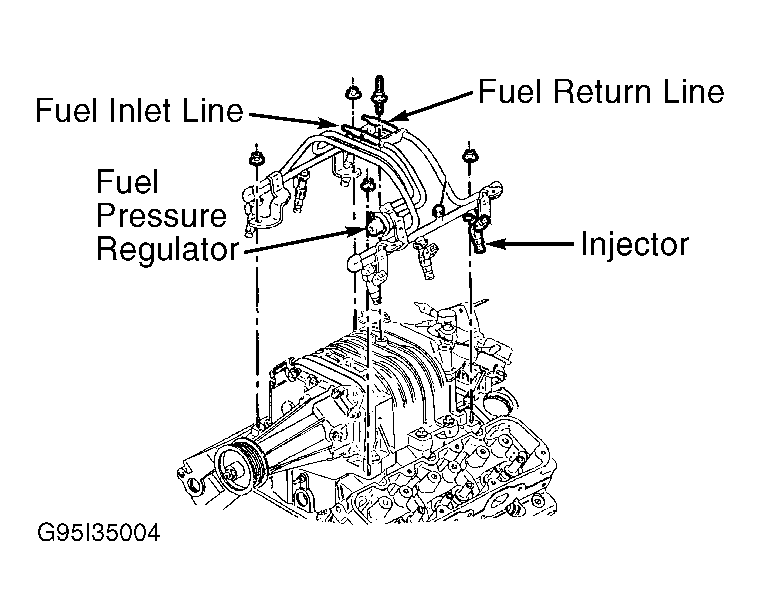

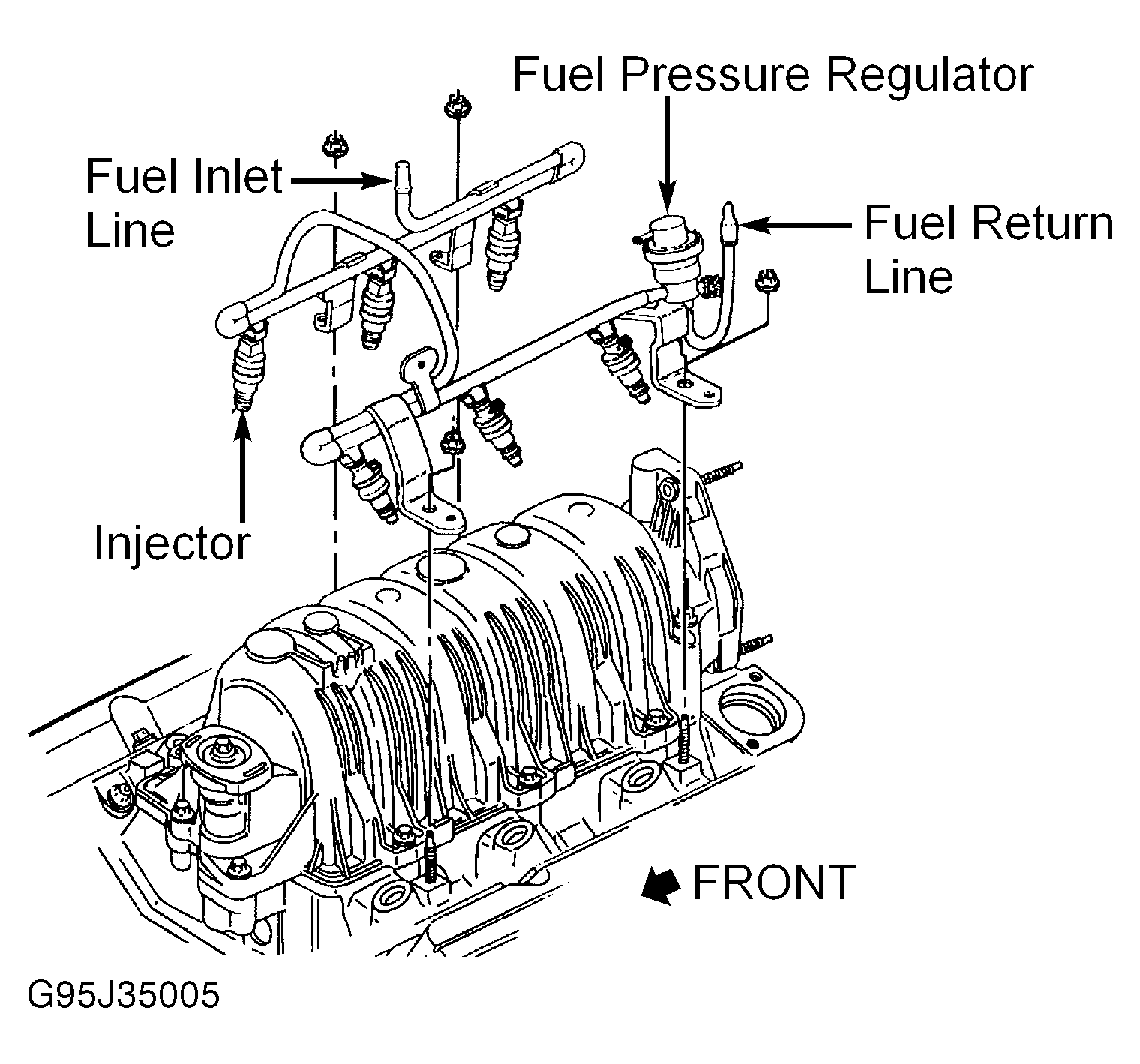

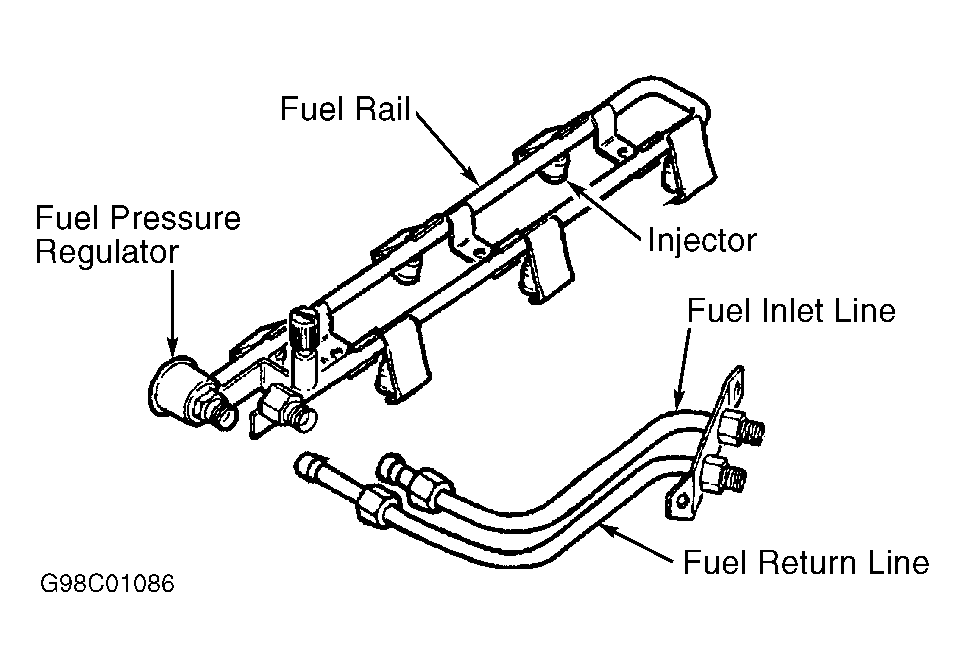

  3. Remove fuel rail retaining bolts. Remove fuel rail from intake manifold using equal force on both sides of fuel rail. See Figure, Figure, Figure, Figure and Figure . Remove injector-to-fuel rail retaining clip, if equipped. Remove injectors from fuel rail. Remove injector "O" rings and discard.
