Valve Lifters: Removal

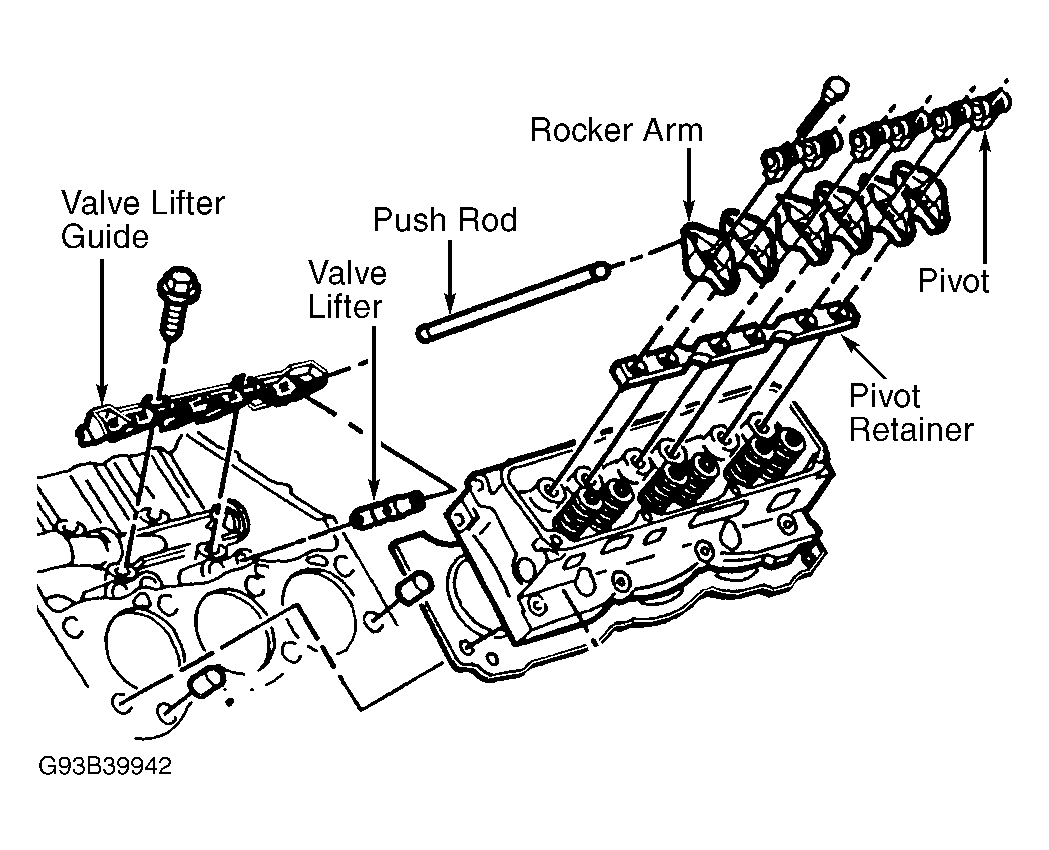

Remove upper and lower intake manifold. See INTAKE MANIFOLD (UPPER)  and INTAKE MANIFOLD (LOWER)  . Remove rocker arms and push rods. See ROCKER ARMS & PUSH RODS . Remove valve lifter guide and valve lifters. See Figure. Mark component locations for reassembly reference.
