Home >> Chevrolet >> 2001 >> Camaro Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical - 3.8L V6 (VIN K) >> Removal & Installation >> Supercharger >> Components

Removal & Installation: Supercharger: Components

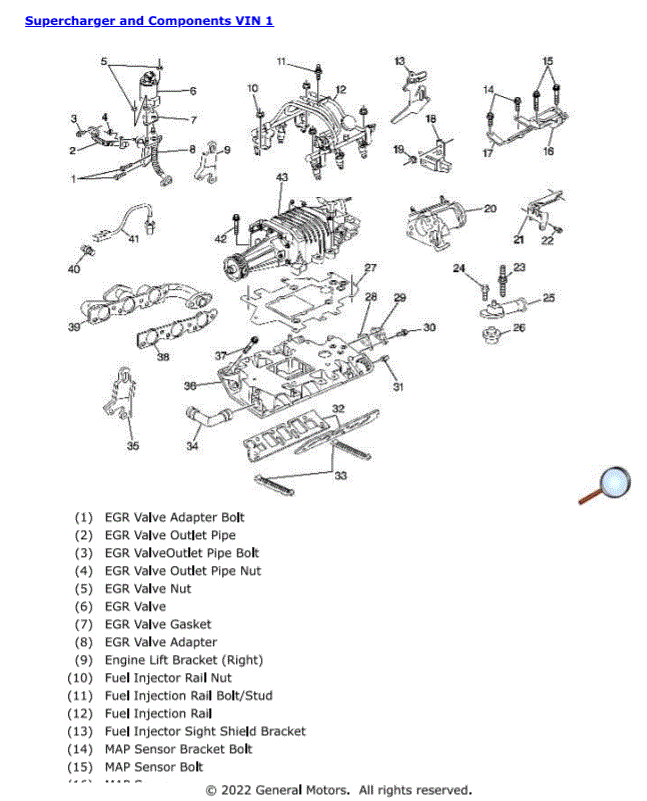

G00610748Courtesy of GENERAL MOTORS CORP.

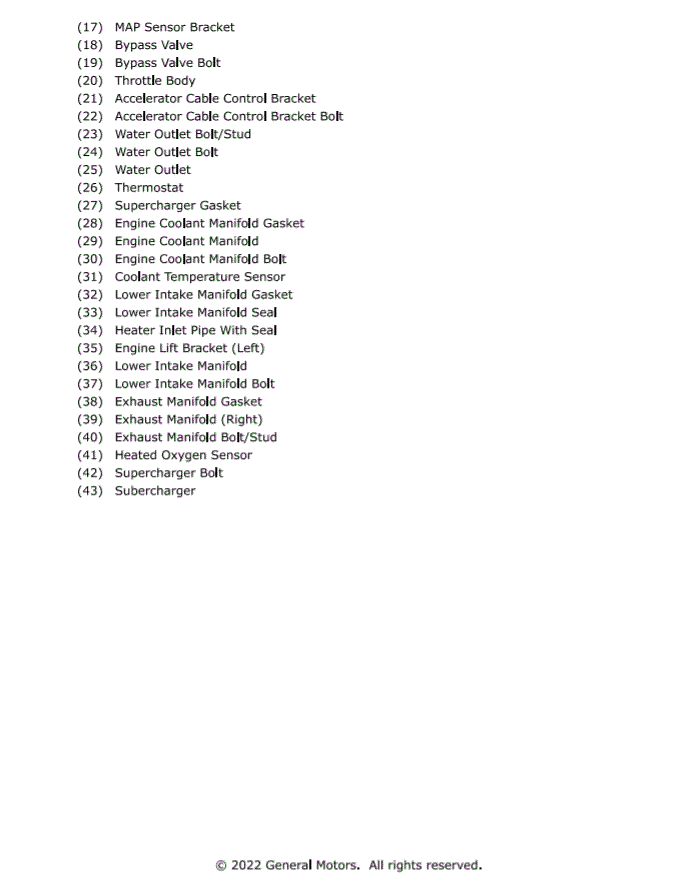

G00610749Courtesy of GENERAL MOTORS CORP.
