Removal Procedure

  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT .
  3. Remove the radiator inlet hose. Refer to RADIATOR HOSE REPLACEMENT - INLET (3.8L ENGINE  or RADIATOR HOSES (5.7L) .
  4. Remove the fan shroud. Refer to Fan Shroud Replacement .
  5. Reposition the outlet hose clamp at the water outlet.
  6. Remove the outlet hose from the water outlet.
    Fig 1: Removing Outlet Hose From Water Outlet
    G01730603Courtesy of GENERAL MOTORS CORP.
  7. Remove the drive belt tensioner pulley bolts and pulley from the water pump.

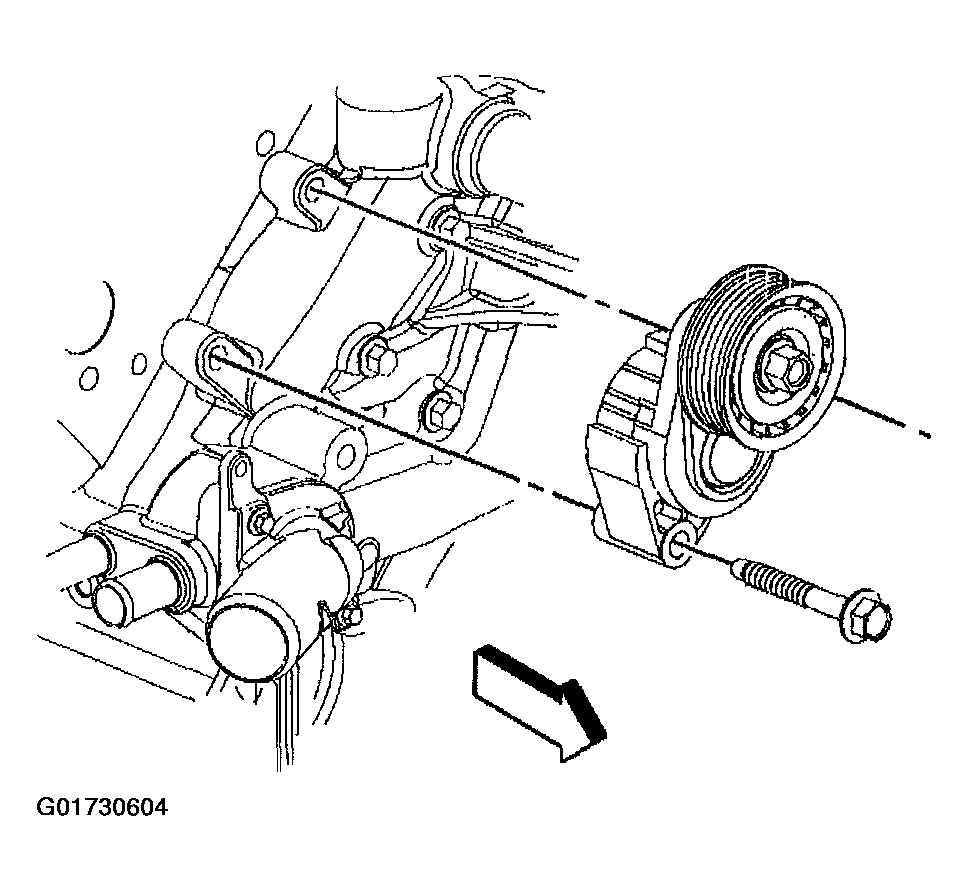

    Fig 2: Removing Drive Belt Tensioner Pulley Bolts
    G01730604Courtesy of GENERAL MOTORS CORP.
  8. Remove the throttle body heater outlet hose from the radiator.

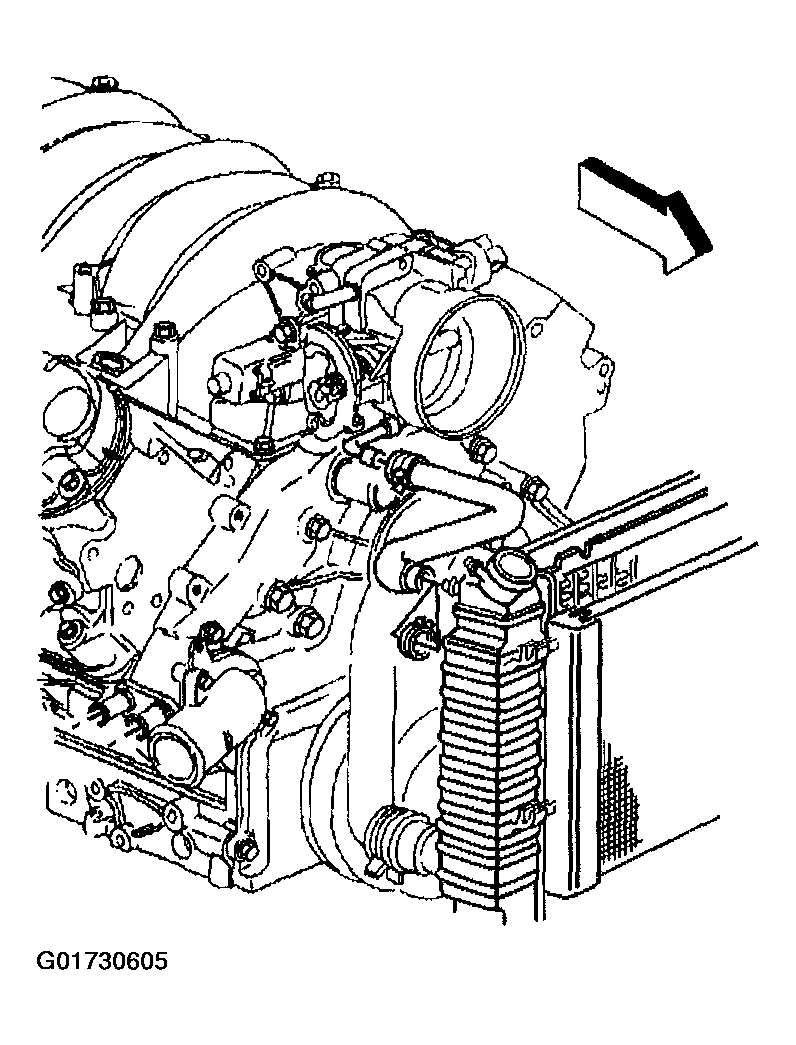

    Fig 3: Removing Throttle Body Heater Outlet Hose
    G01730605Courtesy of GENERAL MOTORS CORP.
  9. Remove the water pump bolts.

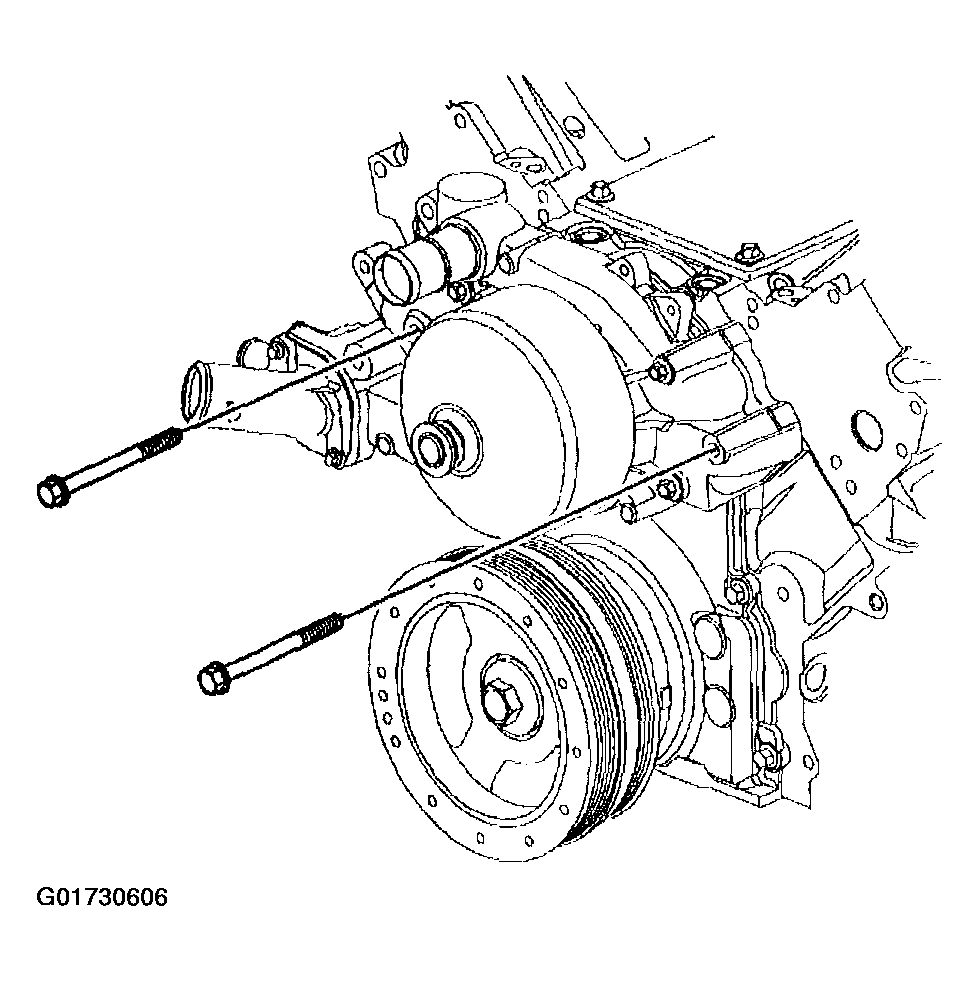

    Fig 4: Removing Water Pump Bolts
    G01730606Courtesy of GENERAL MOTORS CORP.
  10. Remove the water pump.
  11. Remove the water pump gaskets.
  12. Clean and inspect the water pump. Refer to WATER PUMP CLEANING AND INSPECTION .

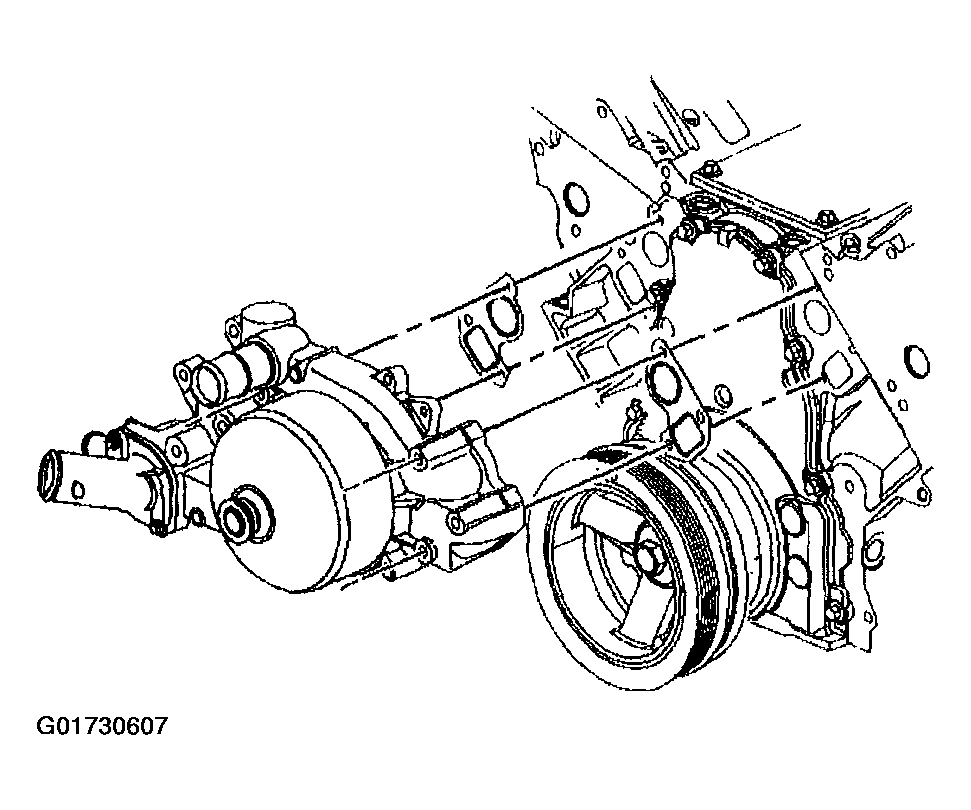

    Fig 5: Removing Water Pump
    G01730607Courtesy of GENERAL MOTORS CORP.
