Installation Procedure

Install the water pump and gaskets to the engine block.

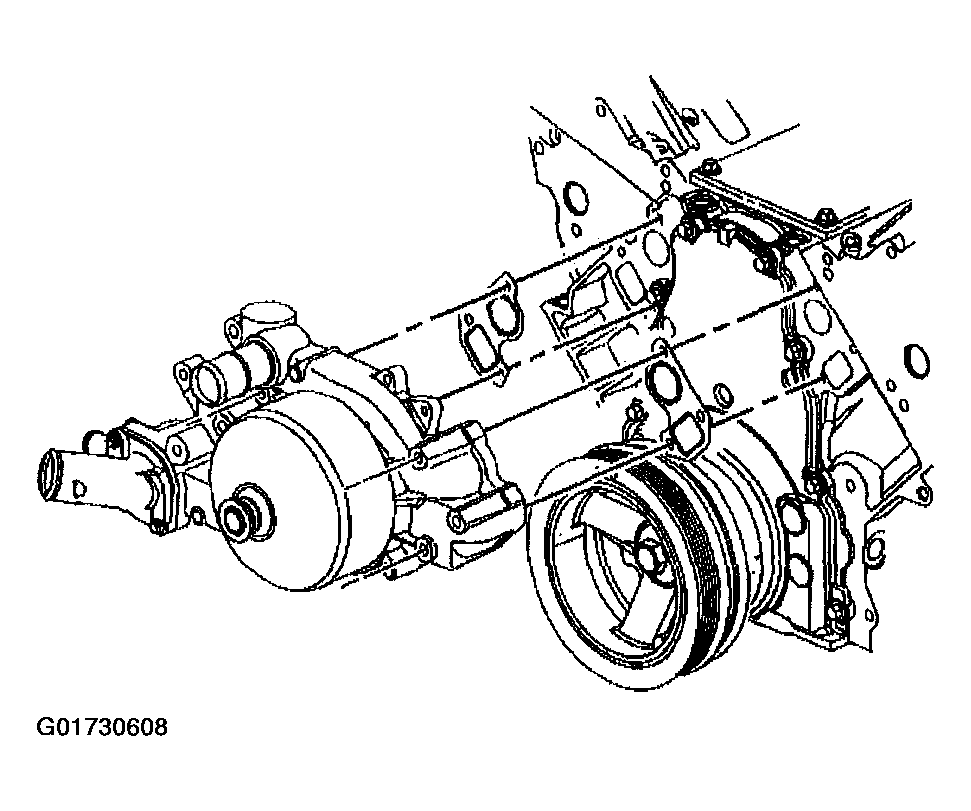

Fig 1: Installing Water Pump
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the water pump bolts.
Tighten

Tighten the water pump bolts to 30 N.m (22 lb ft).

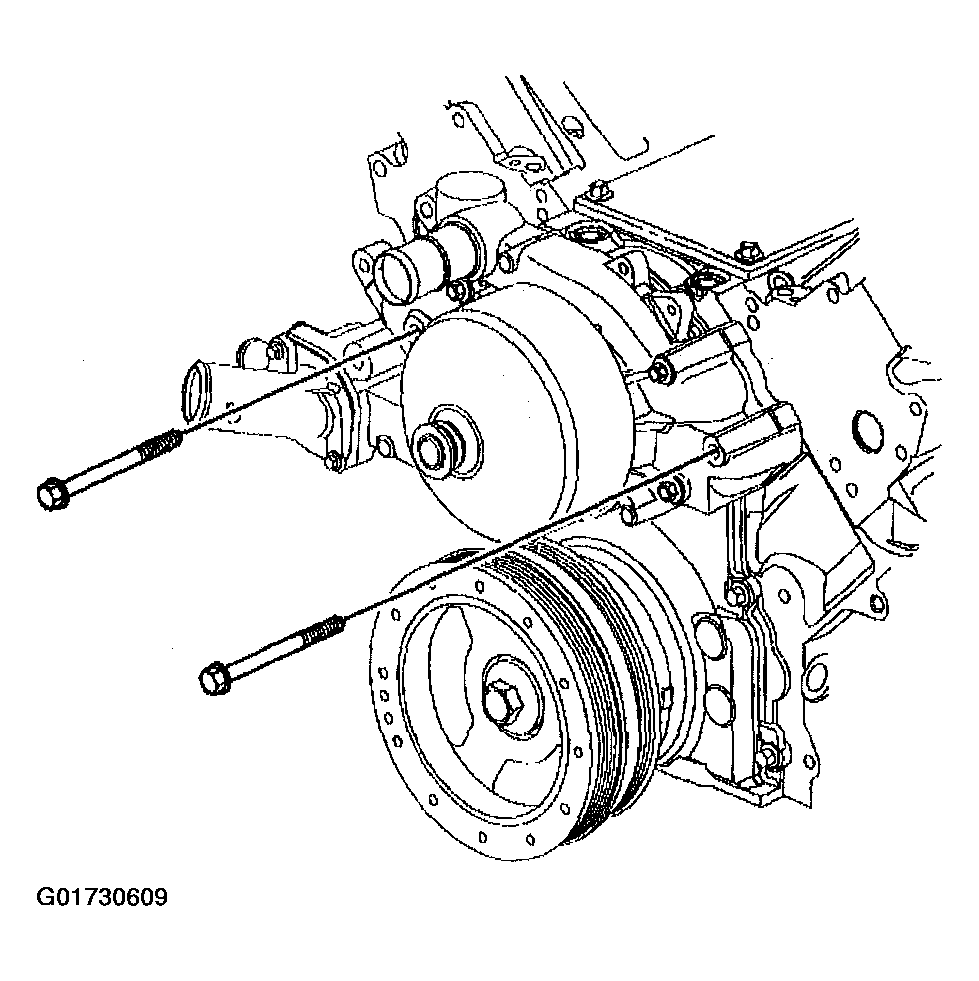

Fig 2: Installing Water Pump Bolts
Courtesy of GENERAL MOTORS CORP.
Install the throttle body heater outlet hose to the radiator.

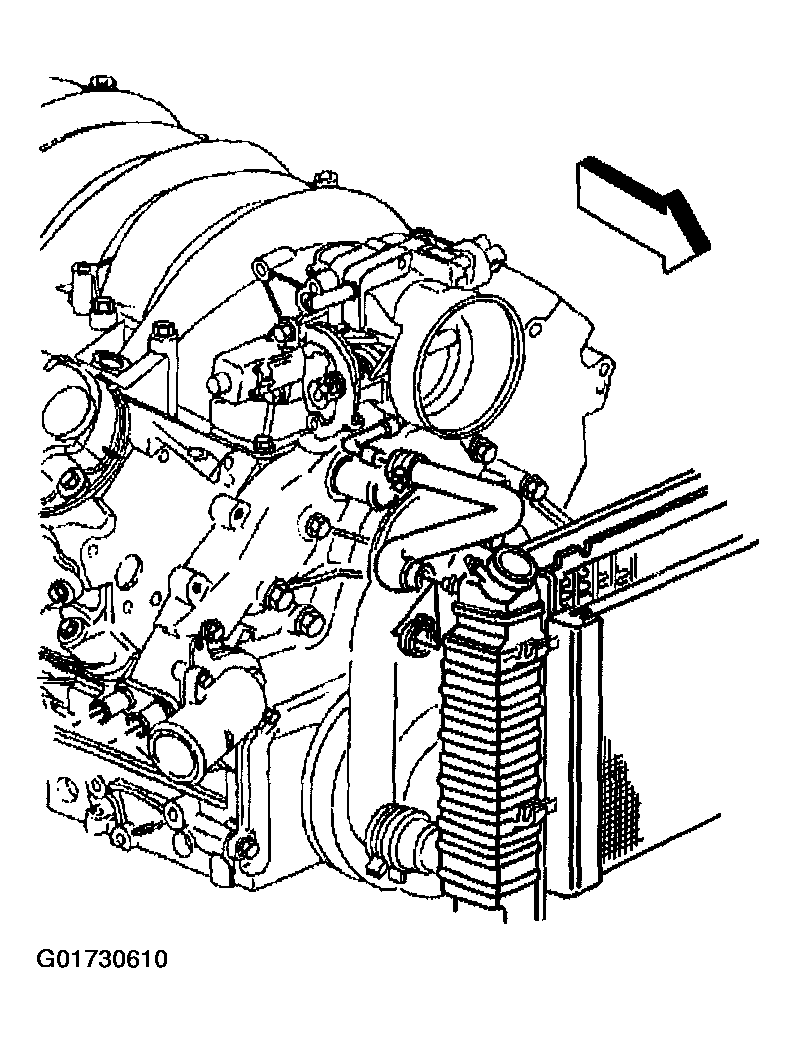

Fig 3: Installing Throttle Body Heater Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Install the drive belt tensioner and bolts to the water pump.
Tighten

Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

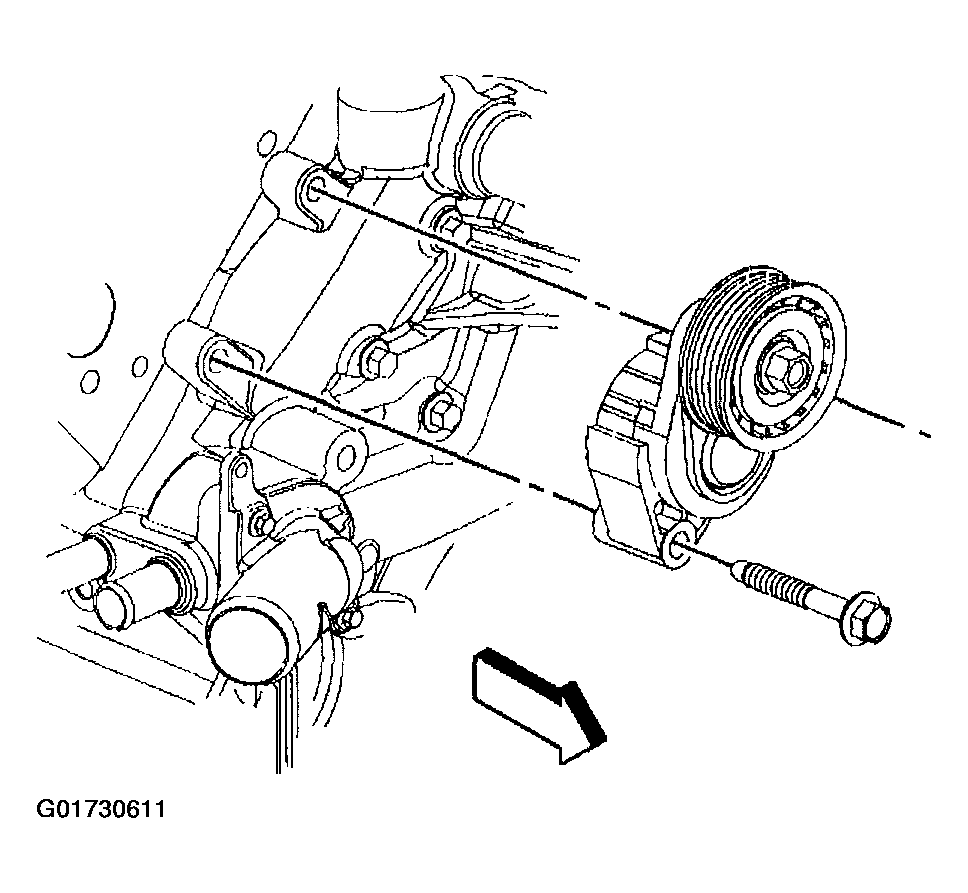

Fig 4: Installing Drive Belt Tensioner And Bolts
Courtesy of GENERAL MOTORS CORP.
Install the outlet hose to the water outlet.
Position the outlet hose clamp at the water outlet.
Install the fan shroud. Refer to Fan Shroud Replacement .
Install the inlet hose. Refer to RADIATOR HOSE REPLACEMENT - INLET (3.8L ENGINE) or RADIATOR HOSE REPLACEMENT - INLET (5.7L ENGINE) .

Fig 5: Installing Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
