Removal Procedure

  1. Open the radiator drain cock.
  2. Partially drain the radiator.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Close the radiator drain cock.

    Tighten

    Tighten the radiator drain cock to 2 N.m (18 lb in).

  4. Loosen the water pump pulley bolts.
  5. Remove the accessory drive belt. Refer to DRIVE BELT TENSIONER REPLACEMENT .
  6. Reposition the radiator inlet hose clamp at the water pump.
  7. Remove the radiator inlet hose from the water pump.

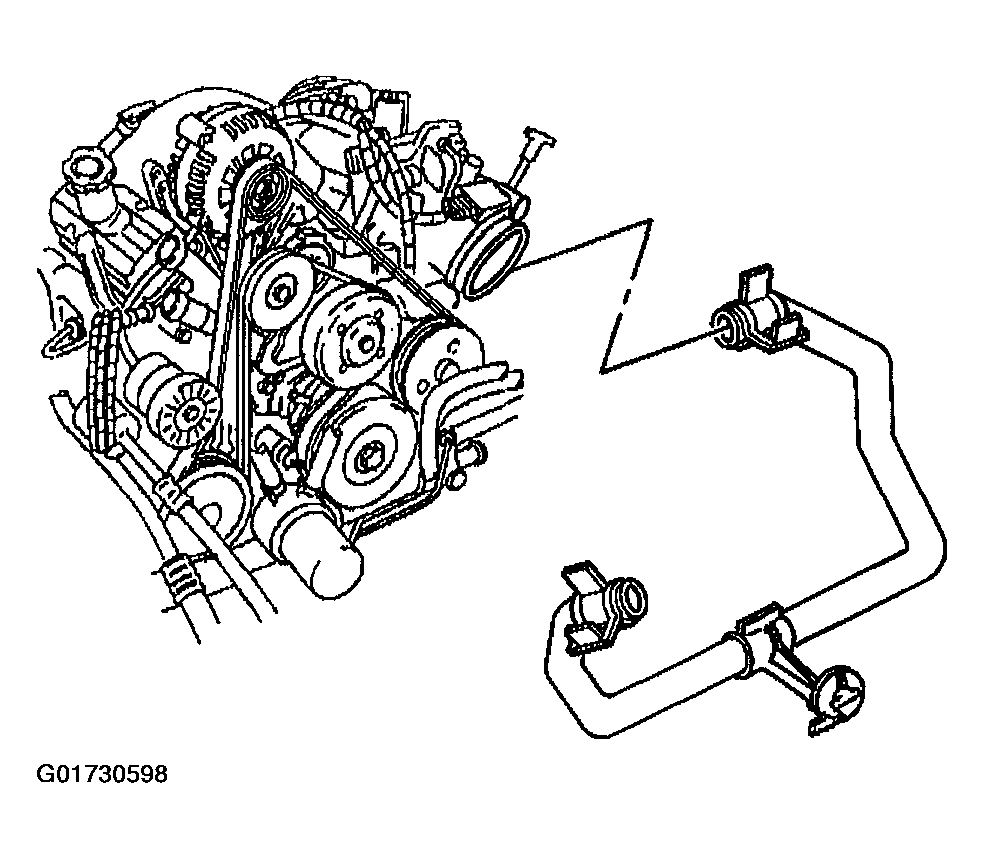

    Fig 1: Removing Radiator Inlet Hose From Water Pump
    G01730598Courtesy of GENERAL MOTORS CORP.
  8. Remove the water pump pulley bolts.
  9. Remove the water pump pulley.

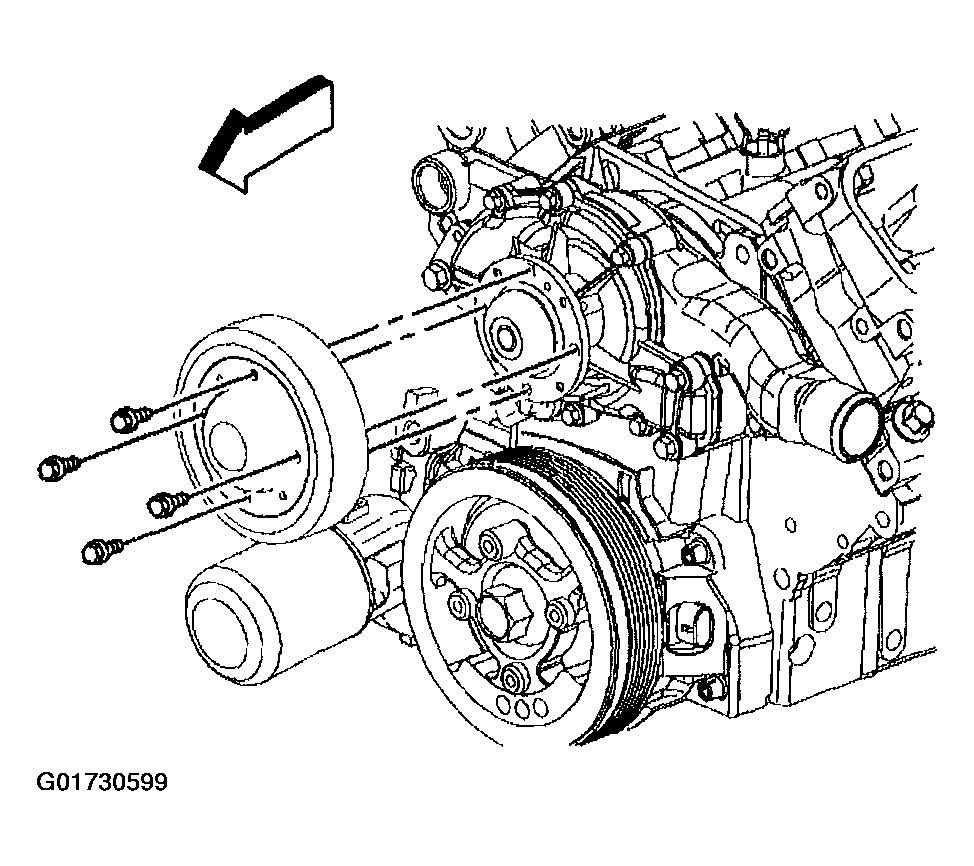

    Fig 2: Removing Water Pump Pulley
    G01730599Courtesy of GENERAL MOTORS CORP.
  10. Remove the water pump bolts (1).
  11. Remove the water pump (2).
  12. Remove the water pump gasket (3).
  13. Clean and inspect the water pump. Refer to INSPECTION .

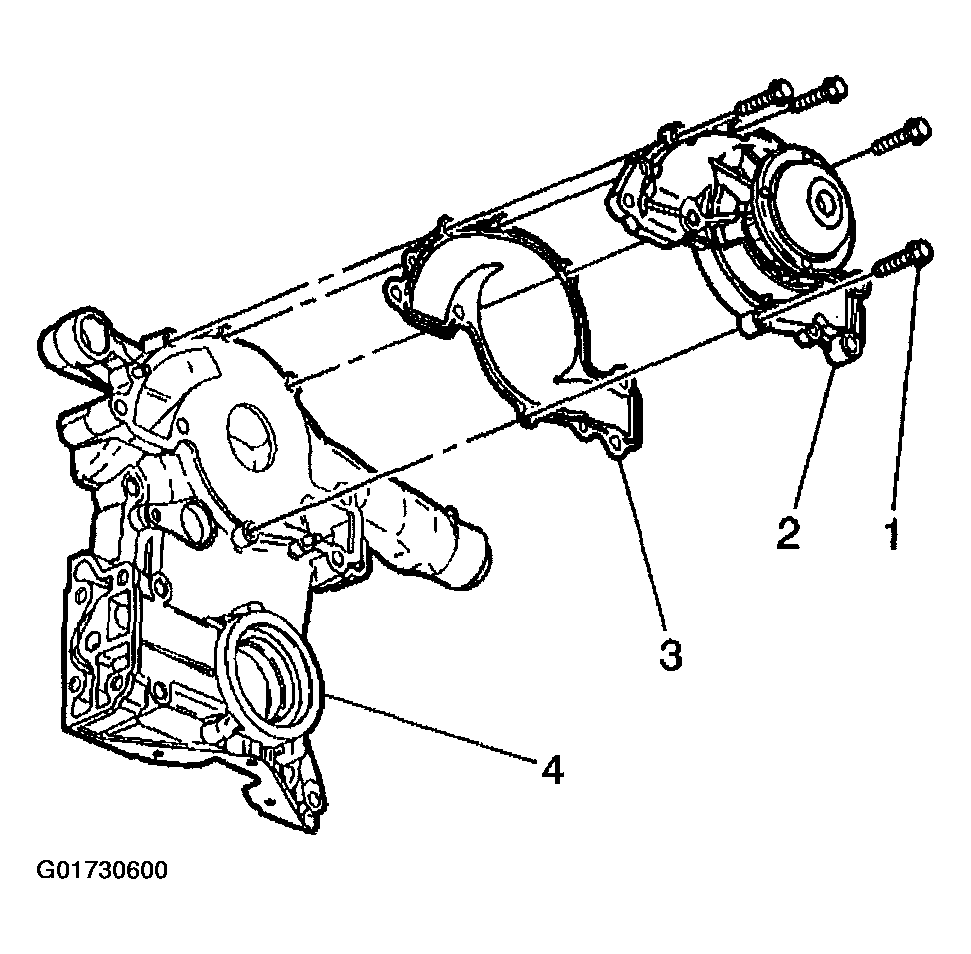

    Fig 3: Removing Water Pump Bolts
    G01730600Courtesy of GENERAL MOTORS CORP.
