Installation Procedure

  1. Install the throttle body outlet hose to the following:
    • Throttle body
    • Radiator
  2. Position the hose clamps at the throttle body and the radiator.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .

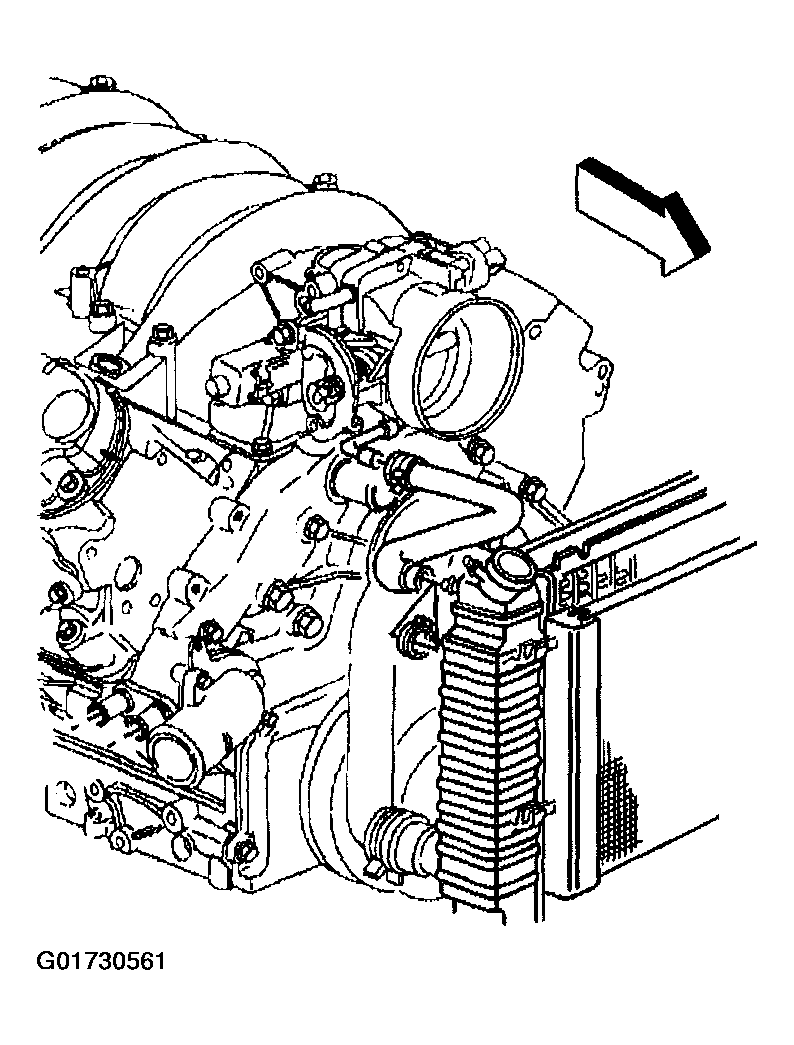

    Fig 1: Installing Throttle Body Outlet Hose
    G01730561Courtesy of GENERAL MOTORS CORP.
