Installation Procedure

  1. Install a new thermostat and housing.
  2. Ensure that the new thermostat housing has an O-ring seal and is in the groove correctly.

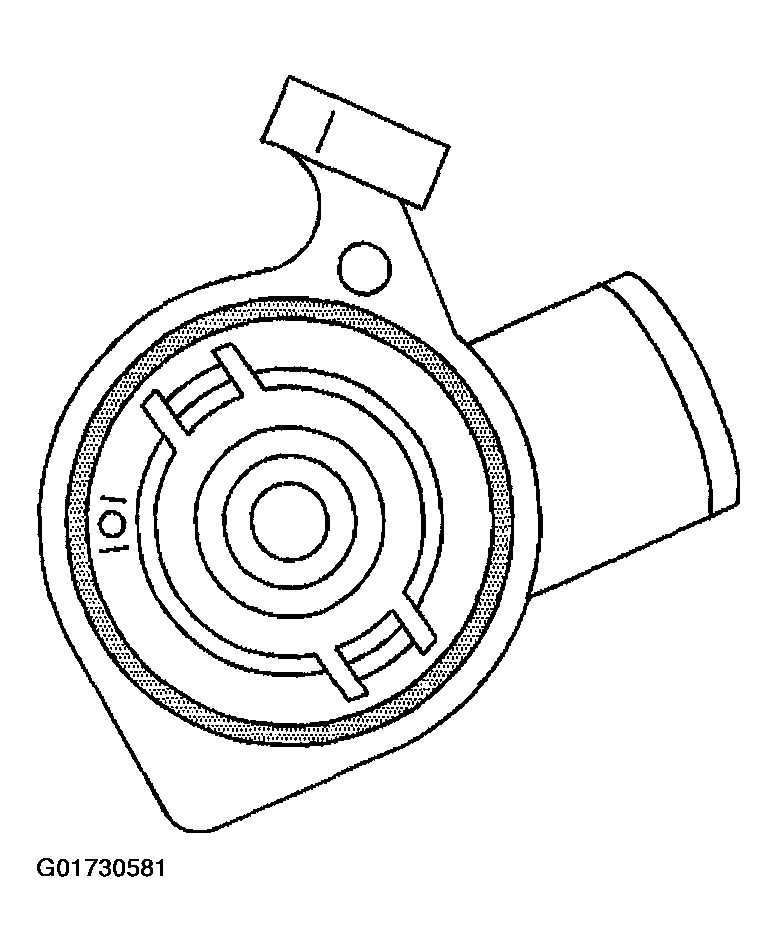

    Fig 1: Installing New Thermostat And Housing
    G01730581Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the water pump inlet and bolts.

    Tighten

    Tighten the water pump inlet bolts to 15 N.m (11 lb ft).

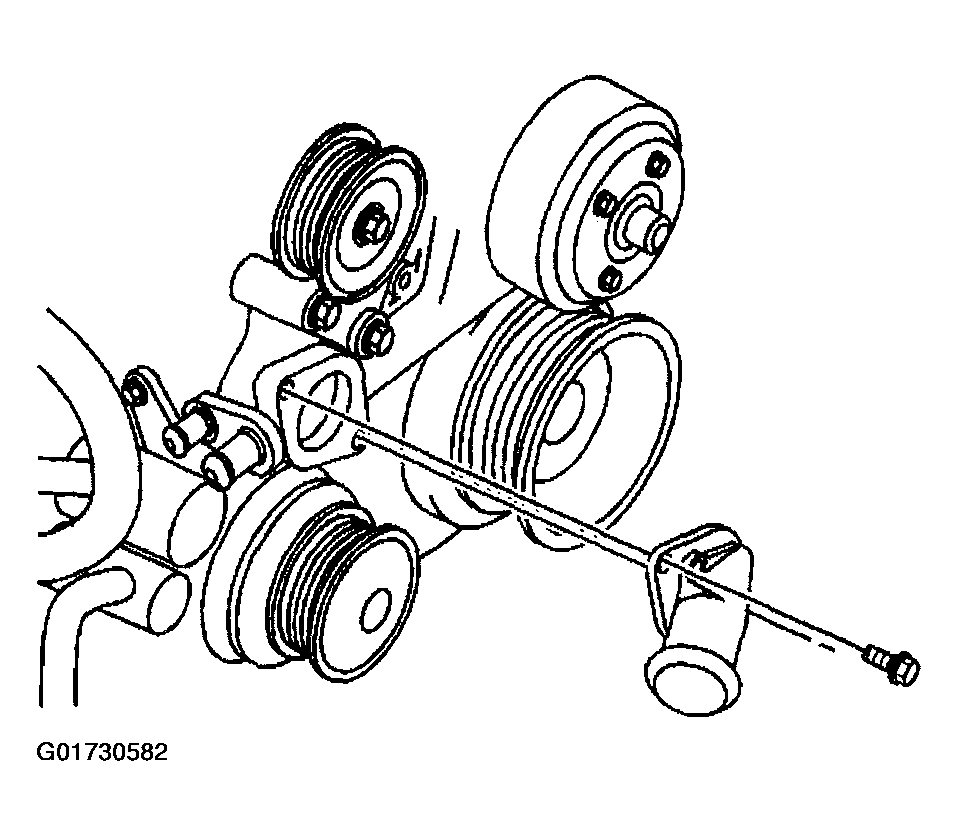

    Fig 2: Installing Water Pump Inlet And Bolts
    G01730582Courtesy of GENERAL MOTORS CORP.
  4. Install the radiator outlet hose to the water pump inlet.
    Fig 3: Installing Radiator Outlet Hose
    G01730583Courtesy of GENERAL MOTORS CORP.
  5. Position the radiator outlet hose clamp at the water pump.
  6. Add coolant.
