Installation Procedure

  1. Install the engine coolant thermostat (3).
  2. Install the water outlet. Refer to Thermostat Housing Replacement (3.8L Engine) .

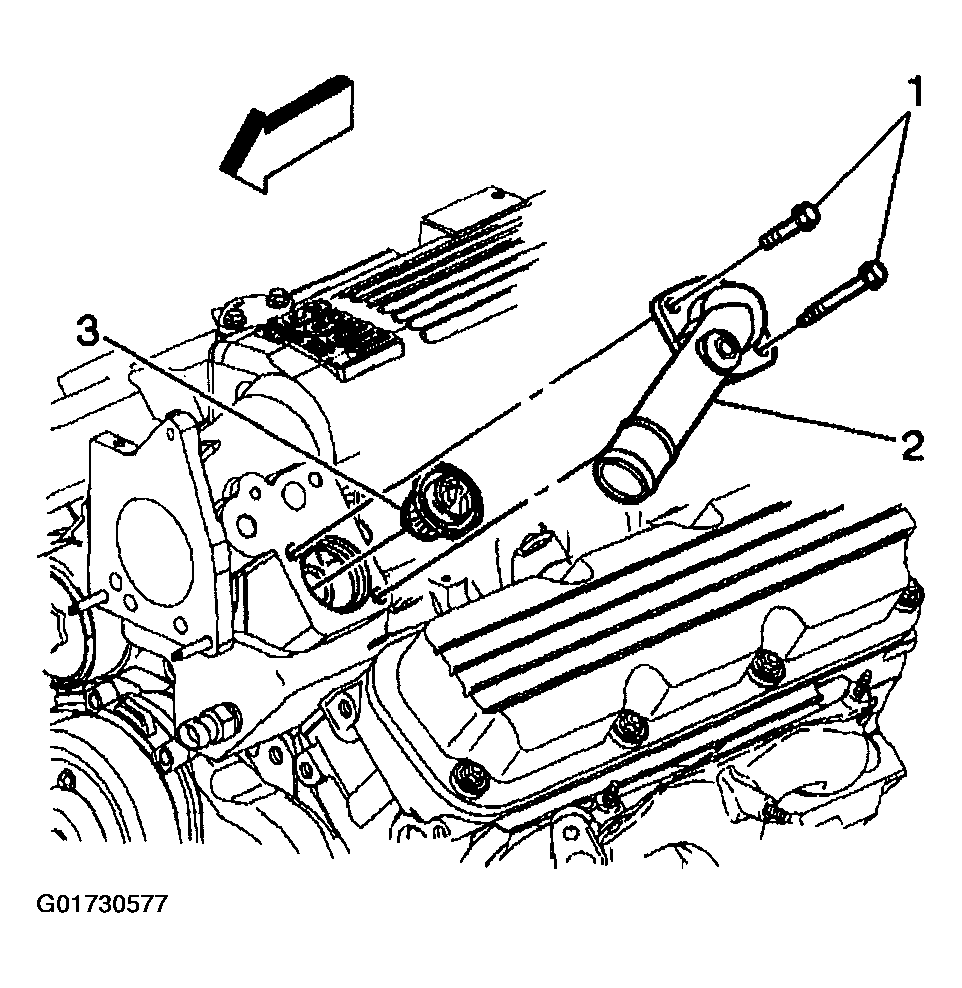

    Fig 1: Installing Engine Coolant Thermostat
    G01730577Courtesy of GENERAL MOTORS CORP.
