Removal Procedure

  1. Open the radiator drain cock.
  2. Partially drain the radiator.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Close the radiator drain cock.

    Tighten

    Tighten the radiator drain cock to 2 N.m (18 lb in).

  4. Disconnect the exhaust gas recirculation (EGR) valve electrical connector.

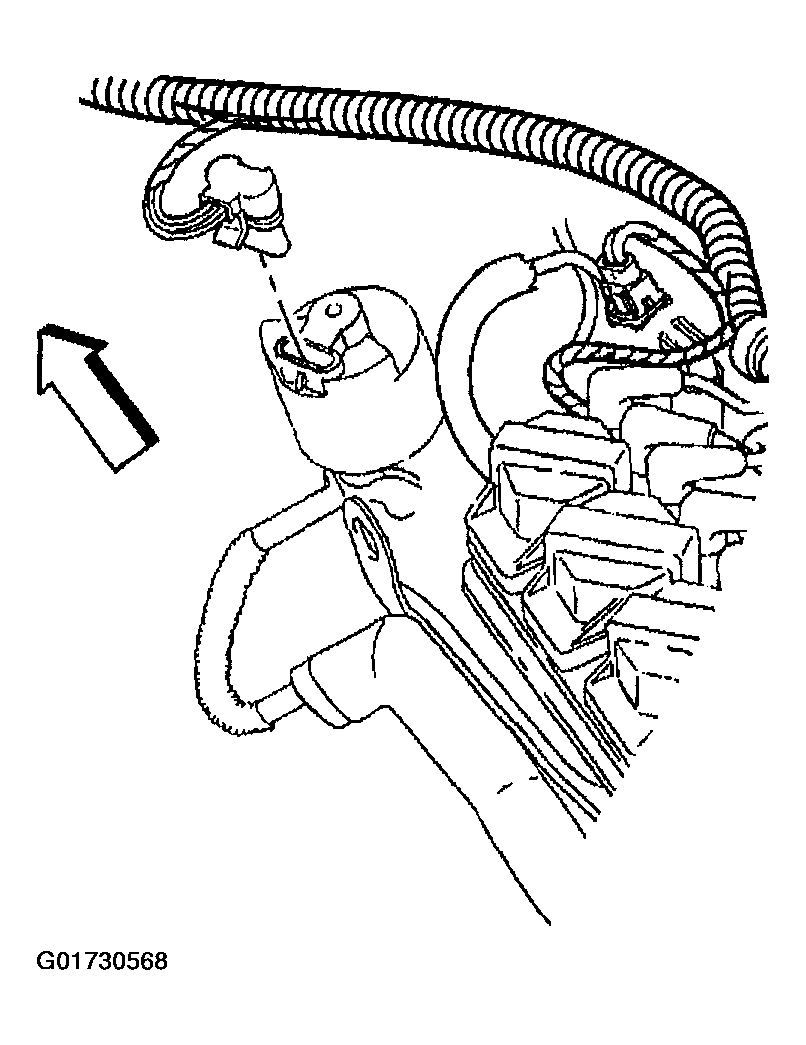

    Fig 1: Disconnect Exhaust Gas Recirculation (EGR) Valve Electrical Connector
    G01730568Courtesy of GENERAL MOTORS CORP.
  5. Remove the EGR valve outlet pipe bolt from the upper intake manifold.
  6. Remove the EGR valve outlet pipe nut from the EGR valve adapter.
  7. Remove the EGR valve pipe.

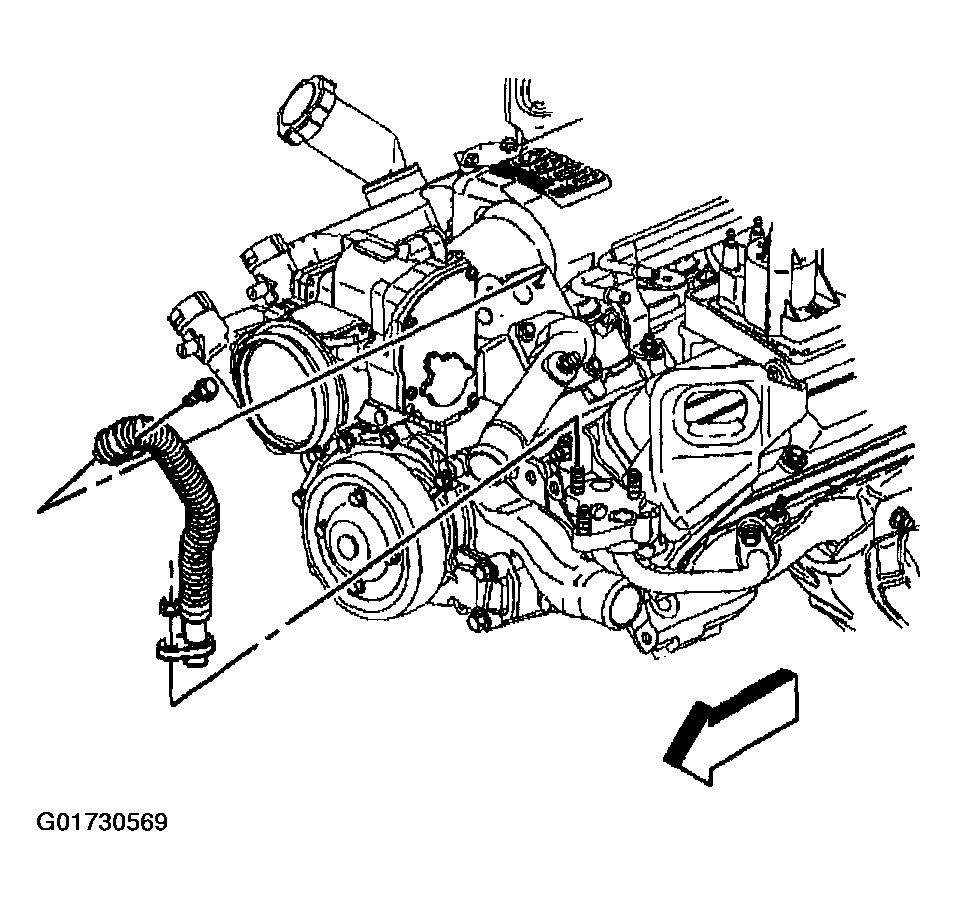

    Fig 2: Remove EGR Valve Pipe
    G01730569Courtesy of GENERAL MOTORS CORP.
  8. Reposition the inlet hose clamp at the water outlet.
  9. Remove the inlet hose from the water outlet.

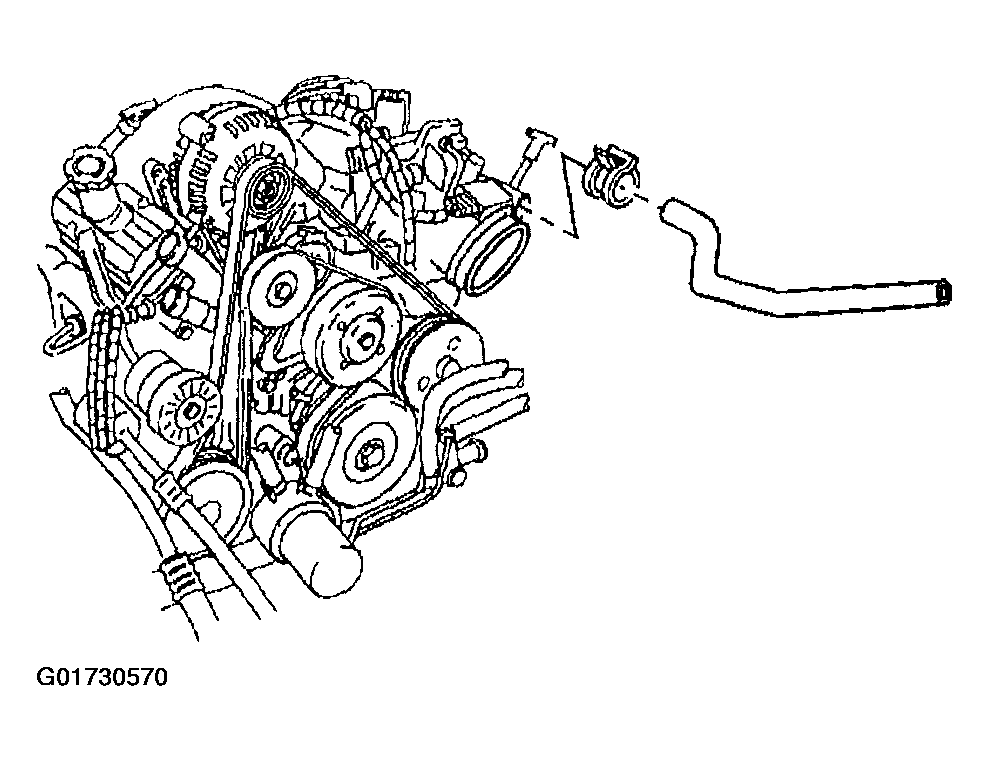

    Fig 3: Removing Inlet Hose From Water Outlet
    G01730570Courtesy of GENERAL MOTORS CORP.
  10. Remove the water outlet bolts (1).
  11. Remove the water outlet (2).

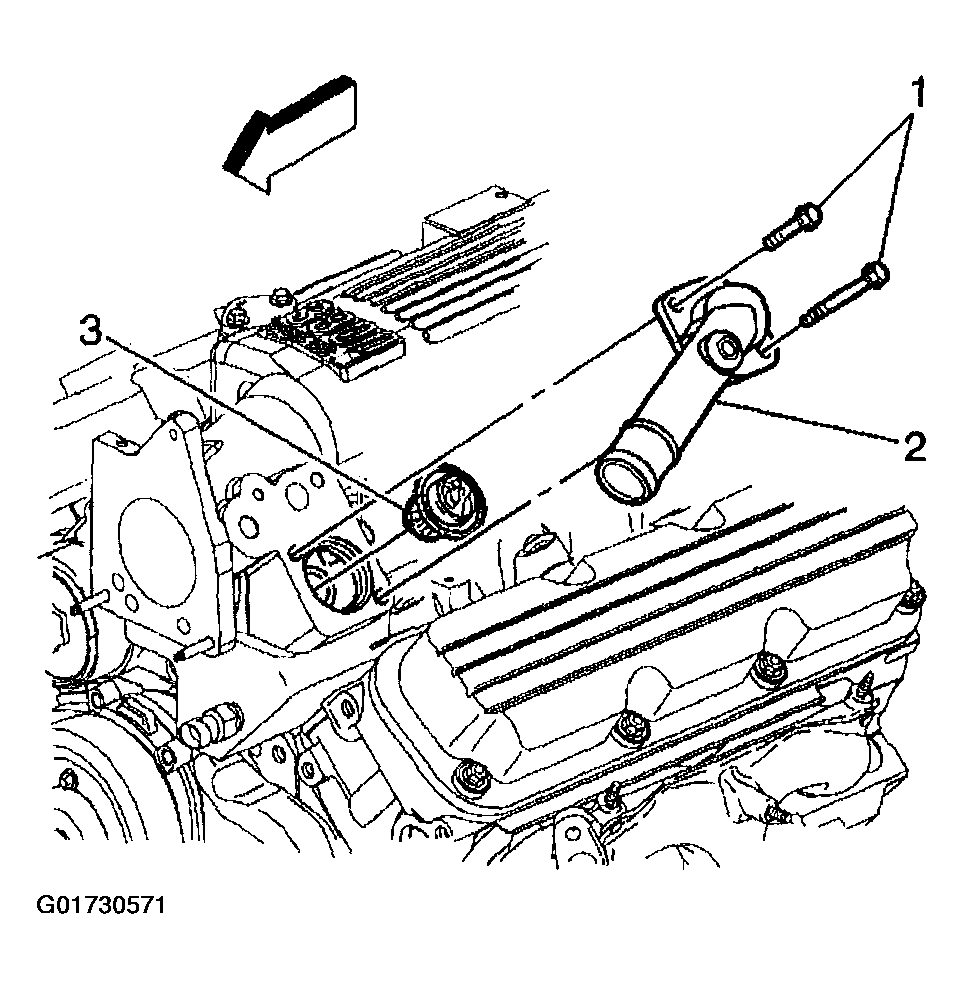

    Fig 4: Remove Water Outlet Bolts
    G01730571Courtesy of GENERAL MOTORS CORP.
