Removal Procedure

  1. Remove the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT .
  2. Remove the thermostat bypass upper (1) and/or lower (2) pipe.

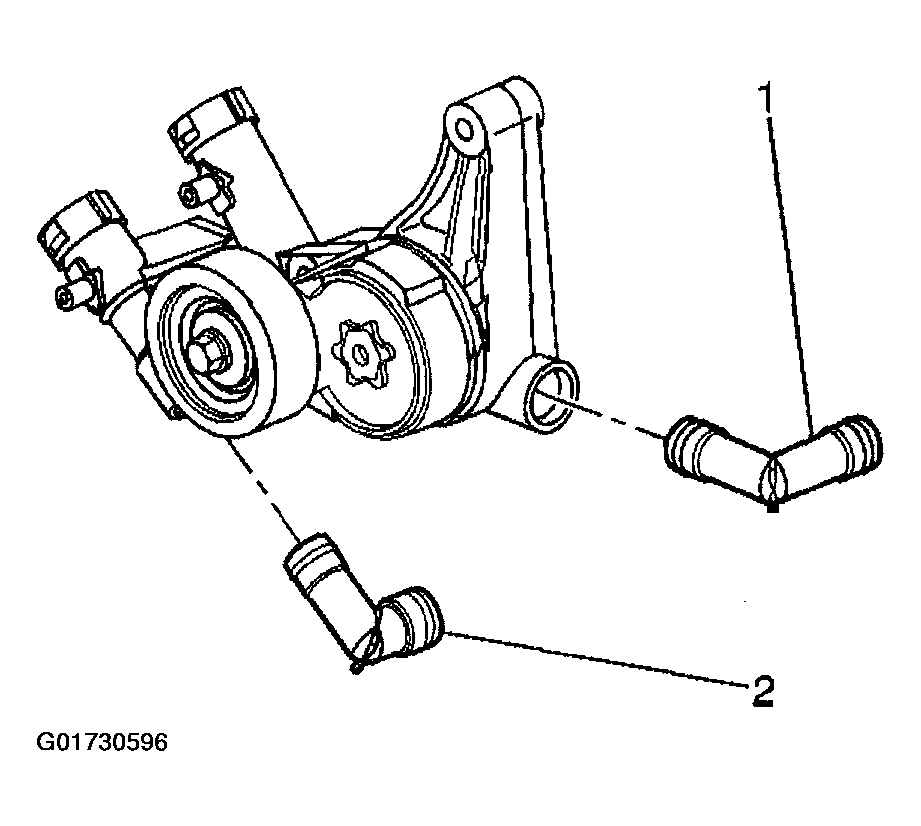

    Fig 1: Removing Thermostat Bypass Upper And/Or Lower Pipe
    G01730596Courtesy of GENERAL MOTORS CORP.
