Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Disconnect the following electrical connectors:
    • Intake air temperature sensor
    • Mass airflow sensor
      Fig 1: Disconnecting Following Electrical Connectors
      G01730552Courtesy of GENERAL MOTORS CORP.
  3. Remove the air cleaner outlet duct.

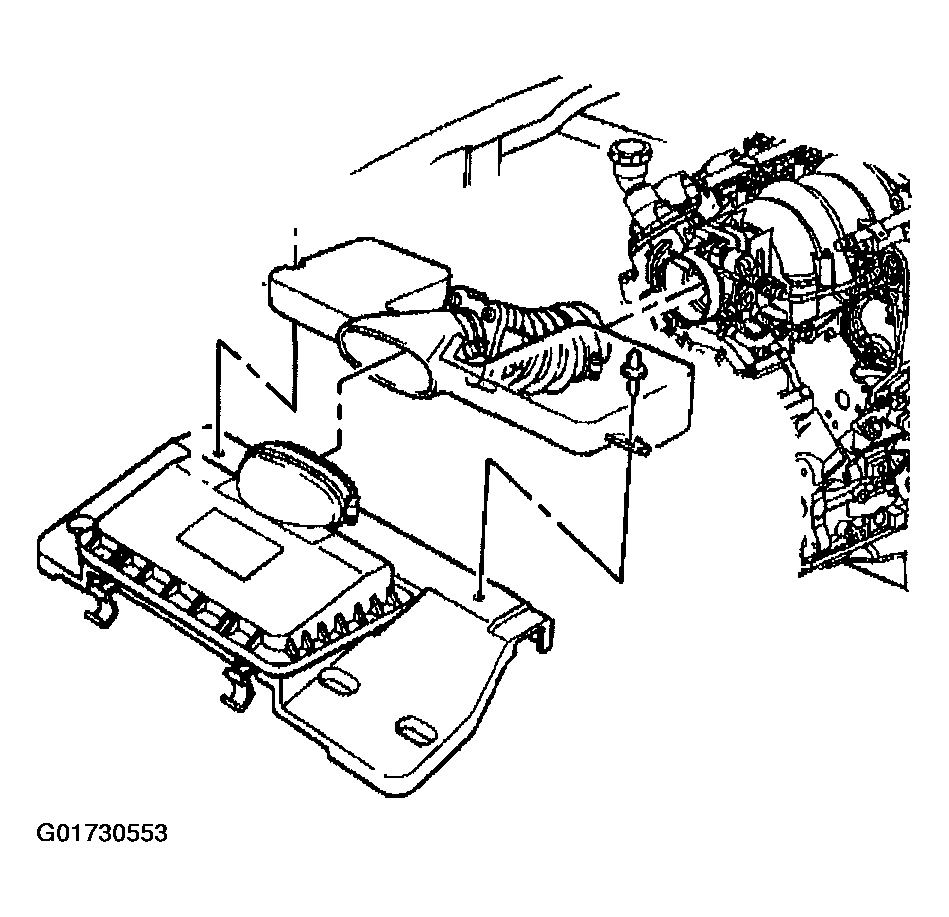

    Fig 2: Removing Air Cleaner Outlet Duct
    G01730553Courtesy of GENERAL MOTORS CORP.
  4. Reposition the radiator outlet hose clamp from the water outlet.
    Fig 3: Repositioning Radiator Outlet Hose Clamp
    G01730554Courtesy of GENERAL MOTORS CORP.
  5. Remove the radiator outlet hose from the water outlet.
  6. Raise and support the vehicle.
  7. Reposition the radiator outlet hose clamp from the radiator.
  8. Remove the radiator outlet hose (2) from the radiator.

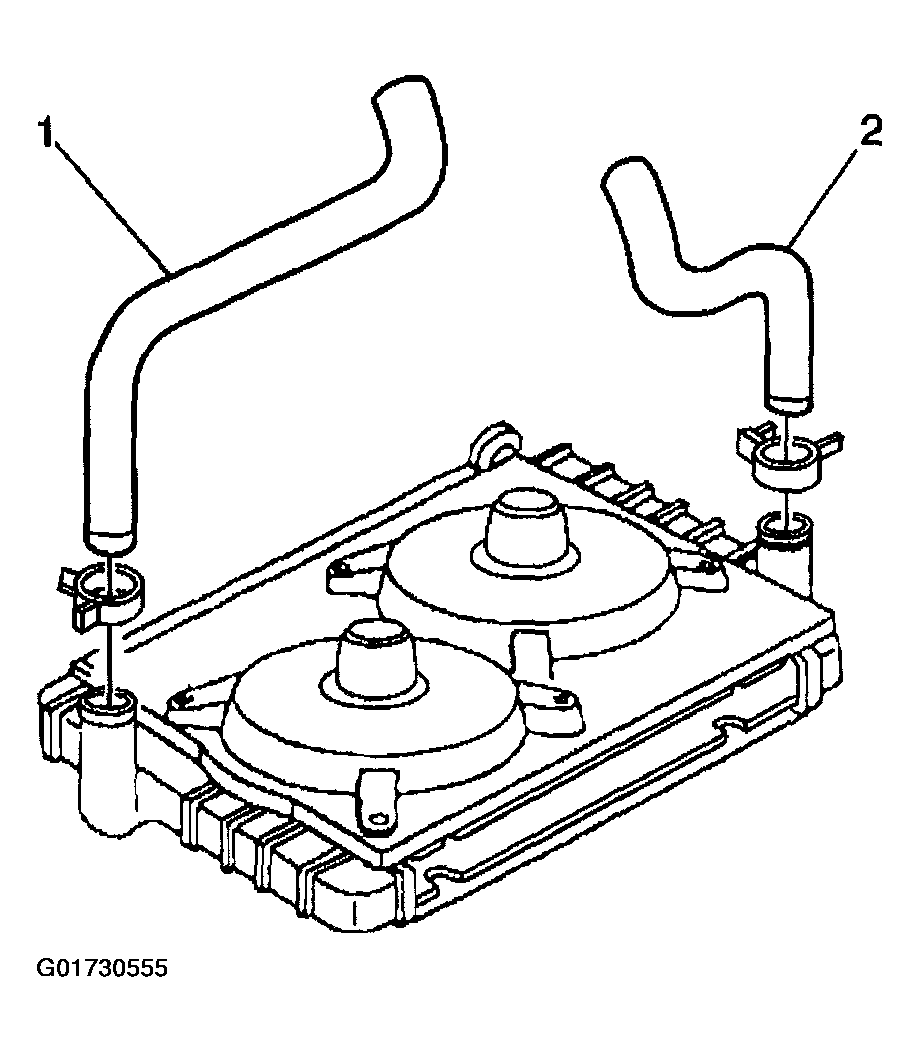

    Fig 4: Removing Radiator Outlet Hose
    G01730555Courtesy of GENERAL MOTORS CORP.
