Installation Procedure

  1. Install the radiator outlet hose (2) to the radiator.
  2. Reposition the radiator outlet hose clamp to the radiator.
  3. Lower the vehicle.

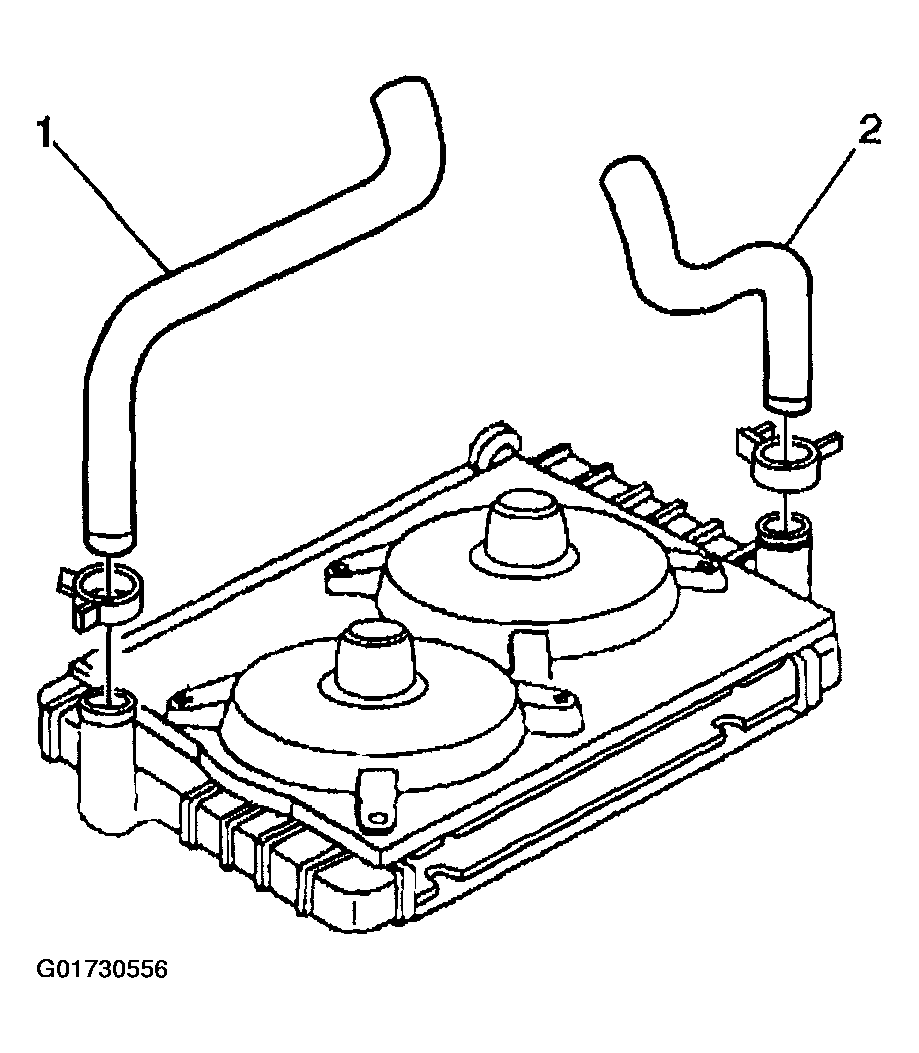

    Fig 1: Installing Radiator Outlet Hose
    G01730556Courtesy of GENERAL MOTORS CORP.
  4. Install the radiator outlet hose to the water outlet.
  5. Reposition the radiator outlet hose clamp to the water outlet.
    Fig 2: Installing Radiator Outlet Hose
    G01730557Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner outlet duct.

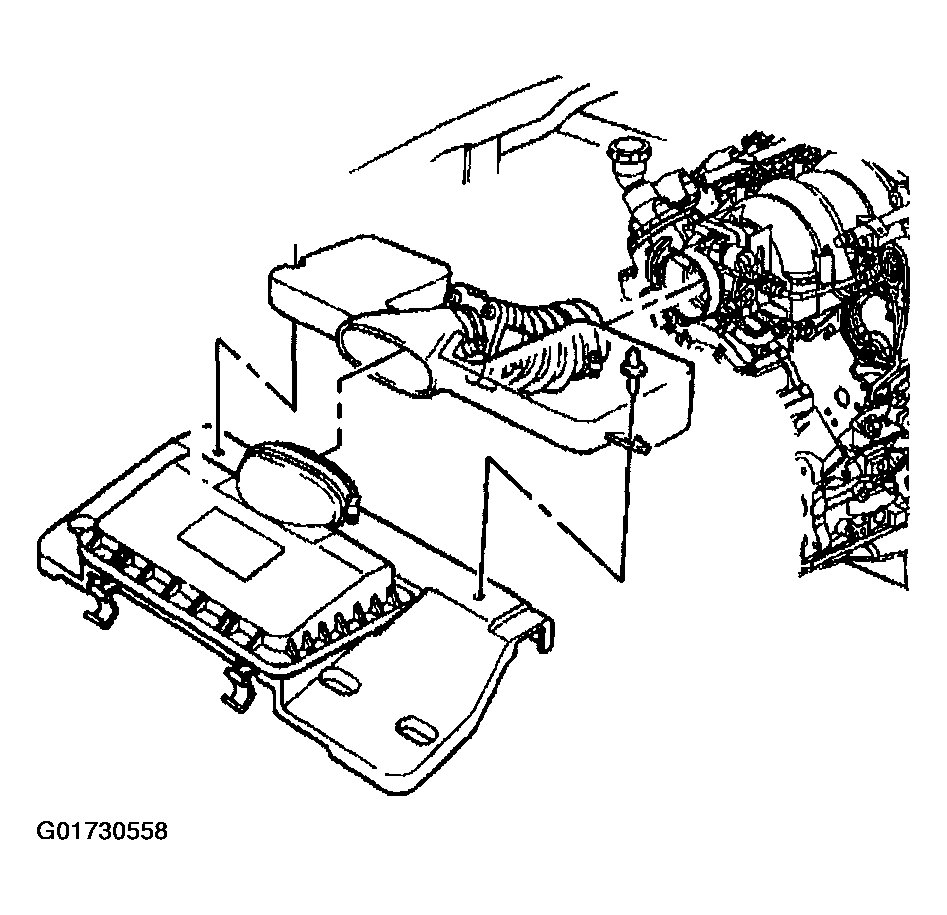

    Fig 3: Installing Air Cleaner Outlet Duct
    G01730558Courtesy of GENERAL MOTORS CORP.
  7. Connect the following electrical connectors:
    • Intake air temperature sensor
    • Mass air flow sensor

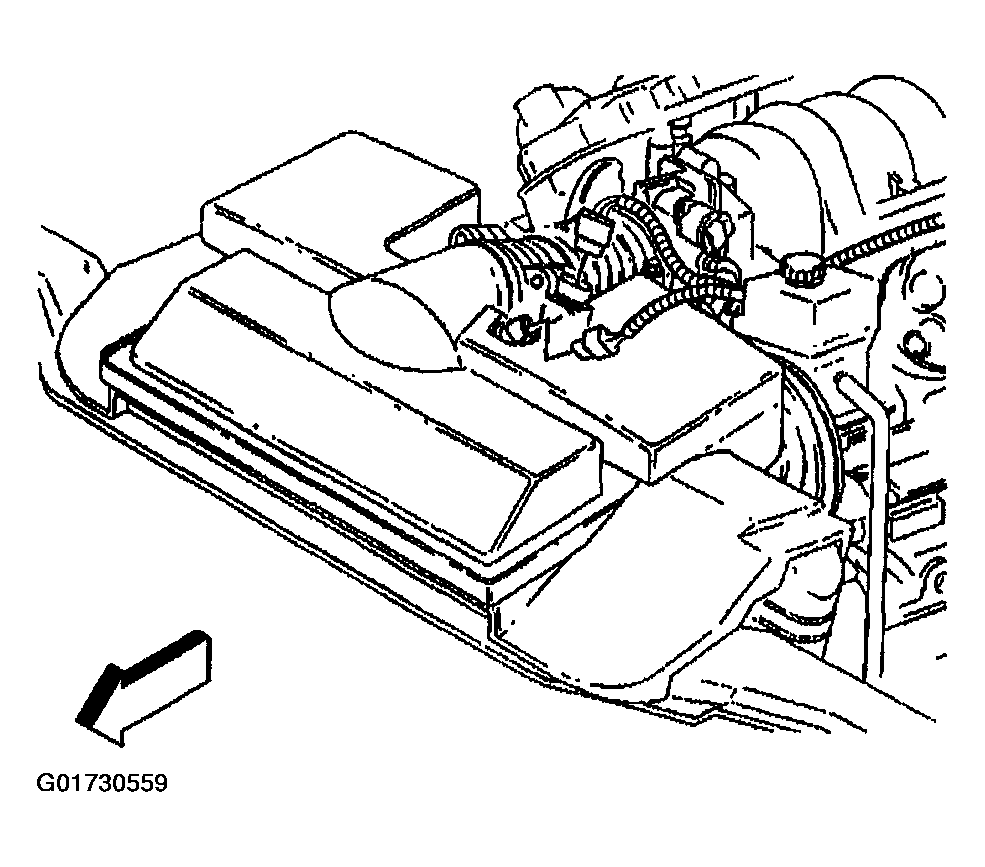

    Fig 4: Connecting Following Electrical Connectors
    G01730559Courtesy of GENERAL MOTORS CORP.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .
