Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Disconnect the intake air temperature sensor electrical connector.

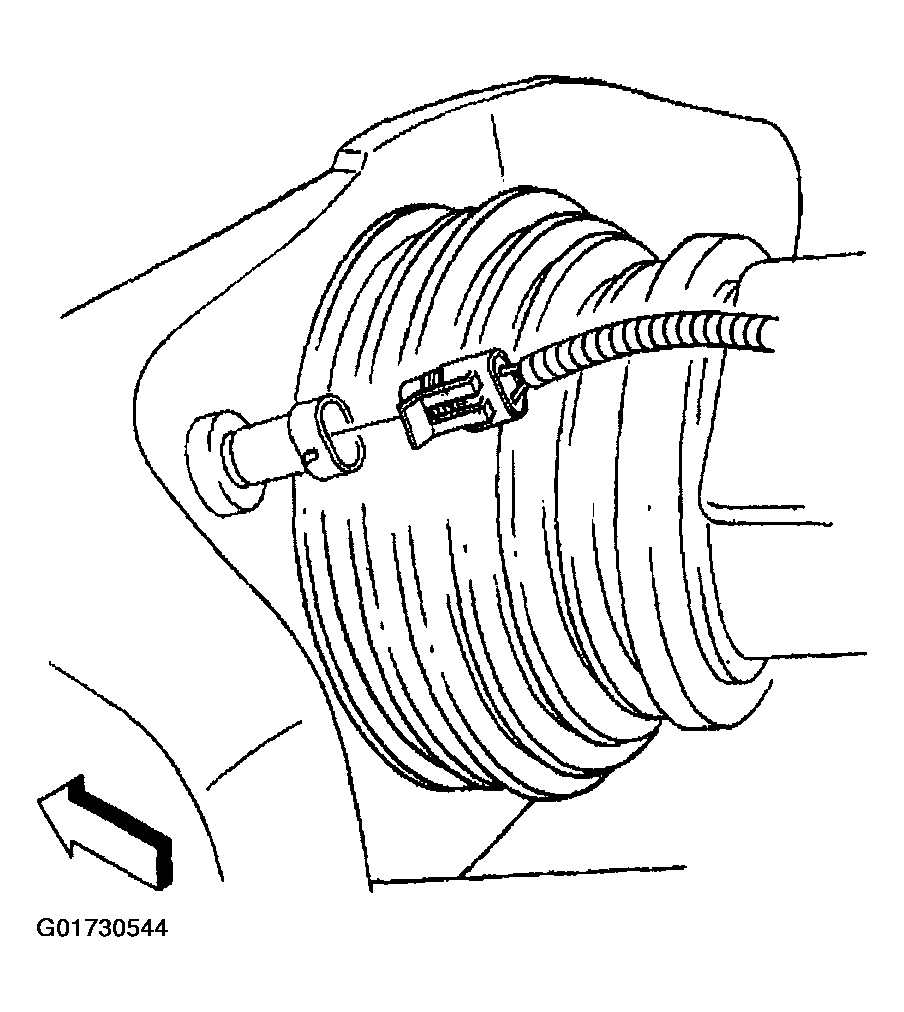

    Fig 1: Disconnecting Intake Air Temperature Sensor Electrical Connector
    G01730544Courtesy of GENERAL MOTORS CORP.
  3. Loosen the air duct clamp.
  4. Remove the intake air duct resonator.

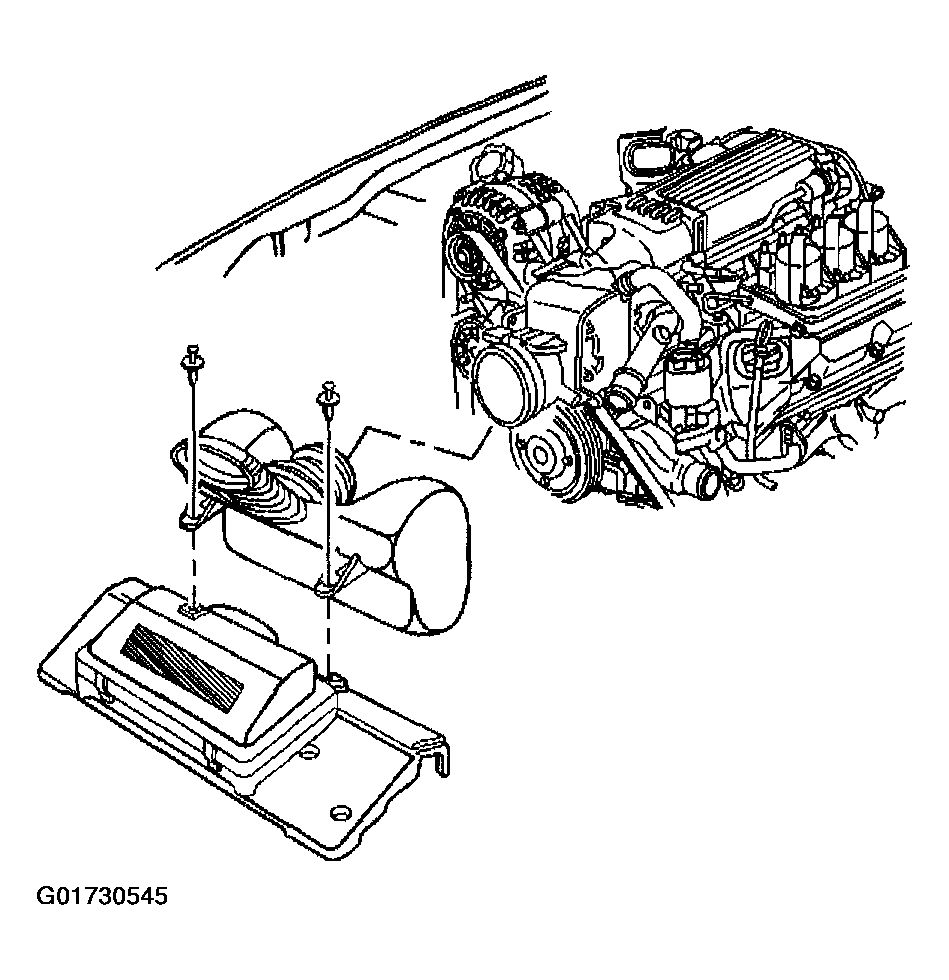

    Fig 2: Removing Intake Air Duct Resonator
    G01730545Courtesy of GENERAL MOTORS CORP.
  5. Reposition the radiator outlet hose clamp from the water pump.
  6. Remove the radiator outlet hose from the water pump.

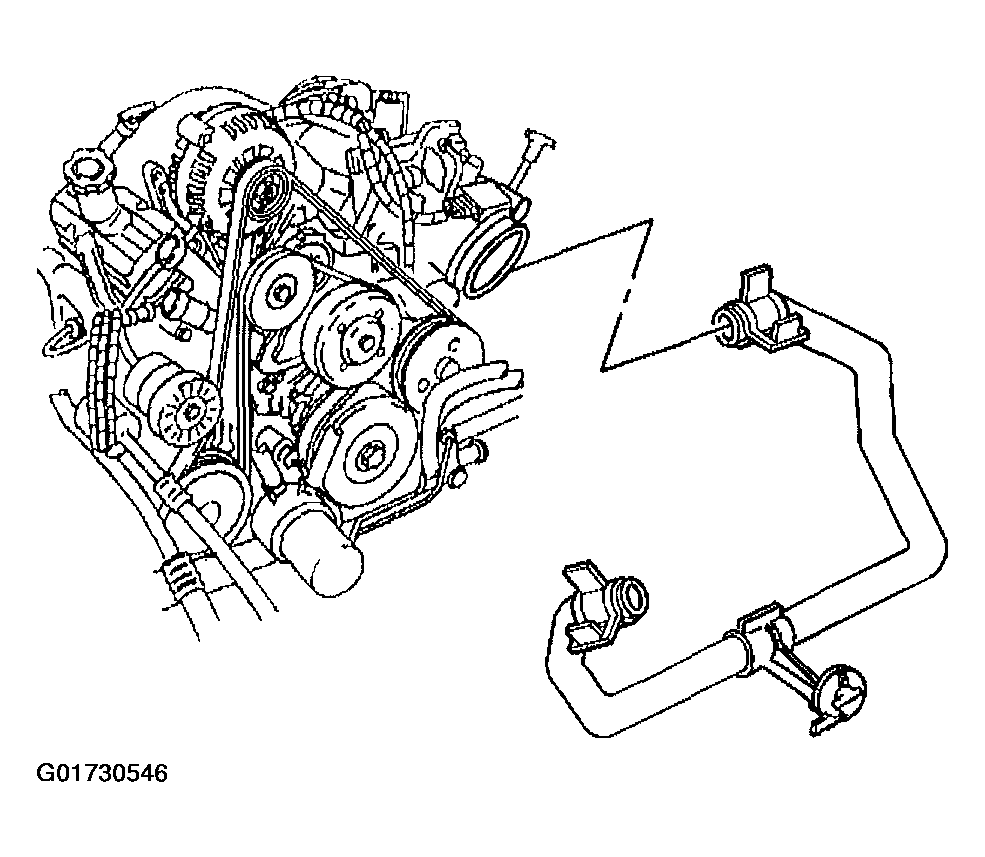

    Fig 3: Removing Radiator Outlet Hose
    G01730546Courtesy of GENERAL MOTORS CORP.
  7. Raise and suitably support the vehicle.
  8. Reposition the radiator outlet hose clamp from the radiator.
  9. Remove the radiator outlet hose (2) from the radiator.

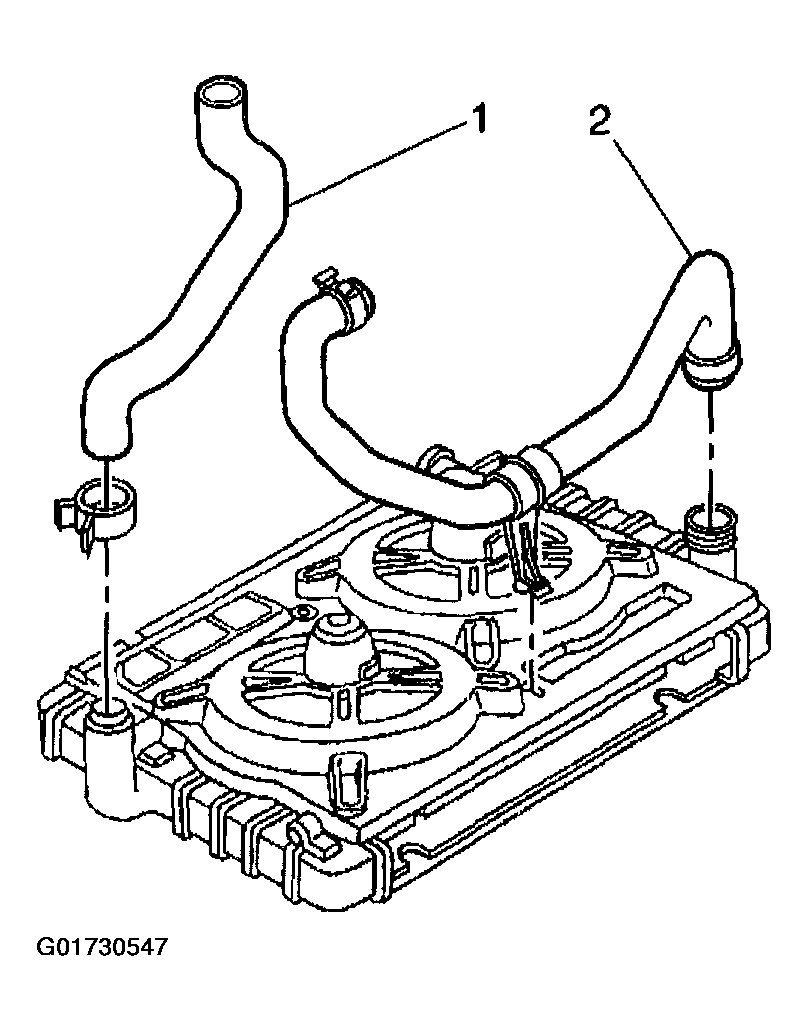

    Fig 4: Removing Radiator Outlet Hose
    G01730547Courtesy of GENERAL MOTORS CORP.
  10. Remove the radiator outlet hose support from the fan shroud.
