Installation Procedure

  1. Install the radiator outlet hose support to the fan shroud.
  2. Install the radiator outlet hose (2) to the radiator.

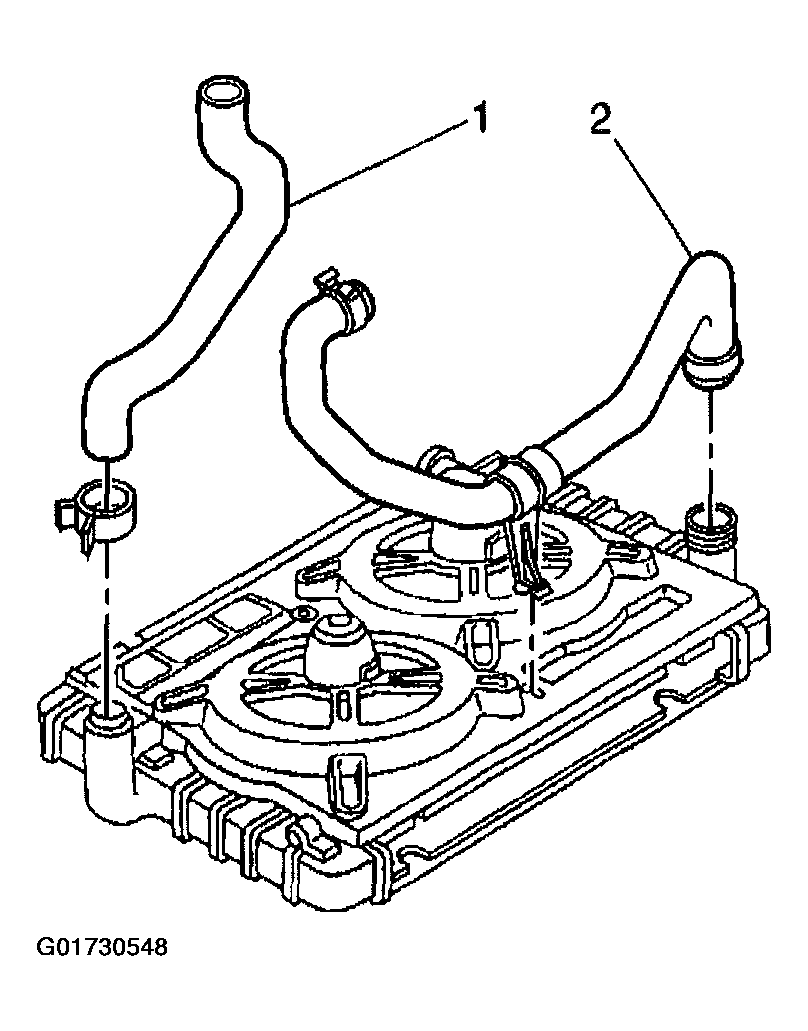

    Fig 1: Installing Radiator Outlet Hose
    G01730548Courtesy of GENERAL MOTORS CORP.
  3. Reposition the radiator outlet hose clamp to the radiator.
  4. Lower the vehicle.
  5. Install the radiator outlet hose to the water pump.

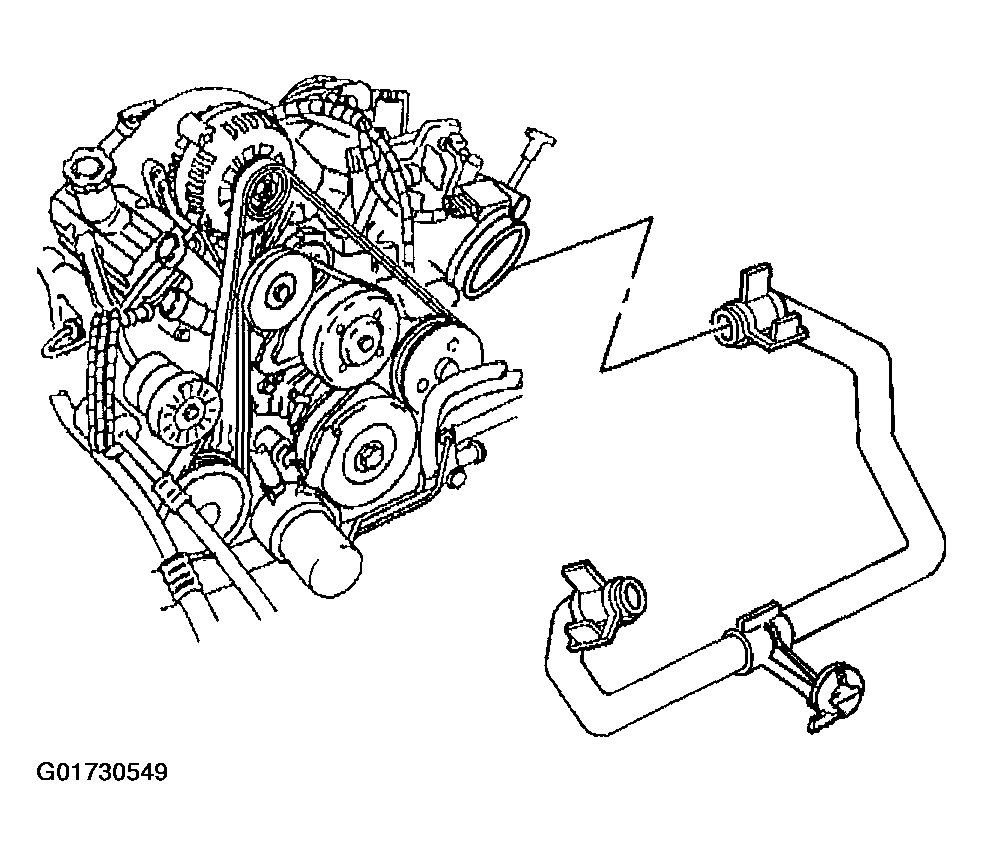

    Fig 2: Installing Radiator Outlet Hose
    G01730549Courtesy of GENERAL MOTORS CORP.
  6. Position the radiator outlet hose to the water pump.
  7. Install the intake air duct resonator.
  8. Tighten the air duct clamp.

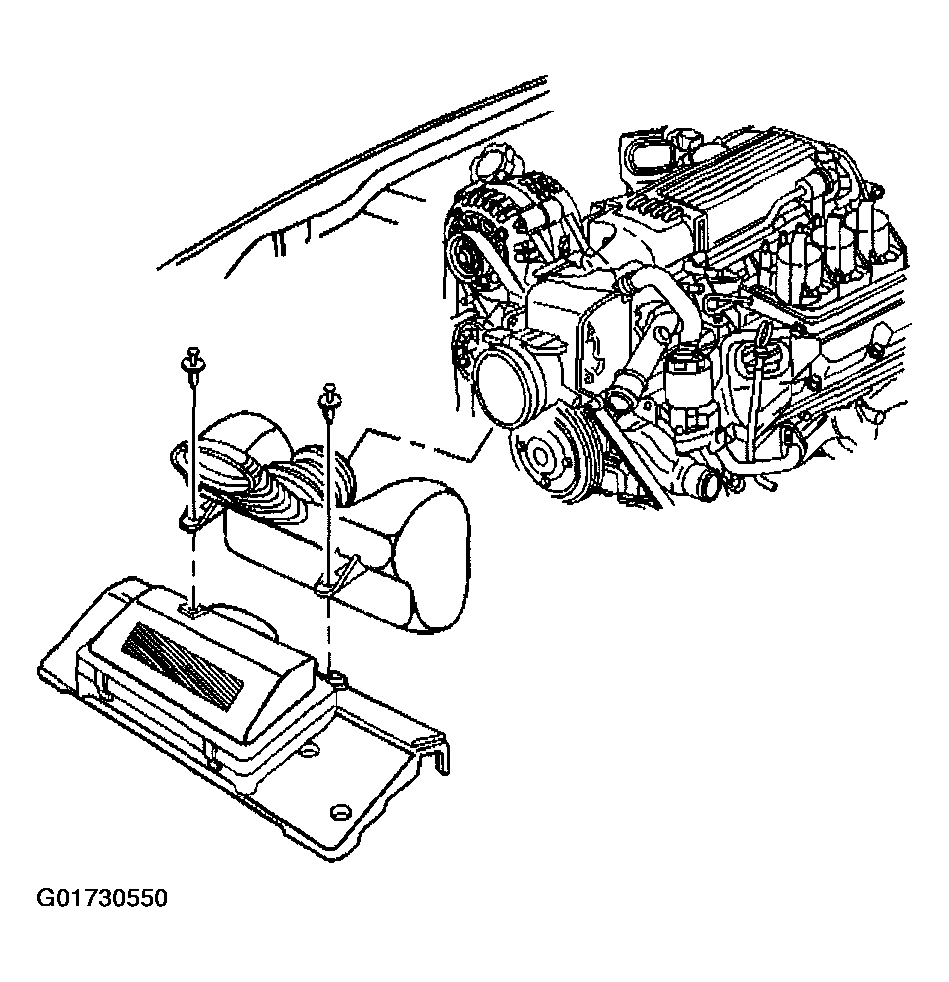

    Fig 3: Installing Intake Air Duct Resonator
    G01730550Courtesy of GENERAL MOTORS CORP.
  9. Connect the intake air temperature sensor electrical connector.
  10. Connect the mass air flow electrical connector.
  11. Fill the cooling system. Refer to Draining and Filling Cooling System .

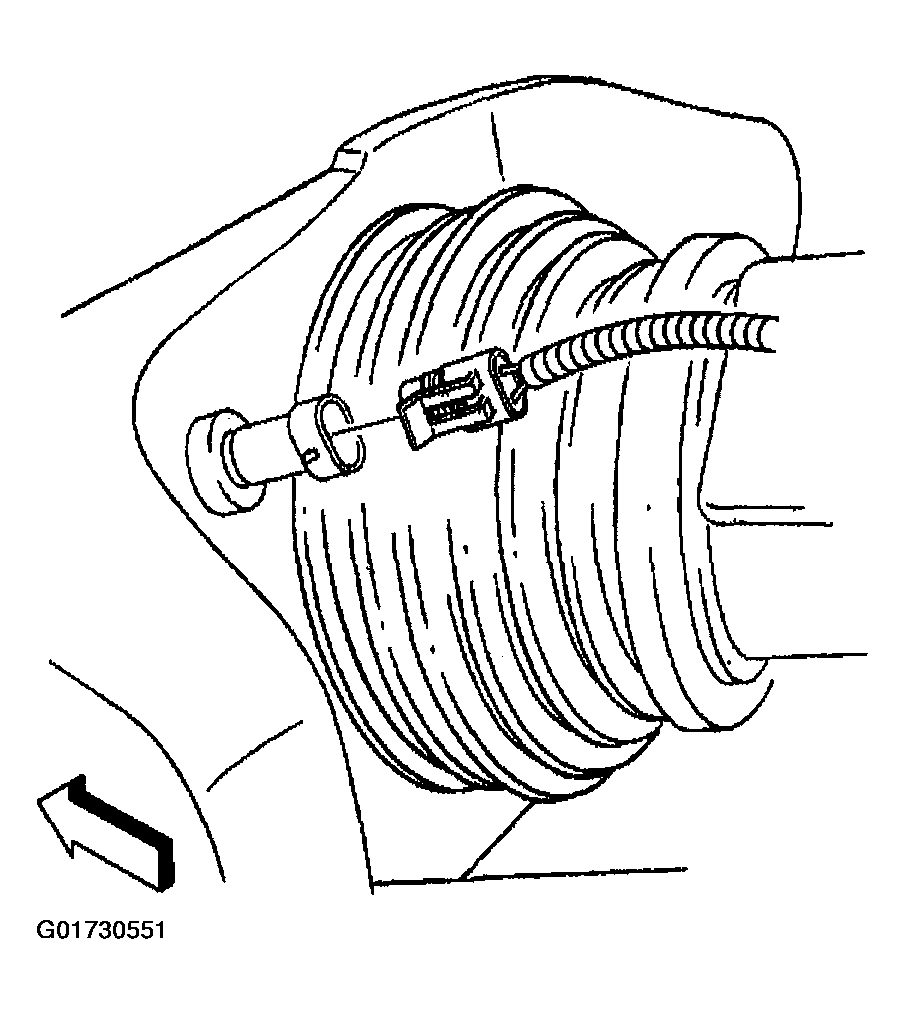

    Fig 4: Connecting Mass Air Flow Electrical Connector
    G01730551Courtesy of GENERAL MOTORS CORP.
