Installation Procedure

Install the radiator inlet hose to the water pump.
Reposition the radiator inlet hose clamp to the water pump.

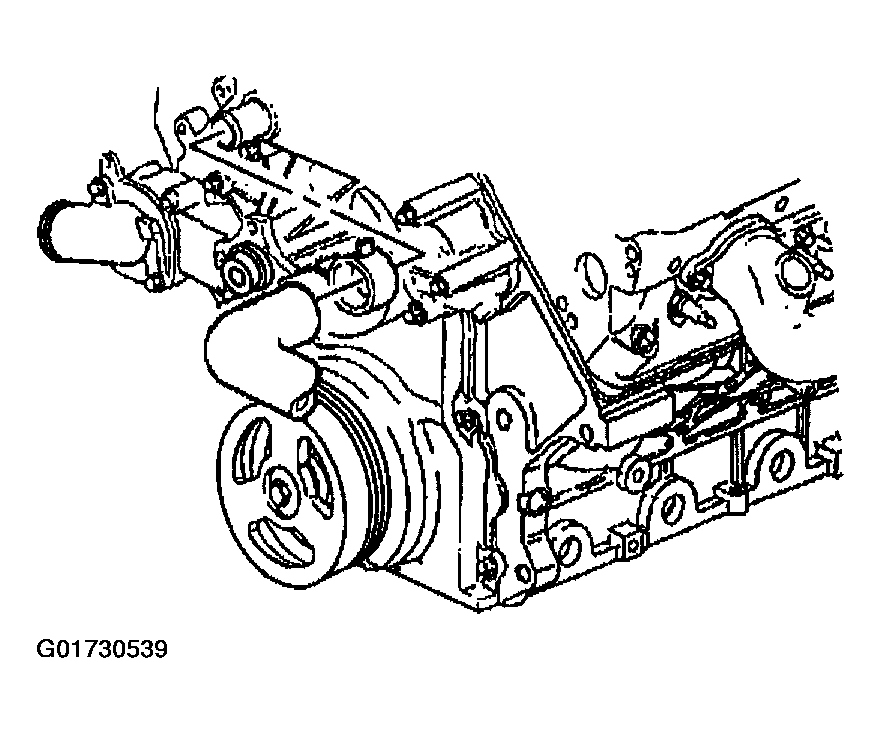

Fig 1: Installing Radiator Inlet Hose To The Water Pump
Courtesy of GENERAL MOTORS CORP.
Install the inlet hoses to the power steering cooler, if equipped.
Reposition the radiator inlet hose clamps at the power steering cooler, if equipped.

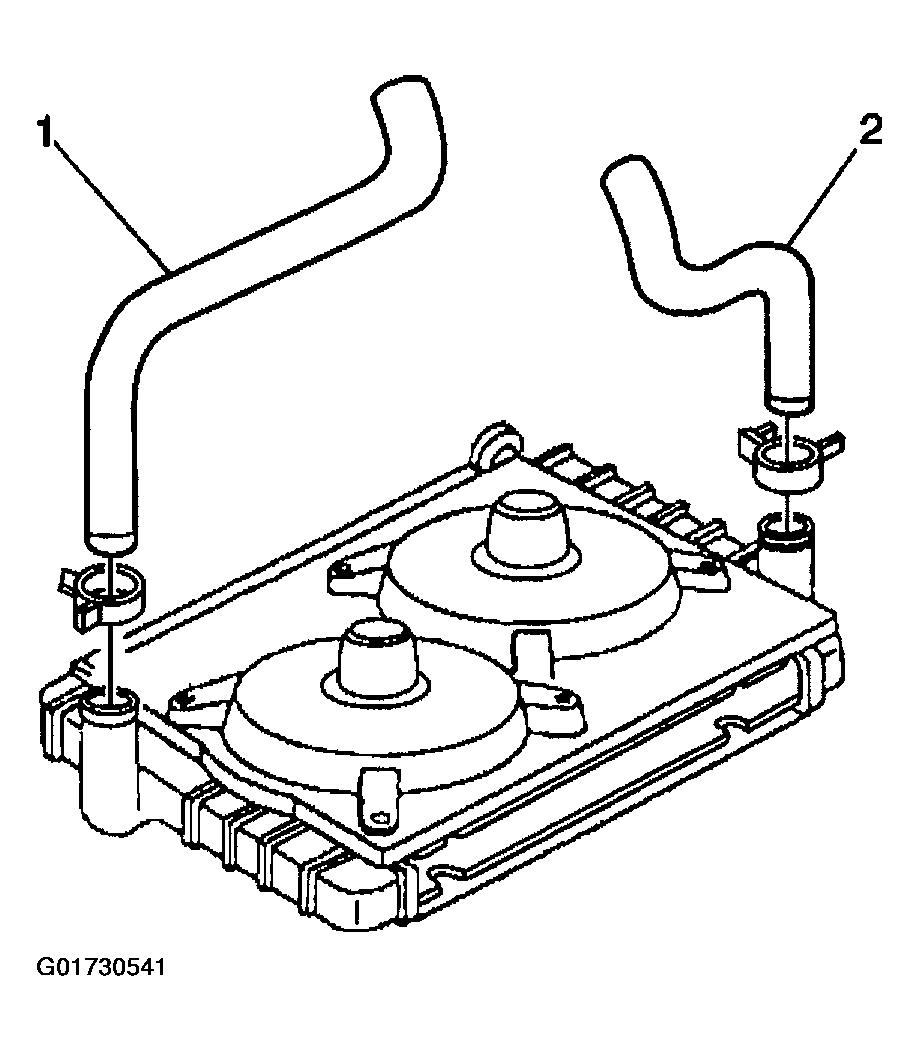

Fig 2: Installing Inlet Hoses To The Power Steering Cooler
Courtesy of GENERAL MOTORS CORP.
Install the radiator inlet hose (1) to the radiator.
Reposition the inlet hose clamp to the radiator.

Fig 3: Installing Radiator Inlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
Install the air cleaner outlet duct.

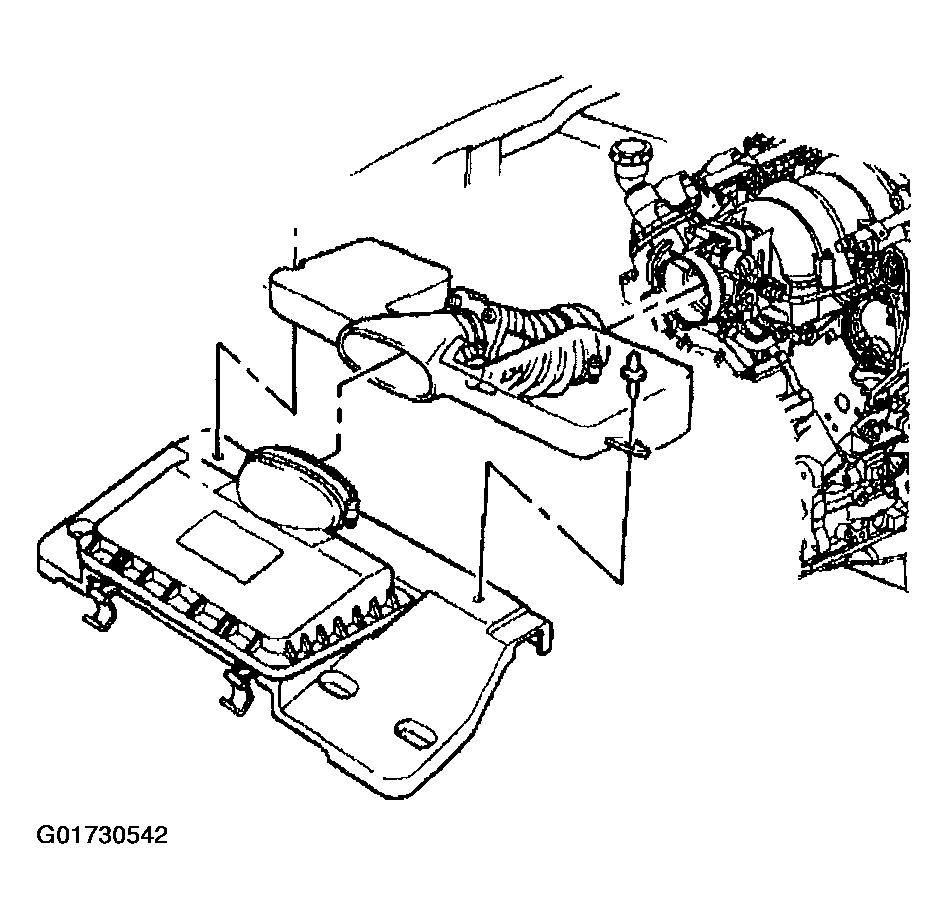

Fig 4: Installing Air Cleaner Outlet Duct
Courtesy of GENERAL MOTORS CORP.
Connect the following electrical connectors:
- Intake air temperature sensor
- Mass air flow sensor

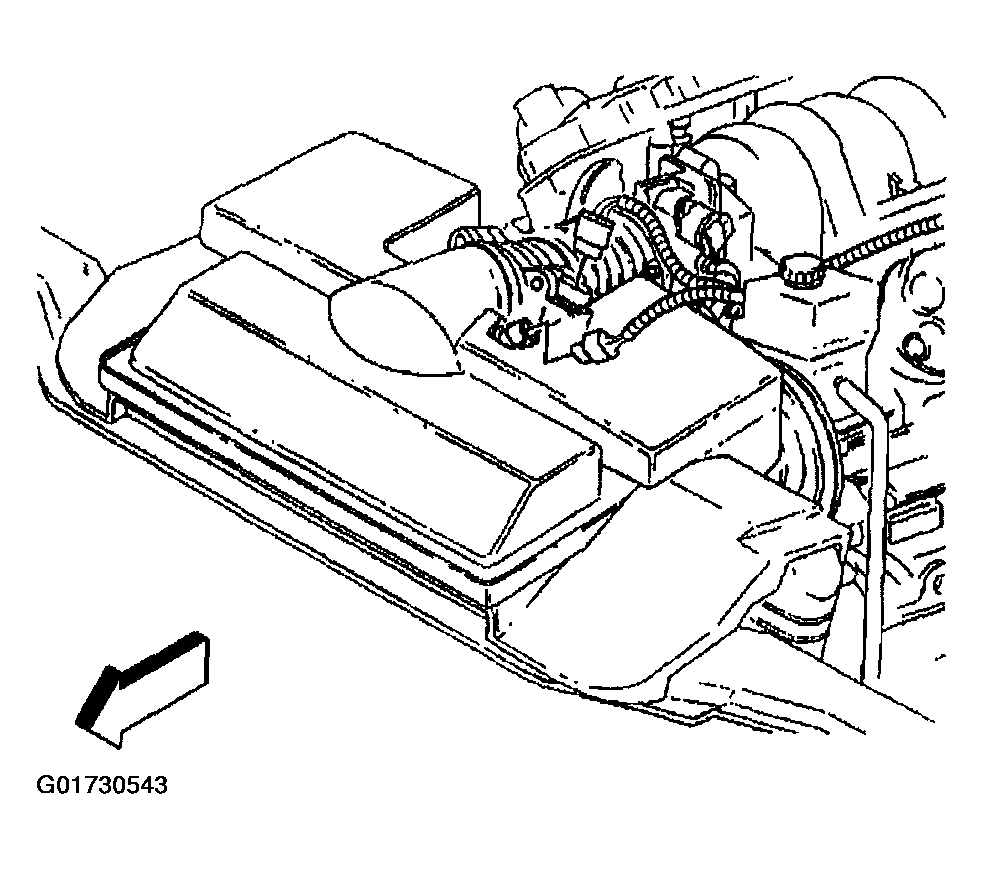

  Fig 5: Connecting Following Electrical Connectors
  Courtesy of GENERAL MOTORS CORP.
Fill the cooling system. Refer to Draining and Filling Cooling System .
