Removal Procedure

  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Disconnect the intake air temperature sensor electrical connector.

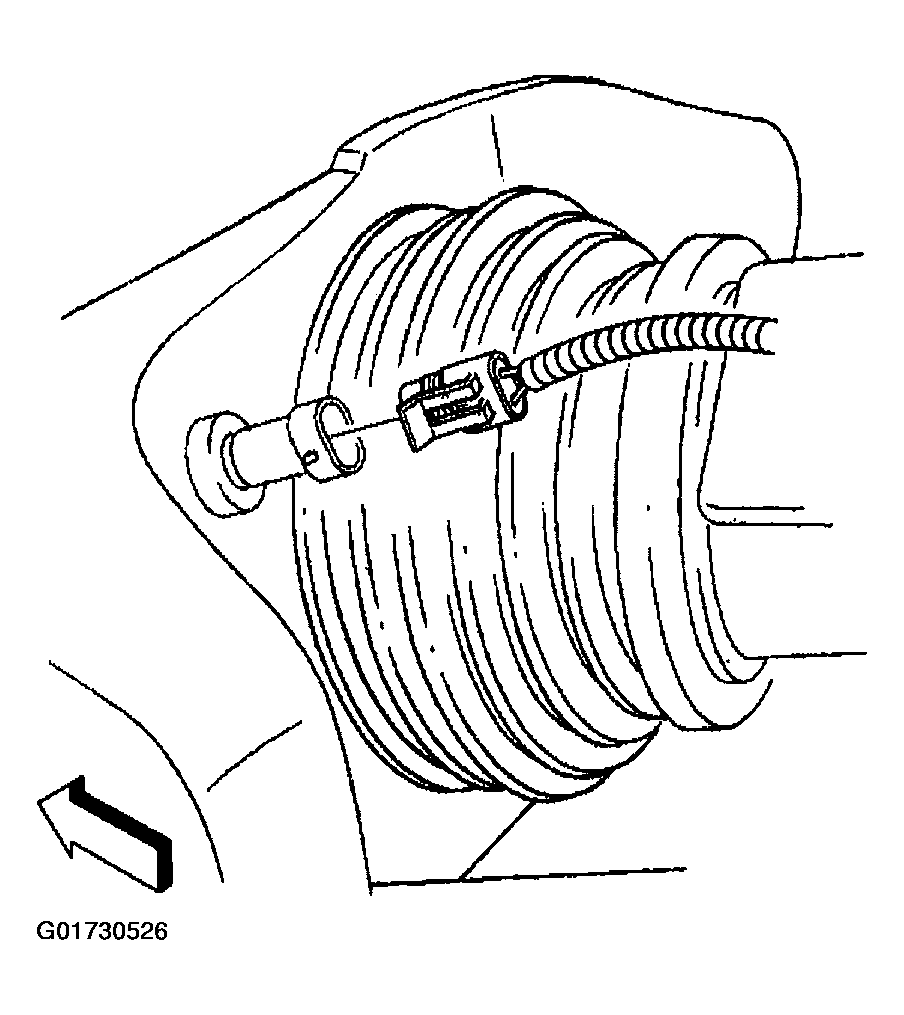

    Fig 1: Disconnecting Intake Air Temperature Sensor Electrical Connector
    G01730526Courtesy of GENERAL MOTORS CORP.
  3. Loosen the intake air duct clamp.
  4. Remove the intake air duct resonator.

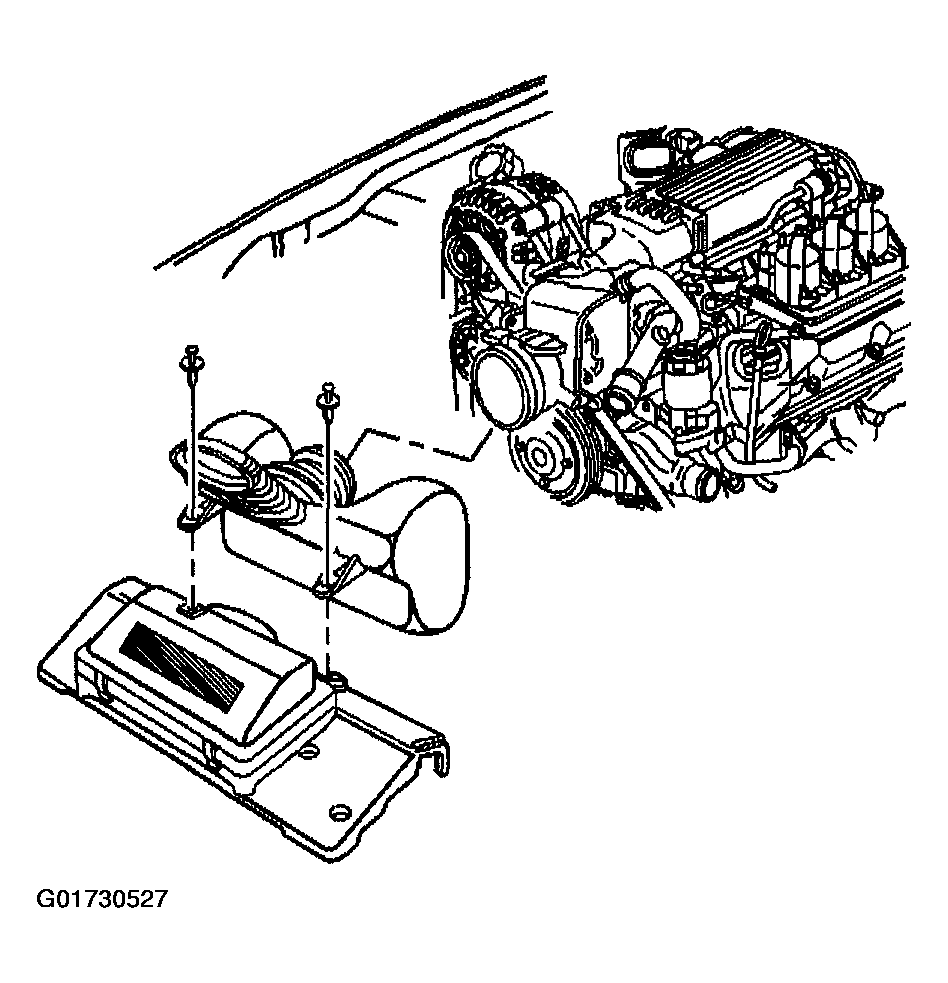

    Fig 2: Removing Intake Air Duct Resonator
    G01730527Courtesy of GENERAL MOTORS CORP.
  5. Reposition the radiator inlet hose clamp from the water outlet.
  6. Remove the radiator inlet hose from the water outlet.

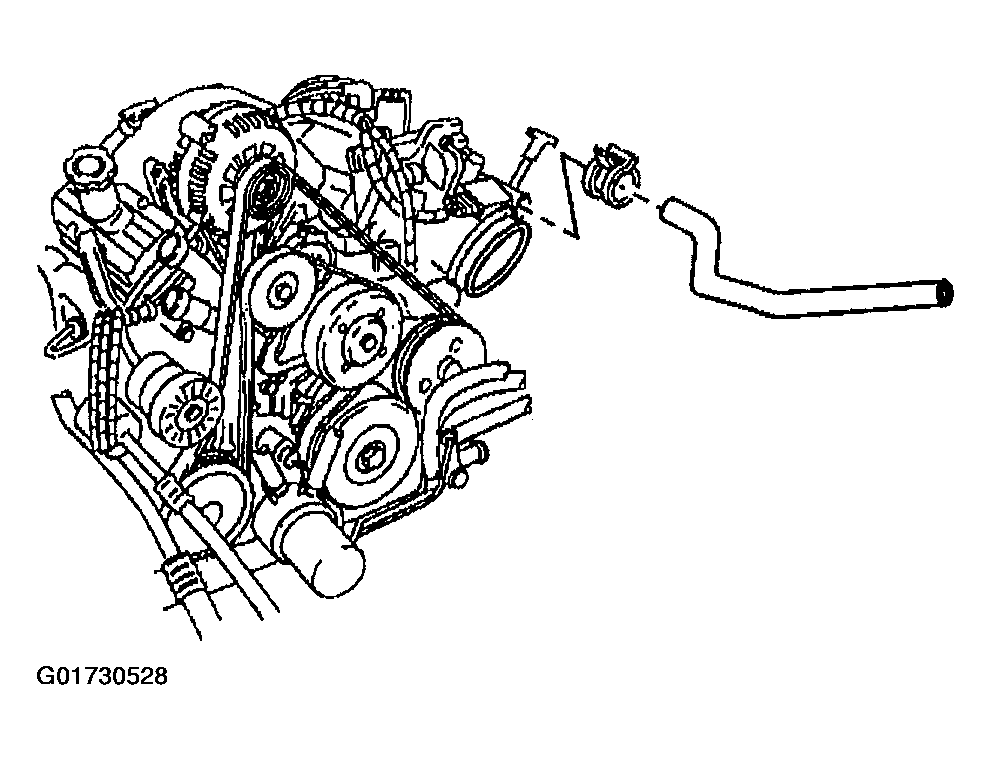

    Fig 3: Removing Radiator Inlet Hose From The Water Outlet
    G01730528Courtesy of GENERAL MOTORS CORP.
  7. Reposition the radiator inlet hose clamp from the radiator.
  8. Remove the radiator inlet hose (1) from the radiator.

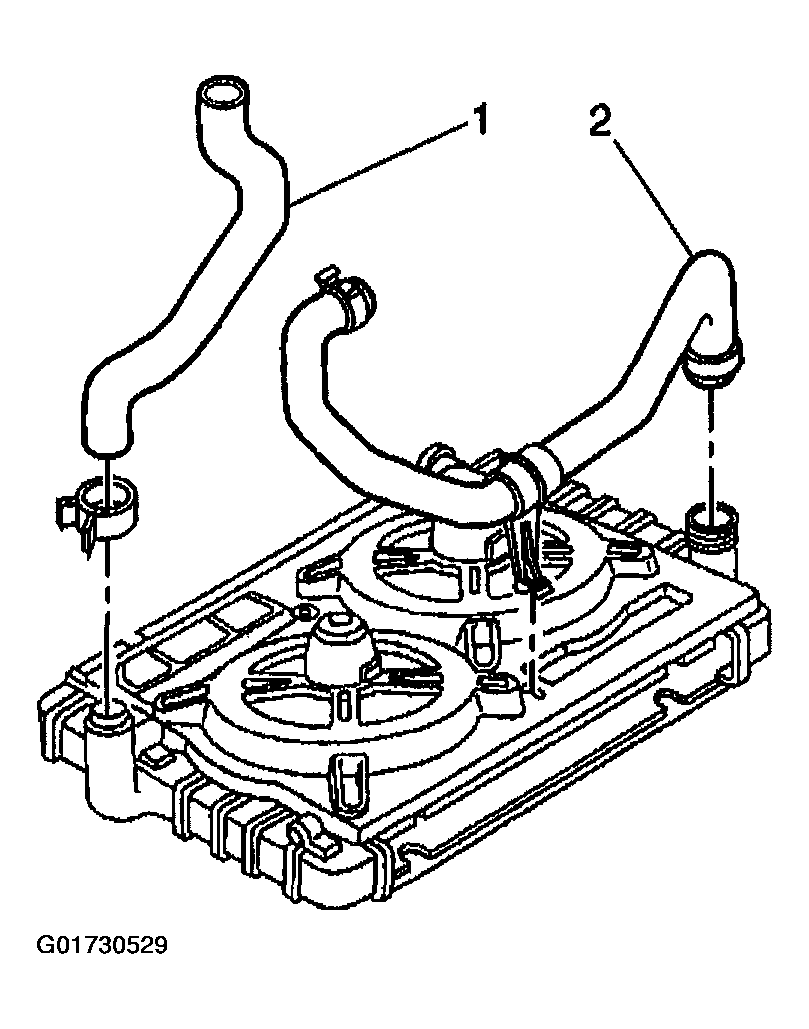

    Fig 4: Removing Radiator Inlet Hose
    G01730529Courtesy of GENERAL MOTORS CORP.
