Installation Procedure

  1. Install the radiator inlet hose (1) to the radiator.
  2. Reposition the radiator inlet hose clamp to the radiator.

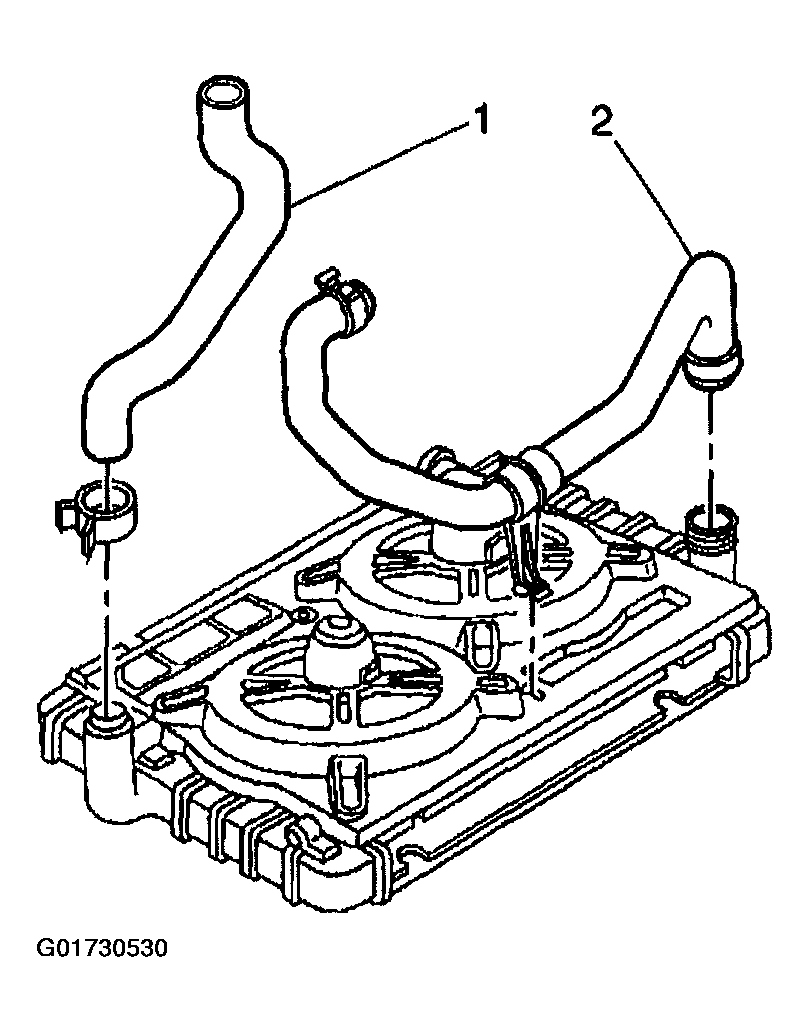

    Fig 1: Installing Radiator Inlet Hose
    G01730530Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose to the water outlet.
  4. Reposition the radiator inlet hose clamp to the water outlet.

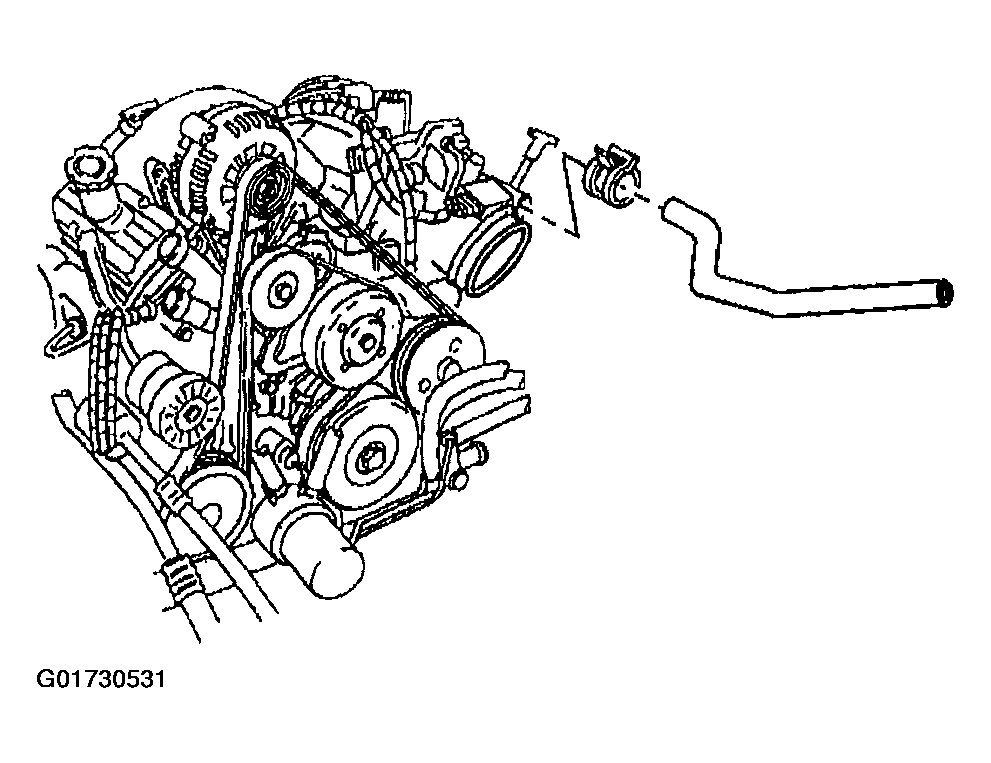

    Fig 2: Installing Radiator Inlet Hose To The Water Outlet
    G01730531Courtesy of GENERAL MOTORS CORP.
  5. Install the intake air duct resonator.
  6. Tighten the intake air duct clamp.

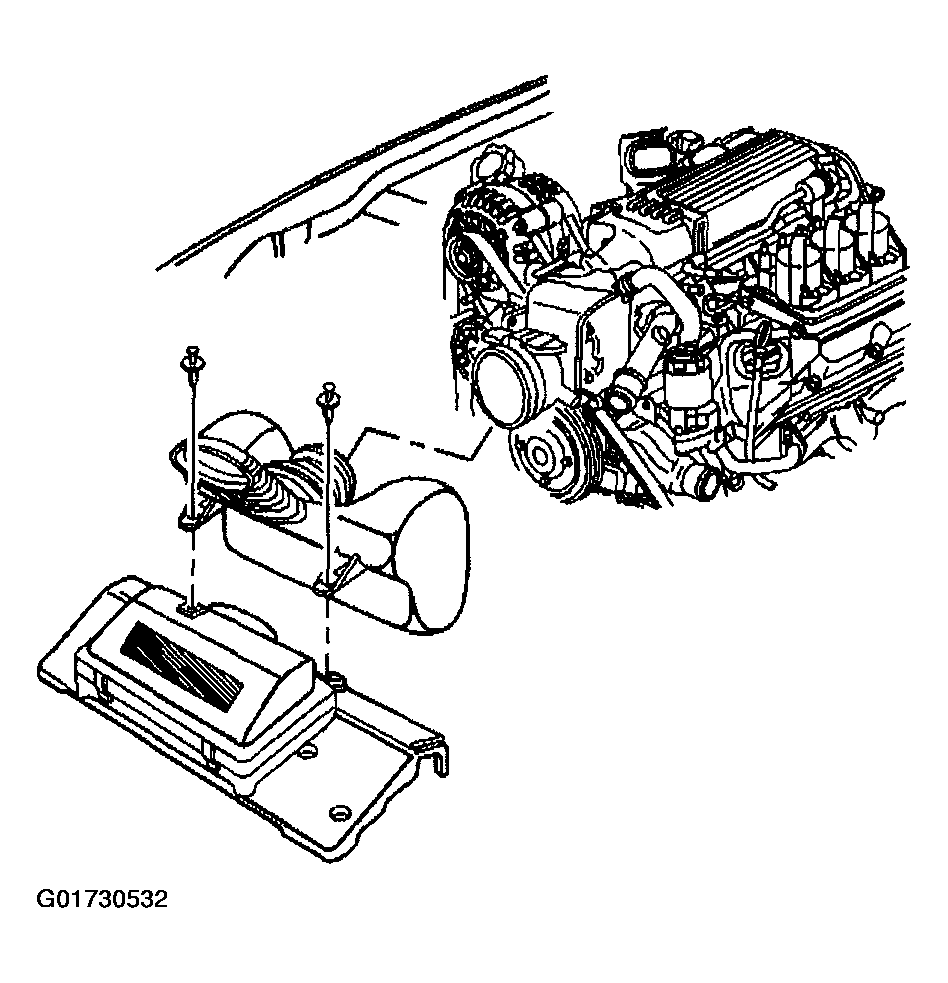

    Fig 3: Installing Intake Air Duct Resonator
    G01730532Courtesy of GENERAL MOTORS CORP.
  7. Connect the intake air temperature sensor electrical connector.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

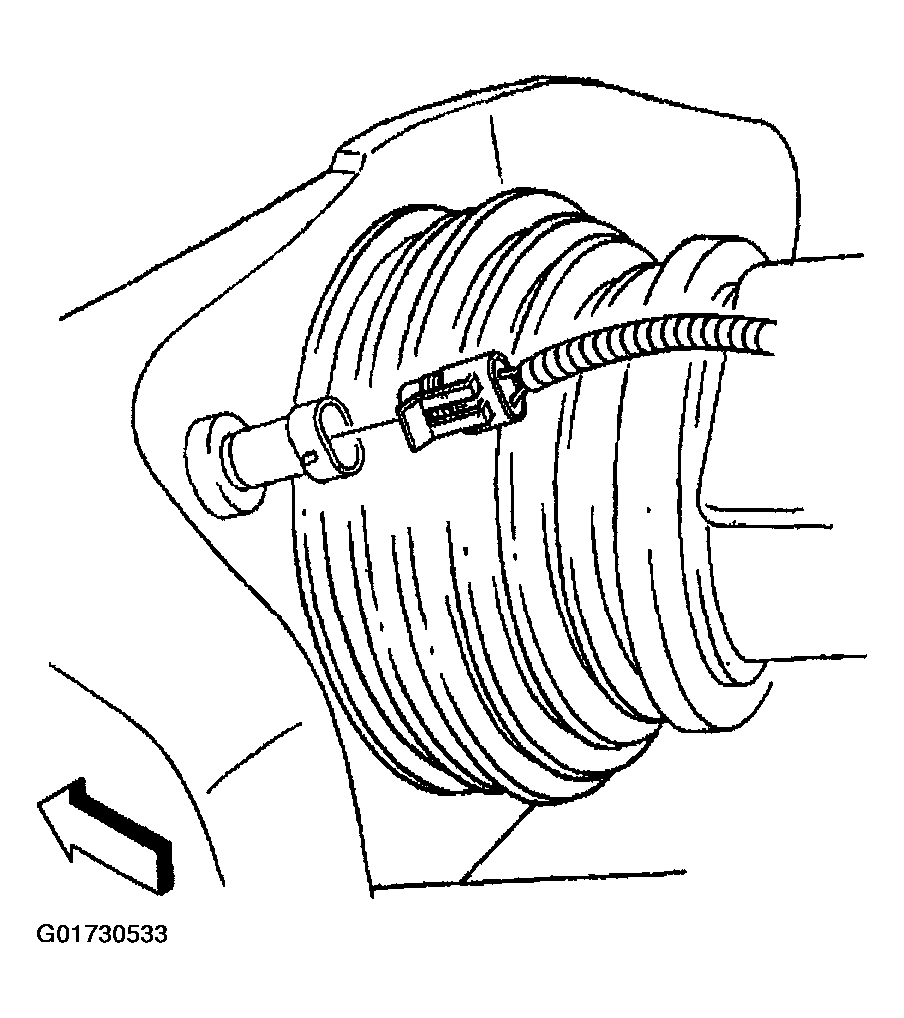

    Fig 4: Connecting Intake Air Temperature Sensor Electrical Connector
    G01730533Courtesy of GENERAL MOTORS CORP.
