Removal Procedure

  1. Remove the upper radiator air baffle from the retainers (3).
  2. Remove the upper radiator air baffle (1) from the radiator (2).

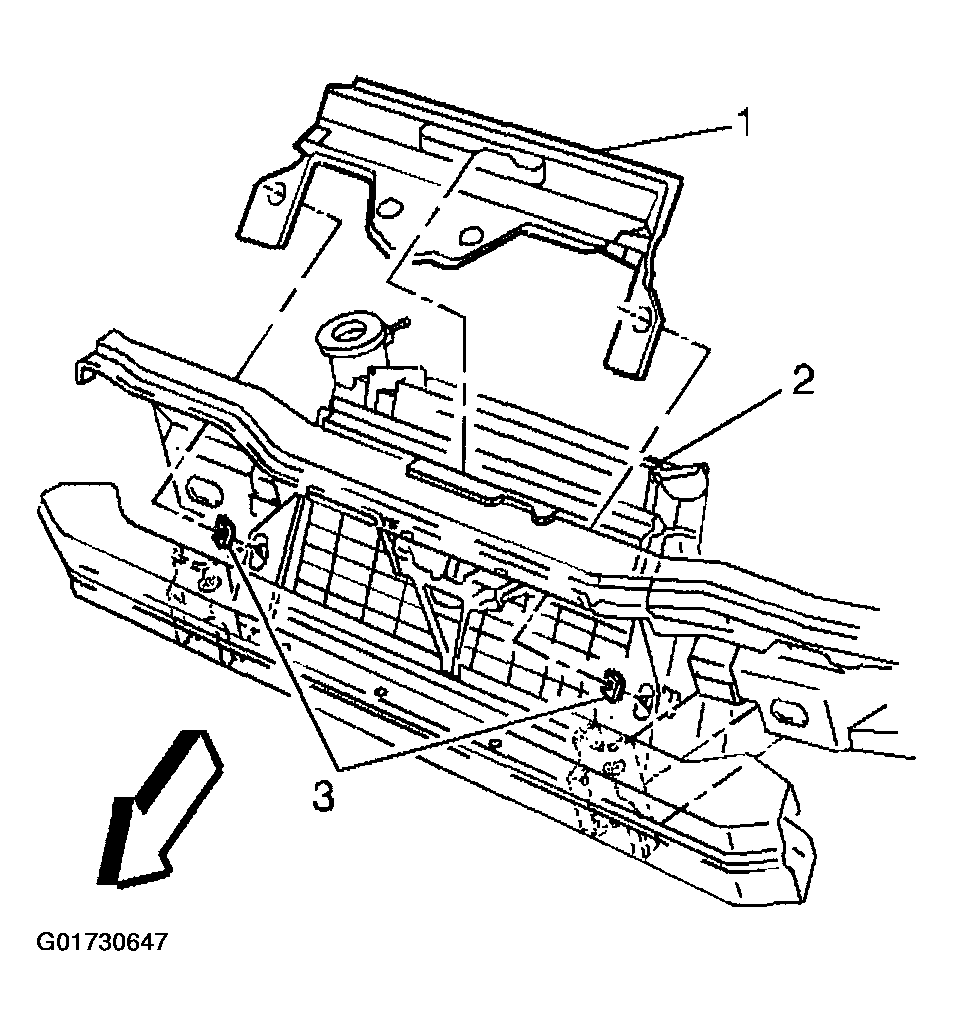

    Fig 1: Removing Upper Radiator Air Baffle From Retainers
    G01730647Courtesy of GENERAL MOTORS CORP.
