Installation Procedure

  1. Install the upper radiator air baffle (1) to the radiator (2).
  2. Install the upper radiator air baffle to the retainers (3).

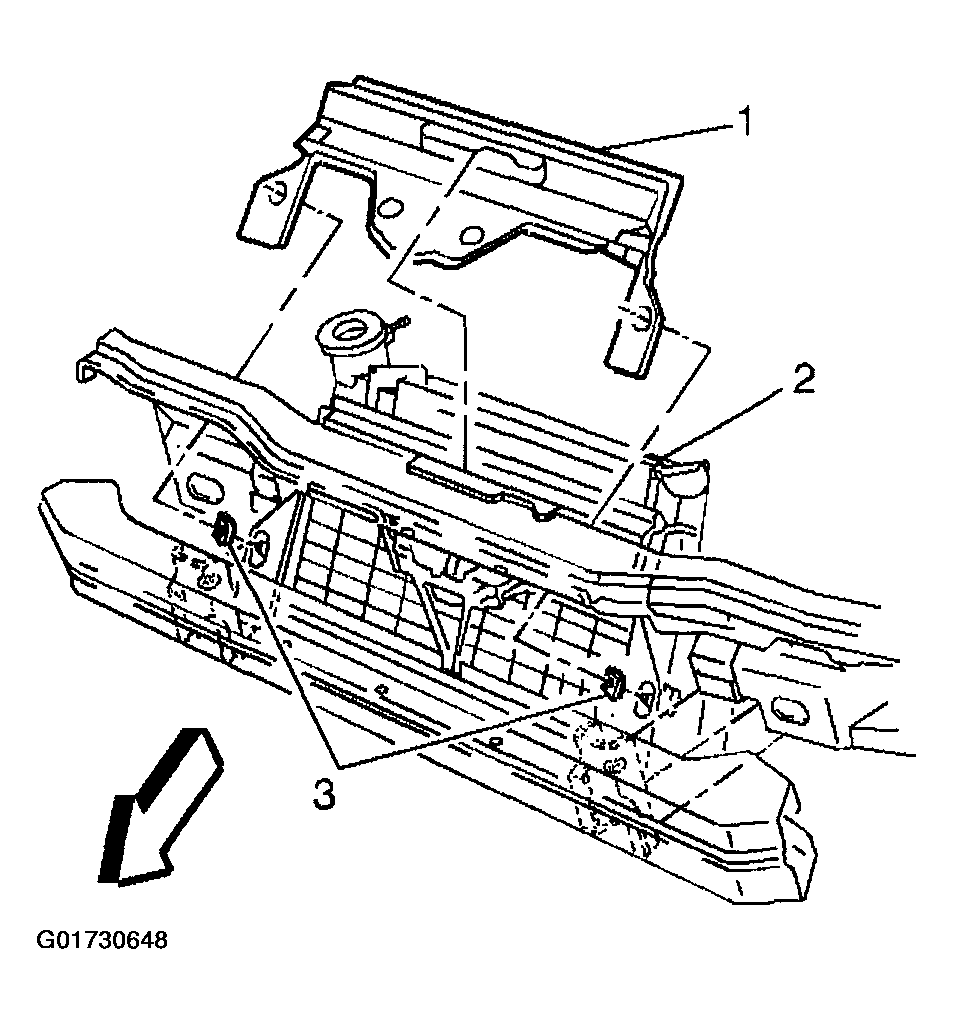

    Fig 1: Installing Upper Radiator Air Baffle To Radiator
    G01730648Courtesy of GENERAL MOTORS CORP.
