Removal Procedure

  1. Remove the lower radiator air deflector screws (3).
  2. Remove the lower radiator air baffle retainers (4).
  3. Remove the lower radiator air lower baffle (1).
  4. Inspect for any component damage.

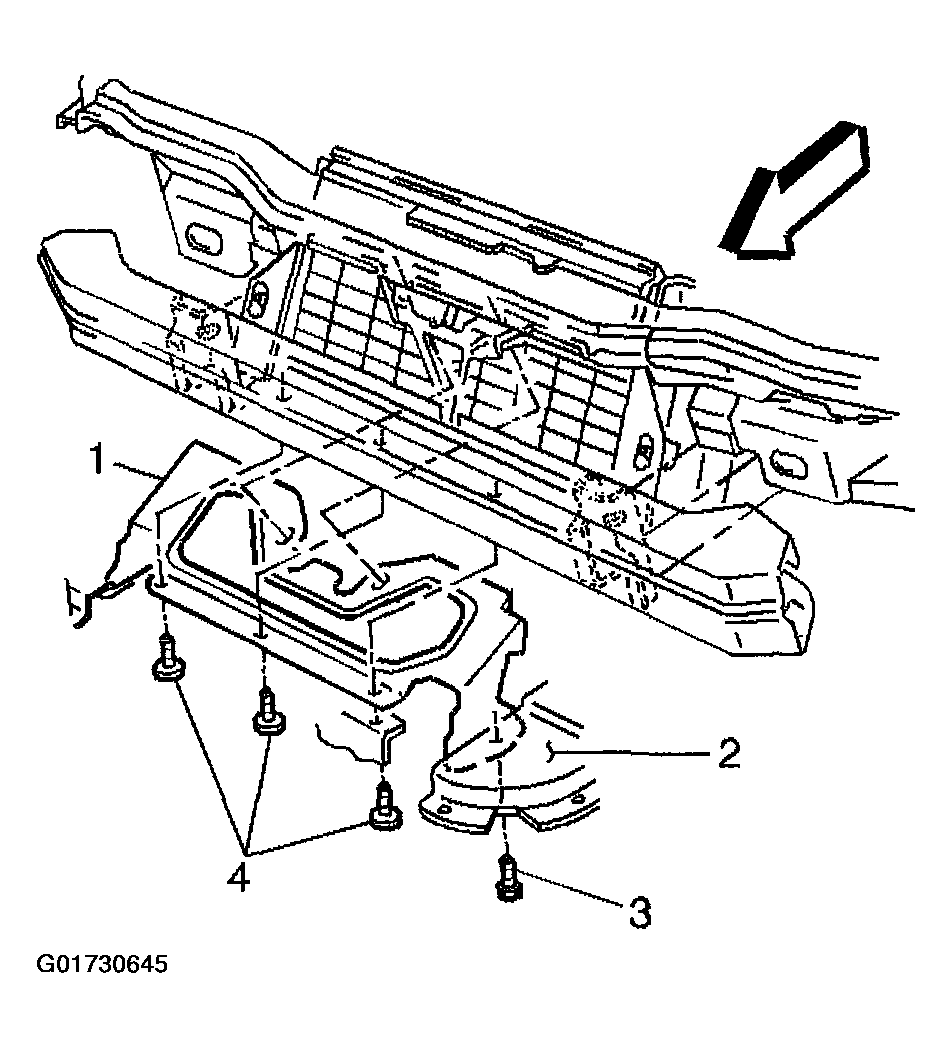

    Fig 1: Removing Lower Radiator Air Deflector Screws
    G01730645Courtesy of GENERAL MOTORS CORP.
