Installation Procedure

  1. Install the lower radiator air baffle (1).
  2. Install the lower radiator air baffle retainers (4).
  3. Install the lower radiator air deflector screws (3).

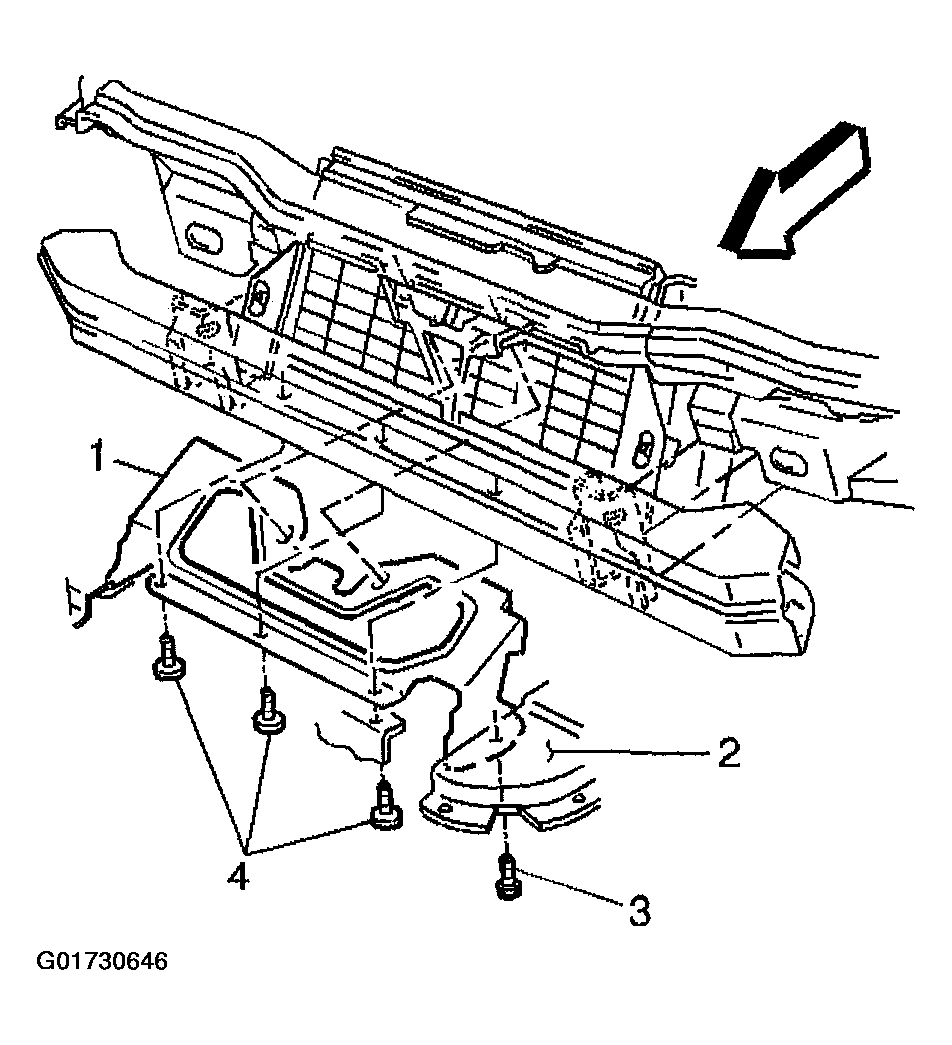

    Fig 1: Installing Lower Radiator Air Baffle
    G01730646Courtesy of GENERAL MOTORS CORP.

    Tighten

    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten the screws to 10 N.m (89 lb in).
