Removal Procedure

  1. Remove the radiator upper support. Refer to Radiator Support Replacement .
  2. Remove the wiring harness from the rosebud clips on the fan shroud.

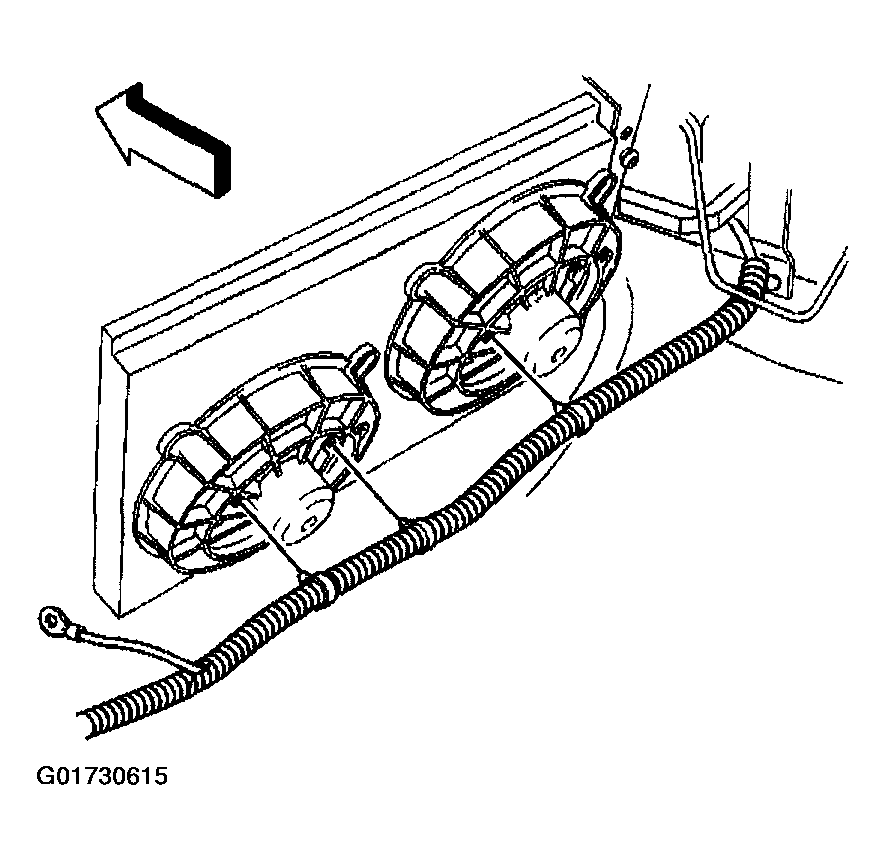

    Fig 1: Removing Wiring Harness From Rosebud Clips
    G01730615Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cooling fan electrical connectors.
  4. Raise and suitably support the vehicle.

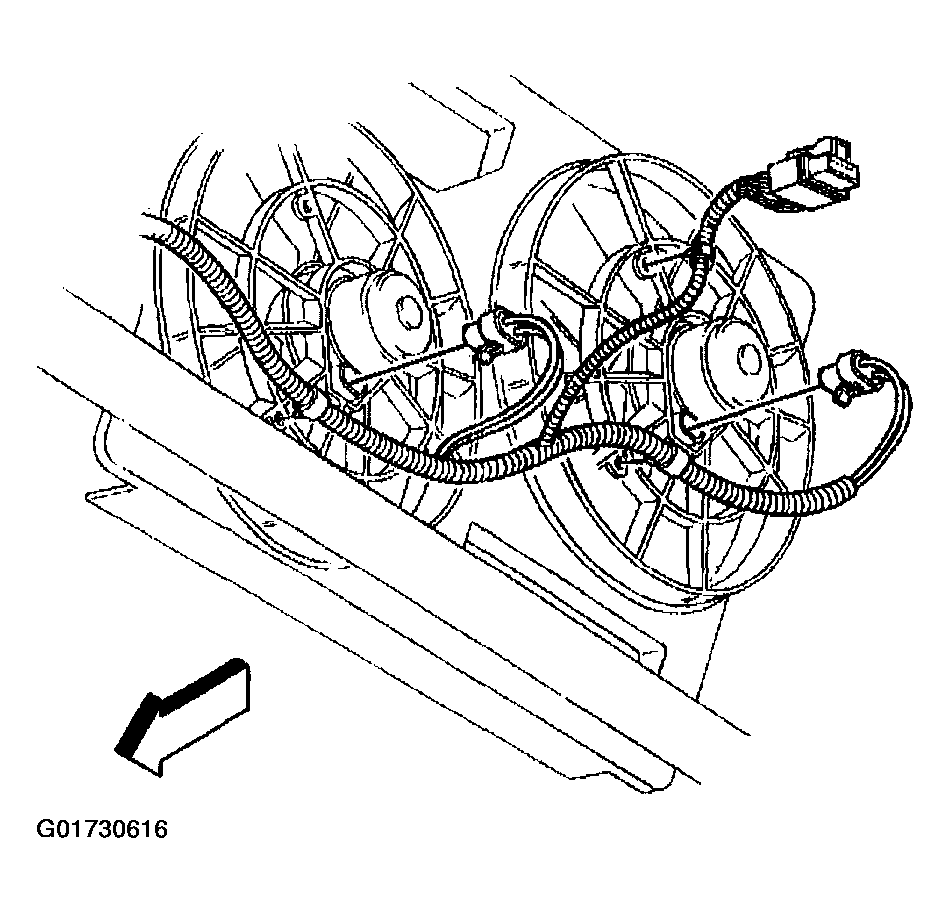

    Fig 2: Disconnecting Cooling Fan Electrical Connectors
    G01730616Courtesy of GENERAL MOTORS CORP.
  5. Remove the fan shroud.

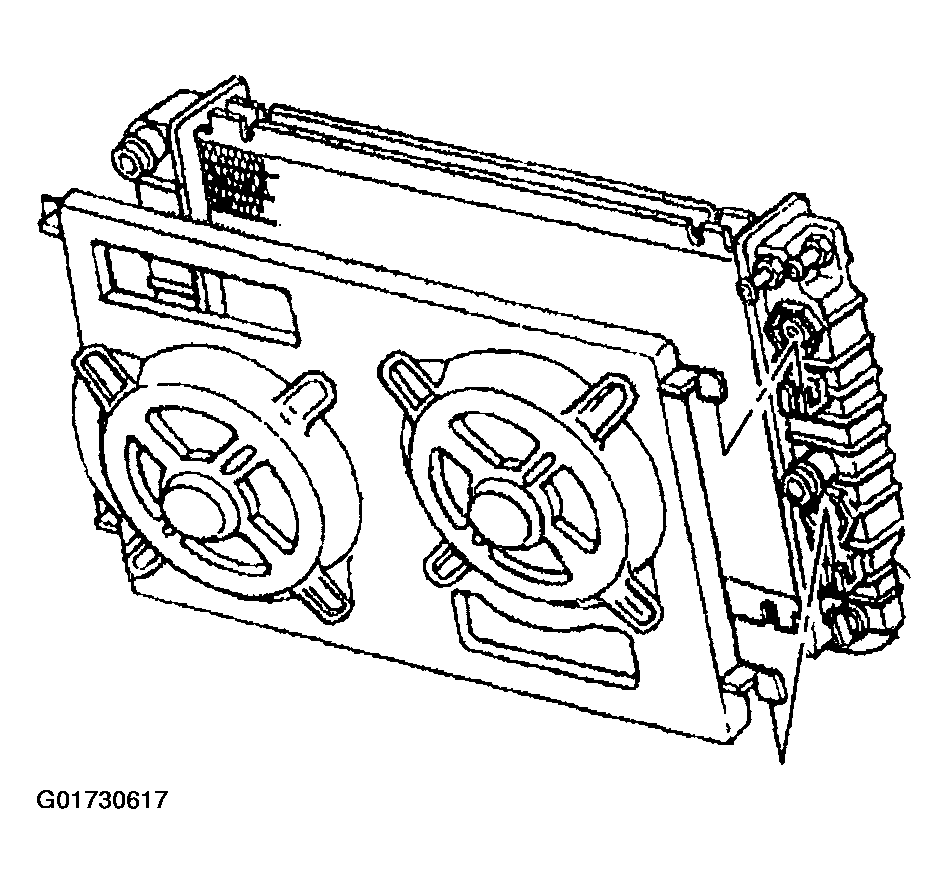

    Fig 3: Removing Fan Shroud
    G01730617Courtesy of GENERAL MOTORS CORP.
  6. Remove the cooling fan brackets from the fan shroud, if necessary.

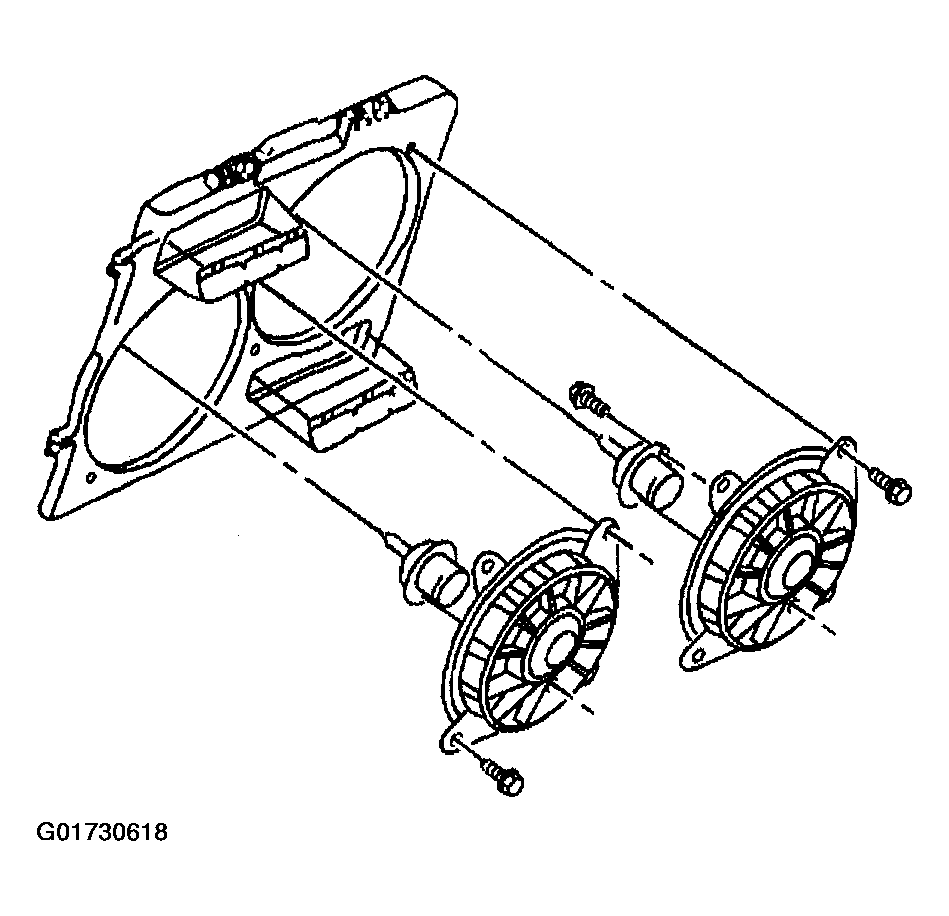

    Fig 4: Removing Cooling Fan Brackets From Fan Shroud
    G01730618Courtesy of GENERAL MOTORS CORP.
