Installation Procedure

  1. Install the cooling fan brackets to the fan shroud, if necessary.

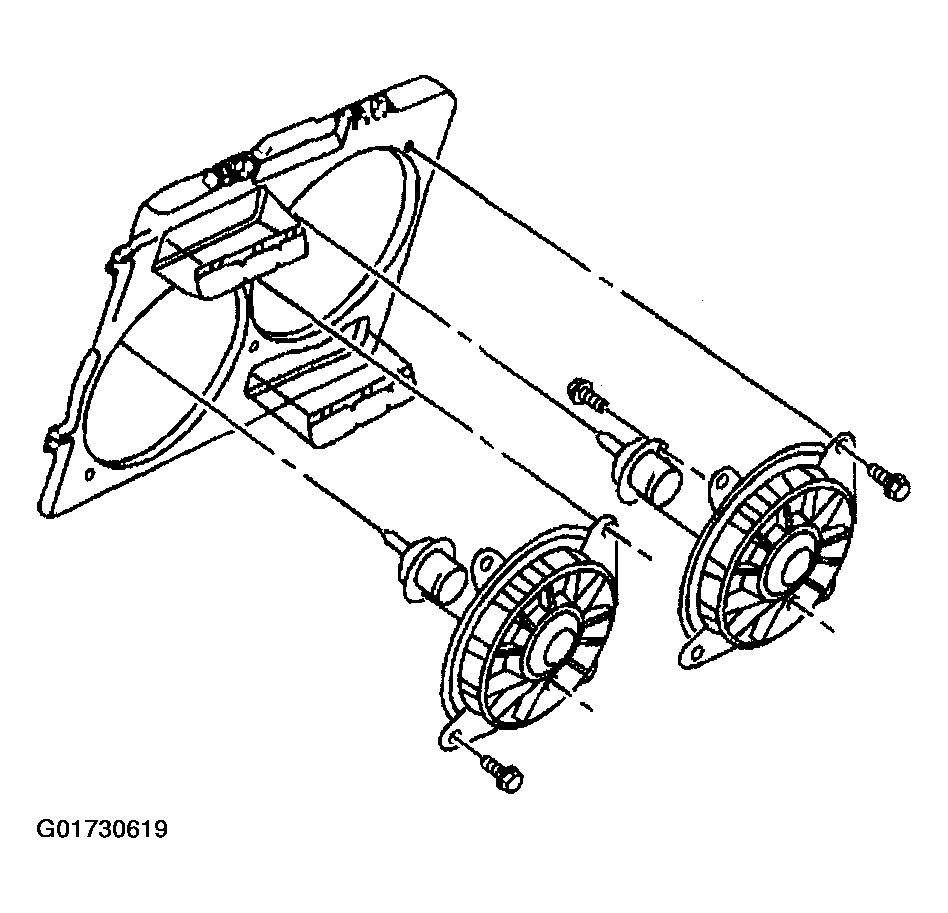

    Fig 1: Installing Cooling Fan Brackets
    G01730619Courtesy of GENERAL MOTORS CORP.
  2. Install the fan shroud.
  3. Lower the vehicle.

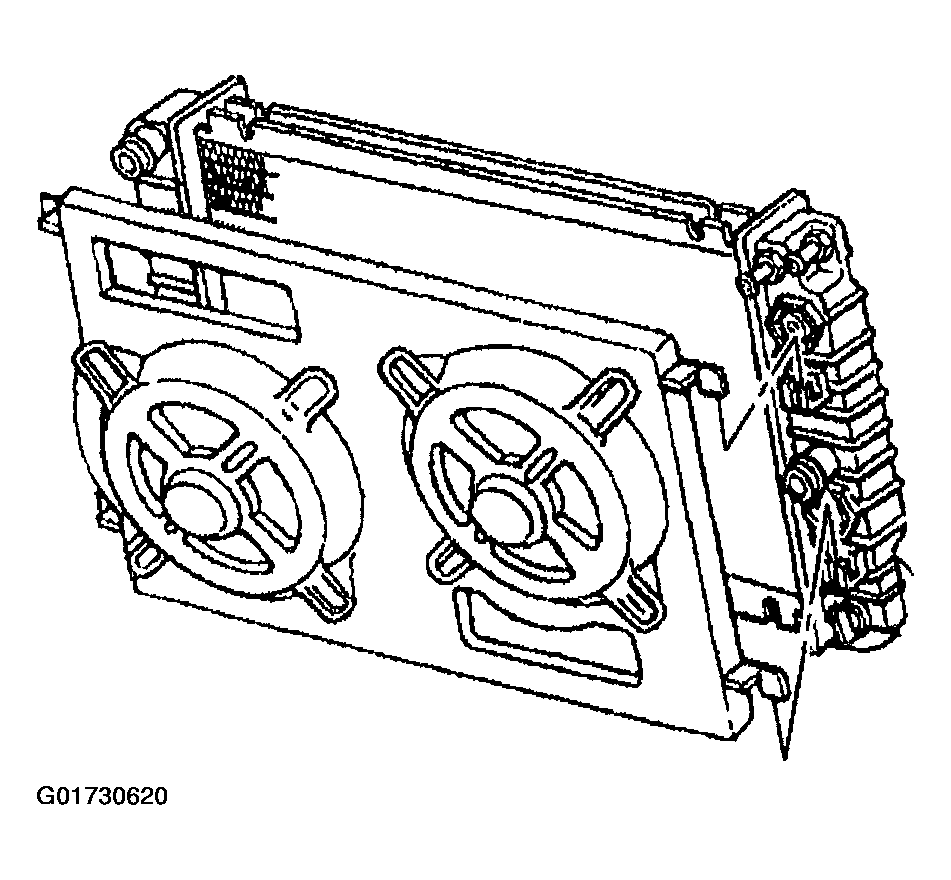

    Fig 2: Installing Fan Shroud
    G01730620Courtesy of GENERAL MOTORS CORP.
  4. Connect the cooling fan electrical connectors.

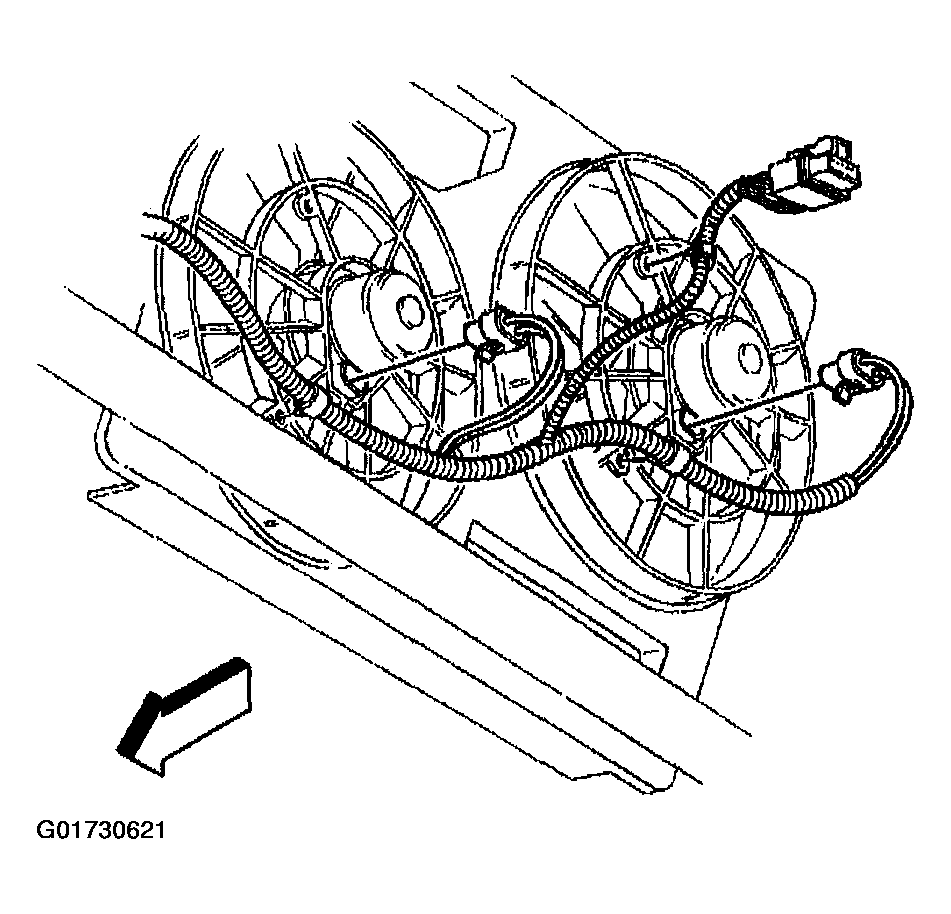

    Fig 3: Connecting Cooling Fan Electrical Connectors
    G01730621Courtesy of GENERAL MOTORS CORP.
  5. Connect the rosebud clips to the fans.
  6. Install the radiator upper support. Refer to Radiator Support Replacement .

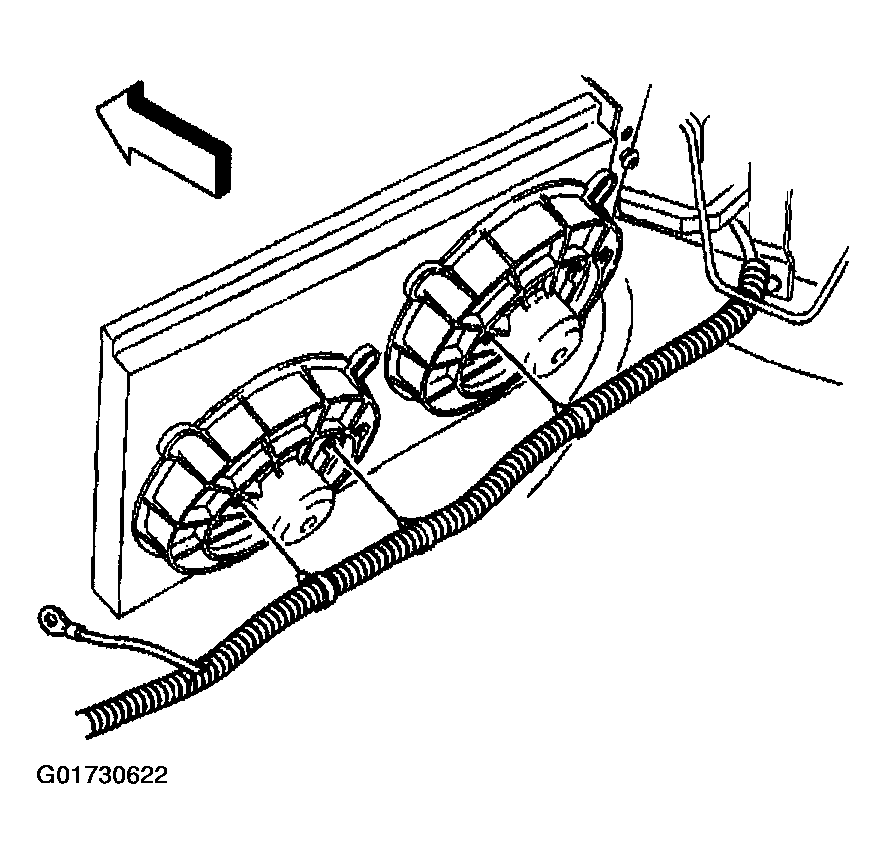

    Fig 4: Connecting Rosebud Clips To Fans
    G01730622Courtesy of GENERAL MOTORS CORP.
