Installation Procedure

  1. Install the fan blade.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the cooling fan blade nut.

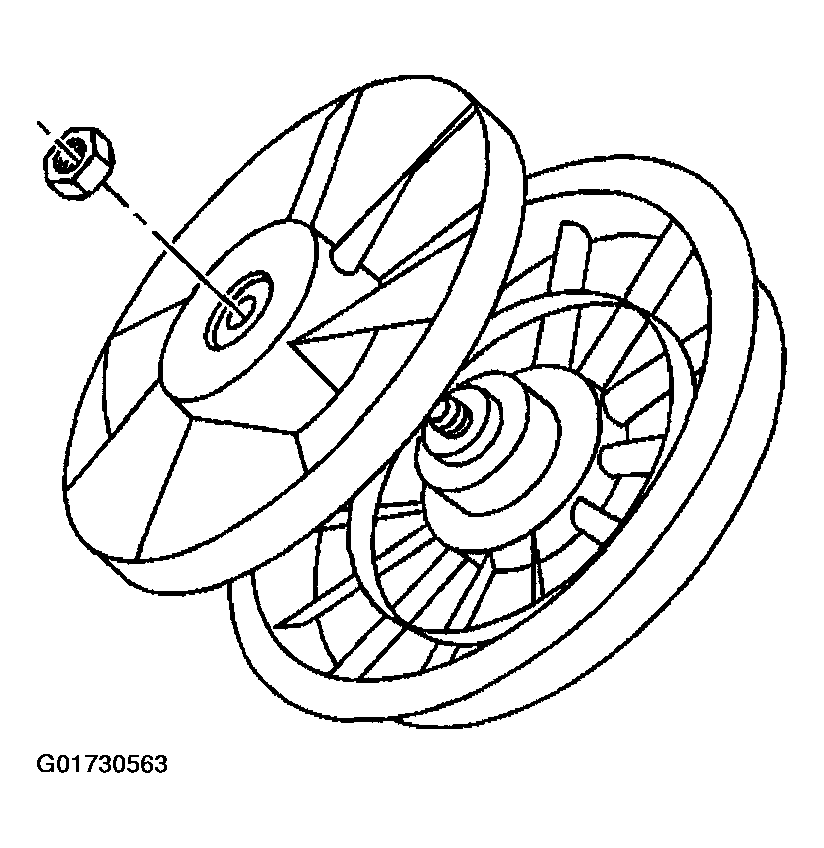

    Fig 1: Installing Cooling Fan Blade Nut
    G01730563Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  3. Install the fan shroud. Refer to Fan Shroud Replacement .
