Installation Procedure

NOTE: Installation of the proper relay is critical. If an enhanced relay (equipped with a diode) is installed into a position requiring a standard relay (equipped without a diode) excessive current will damage any components associated with the relay or its associated circuits.
  1. Install the cooling fan relay. Refer to FUSES & CIRCUIT BREAKERS .
  2. Install the underhood electrical center cover.

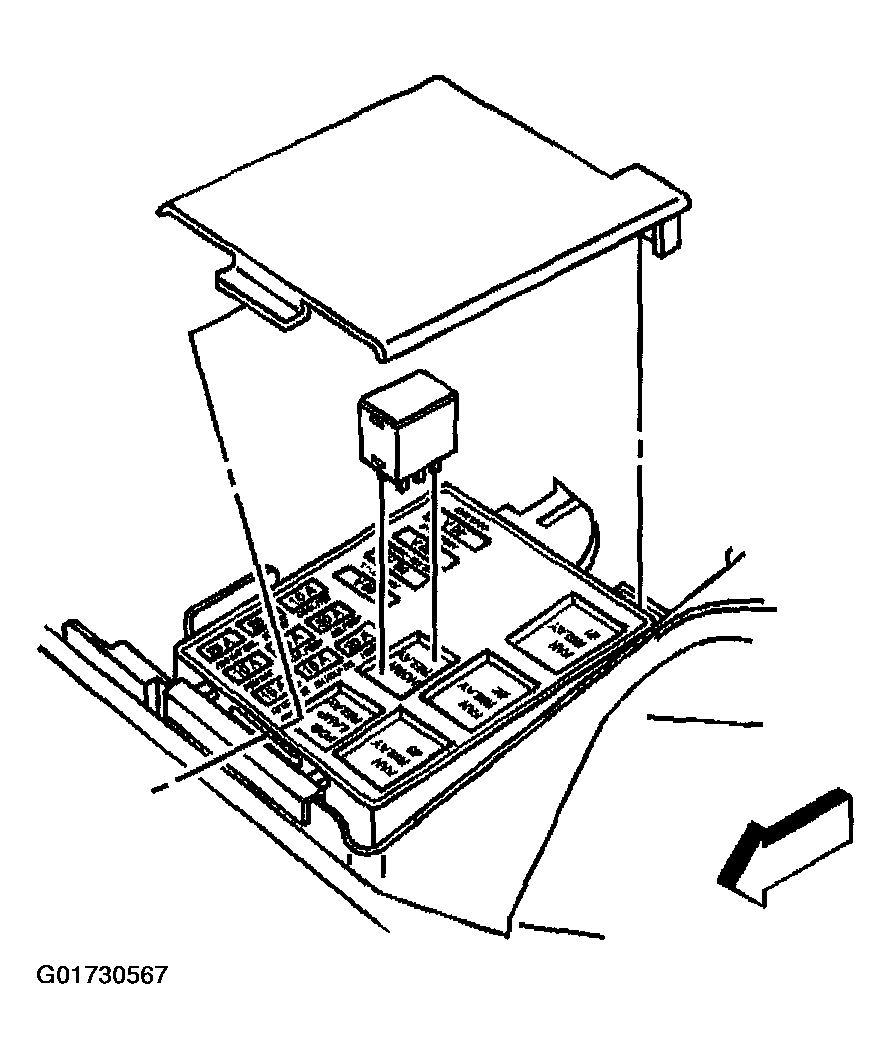

    Fig 1: Installing Underhood Electrical Center Cover
    G01730567Courtesy of GENERAL MOTORS CORP.
