Removal Procedure

  1. Remove the cooling fan. Refer to Cooling Fan Replacement - Electric .
  2. Remove the cooling fan motor bolts.
  3. Remove the cooling fan motor.

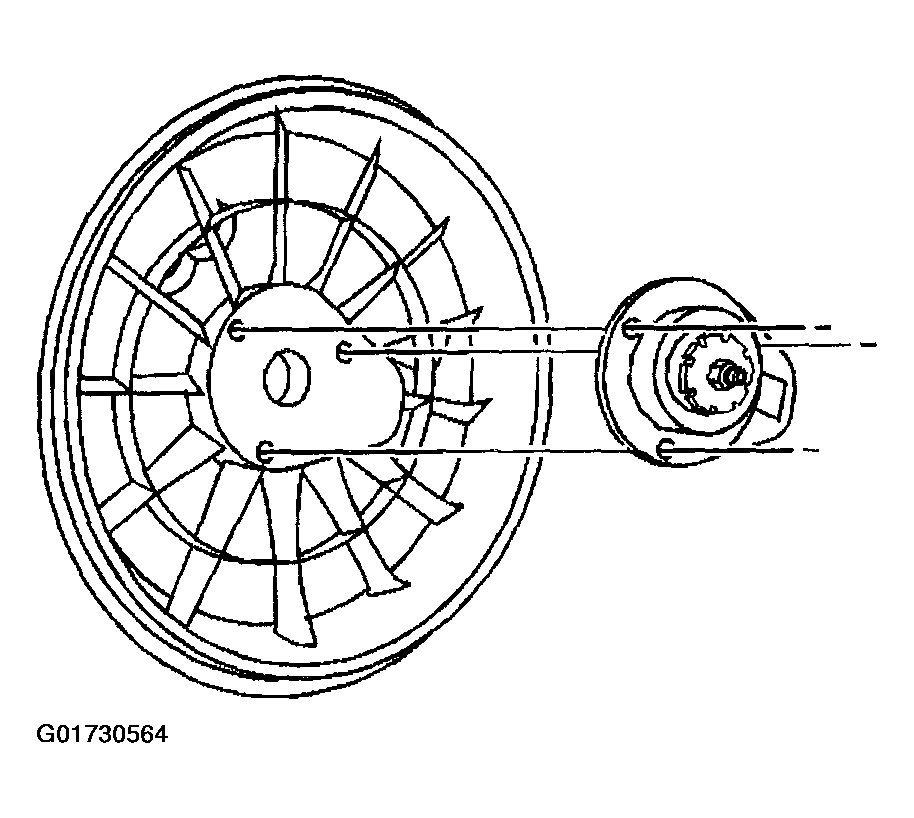

    Fig 1: Removing Cooling Fan Motor
    G01730564Courtesy of GENERAL MOTORS CORP.
