Removal Procedure

  1. Remove the battery.
  2. Reposition the coolant recovery reservoir hose clamp from the radiator.
  3. Remove the coolant recovery hose from the radiator.

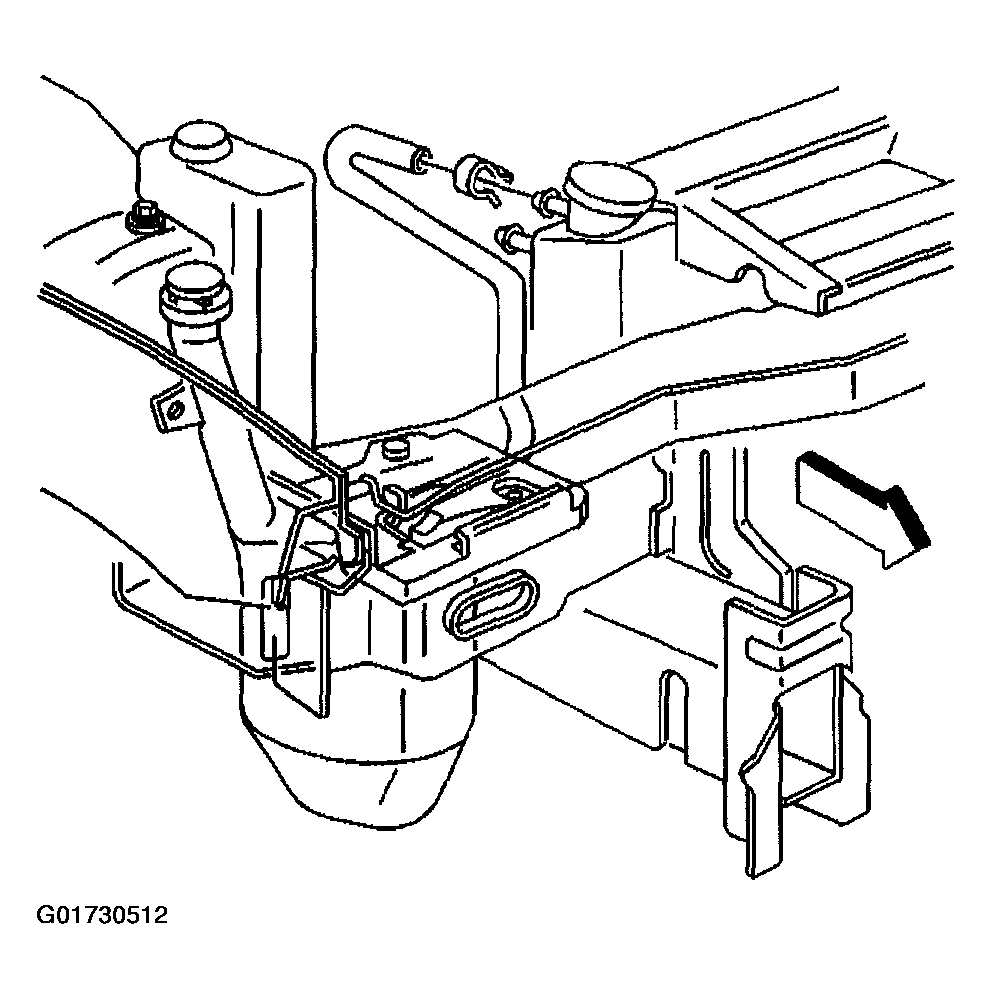

    Fig 1: Removing Coolant Recovery Hose From radiator
    G01730512Courtesy of GENERAL MOTORS CORP.
  4. Remove the accelerator and cruise control servo cable bolts, if equipped with the 5.7L engine.
  5. Reposition the servo cable adjuster, if equipped with the 5.7L engine.

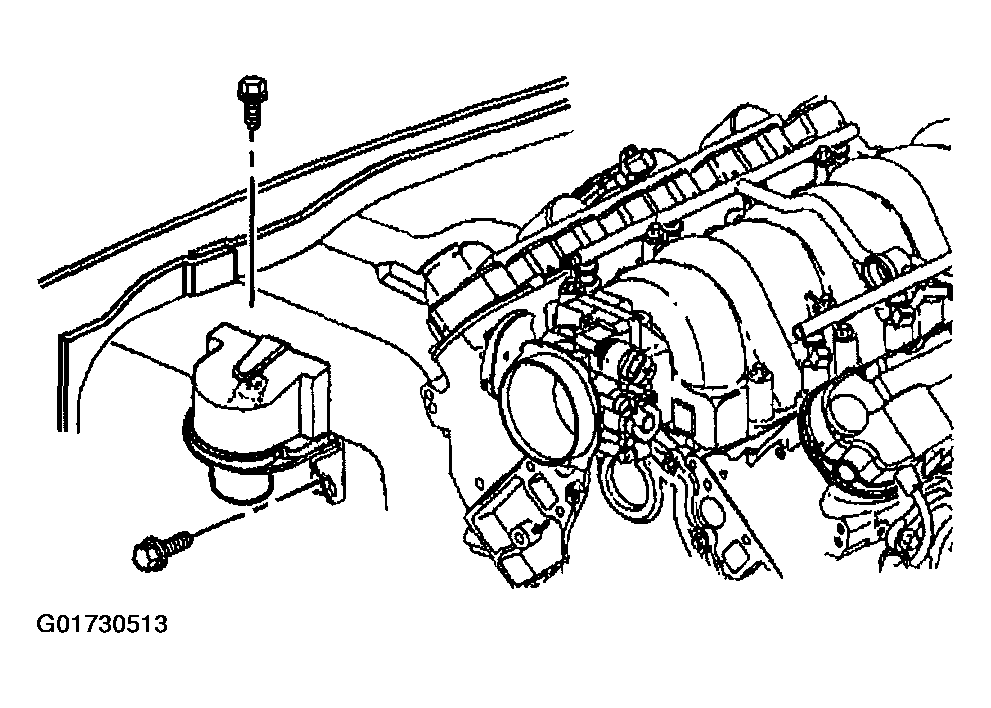

    Fig 2: Removing Accelerator And Cruise Control Servo Cable Bolts
    G01730513Courtesy of GENERAL MOTORS CORP.
  6. Remove the coolant recovery reservoir mounting bolt.

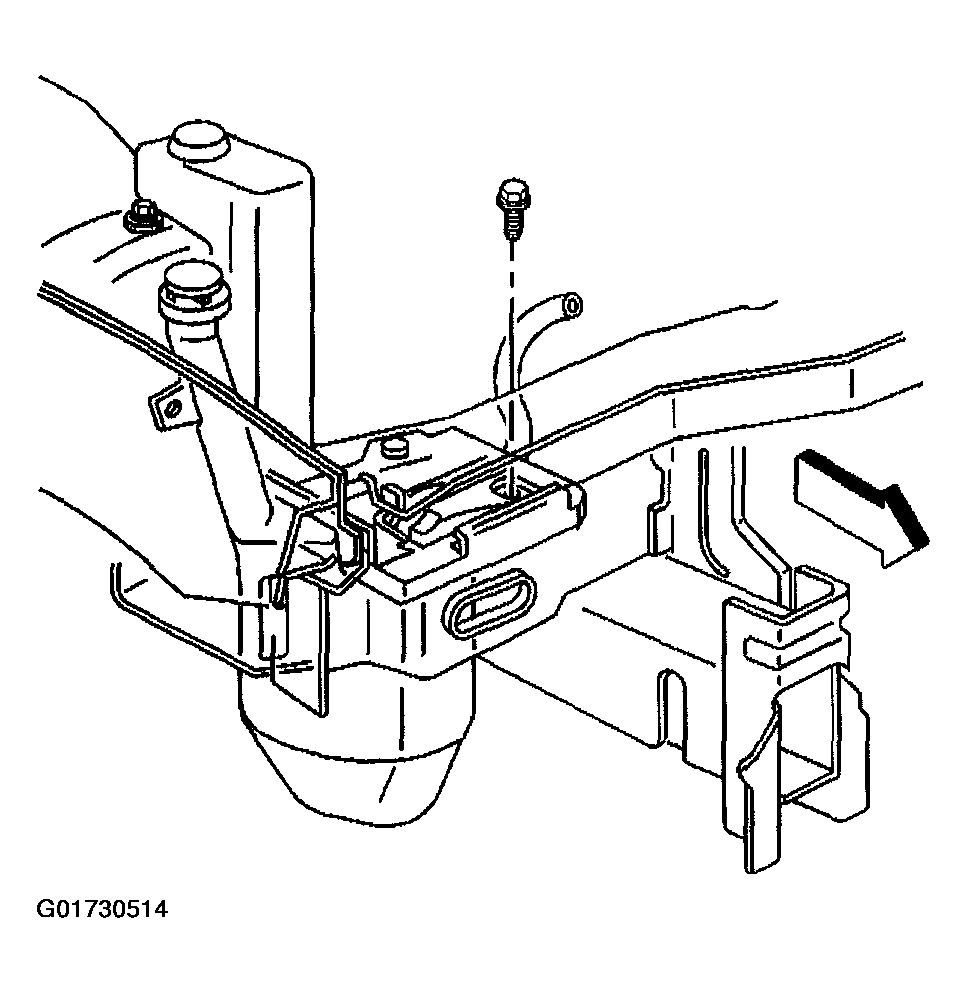

    Fig 3: Removing Coolant Recovery Reservoir Mounting Bolt
    G01730514Courtesy of GENERAL MOTORS CORP.
  7. Remove the wiring harness rosebud clip from the reservoir neck.
  8. Remove the coolant recovery reservoir.

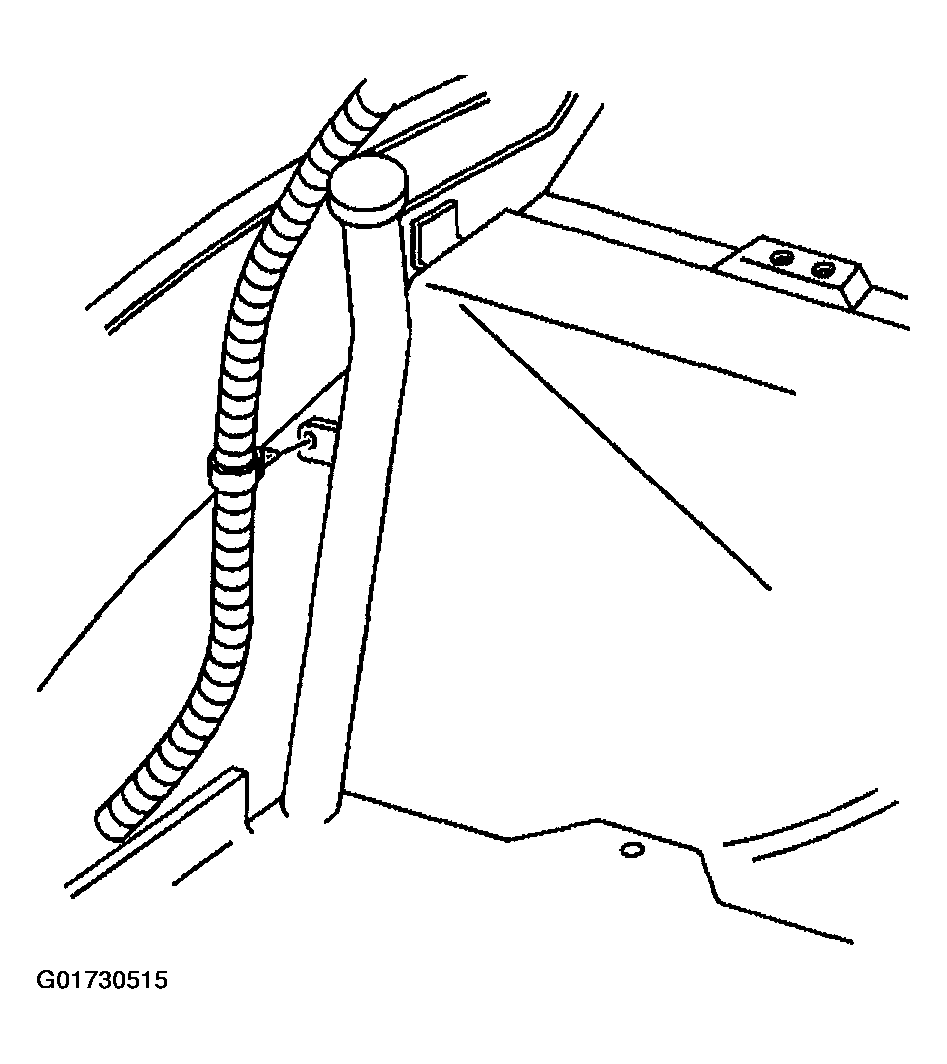

    Fig 4: Removing Wiring Harness Rosebud Clip From Reservoir Neck
    G01730515Courtesy of GENERAL MOTORS CORP.
  9. Remove the coolant recovery reservoir hose from the coolant recovery reservoir.

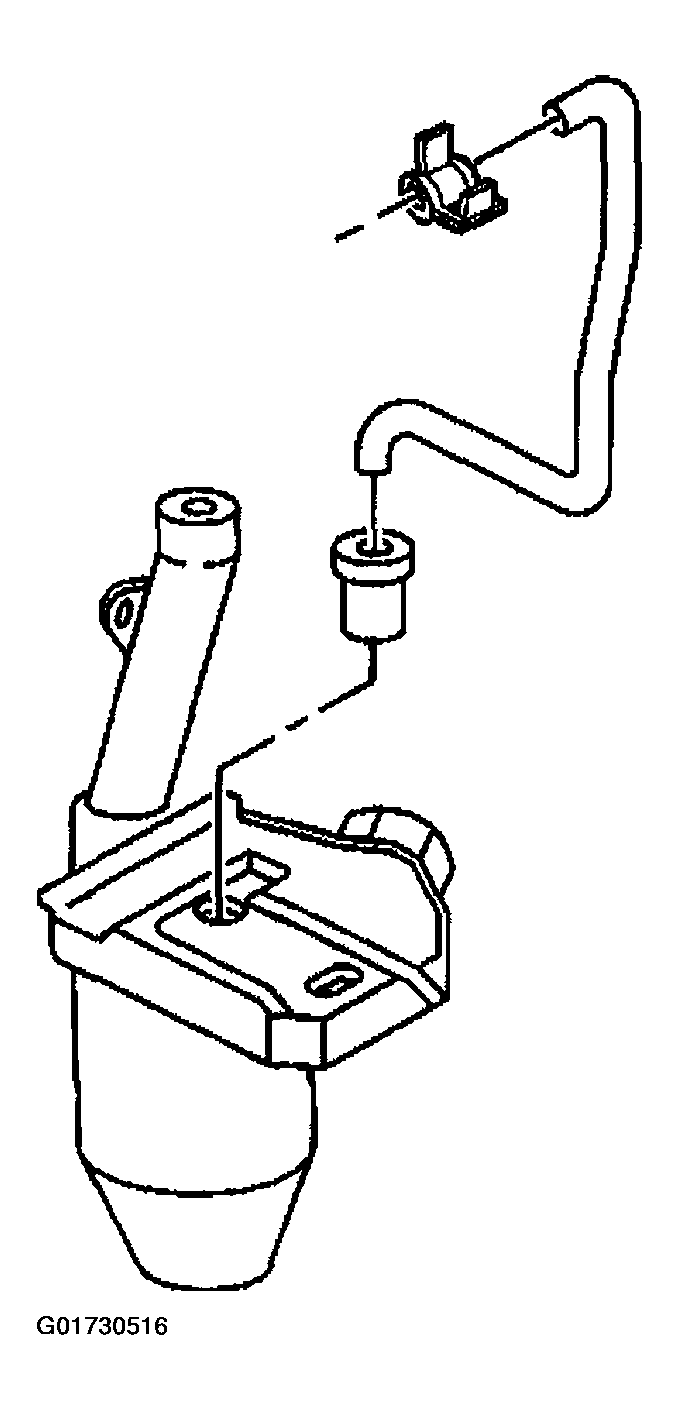

    Fig 5: Removing Coolant Recovery Reservoir Hose
    G01730516Courtesy of GENERAL MOTORS CORP.
