Installation Procedure

Install the coolant recovery reservoir hose to the coolant recovery reservoir.
Install the coolant recovery reservoir.

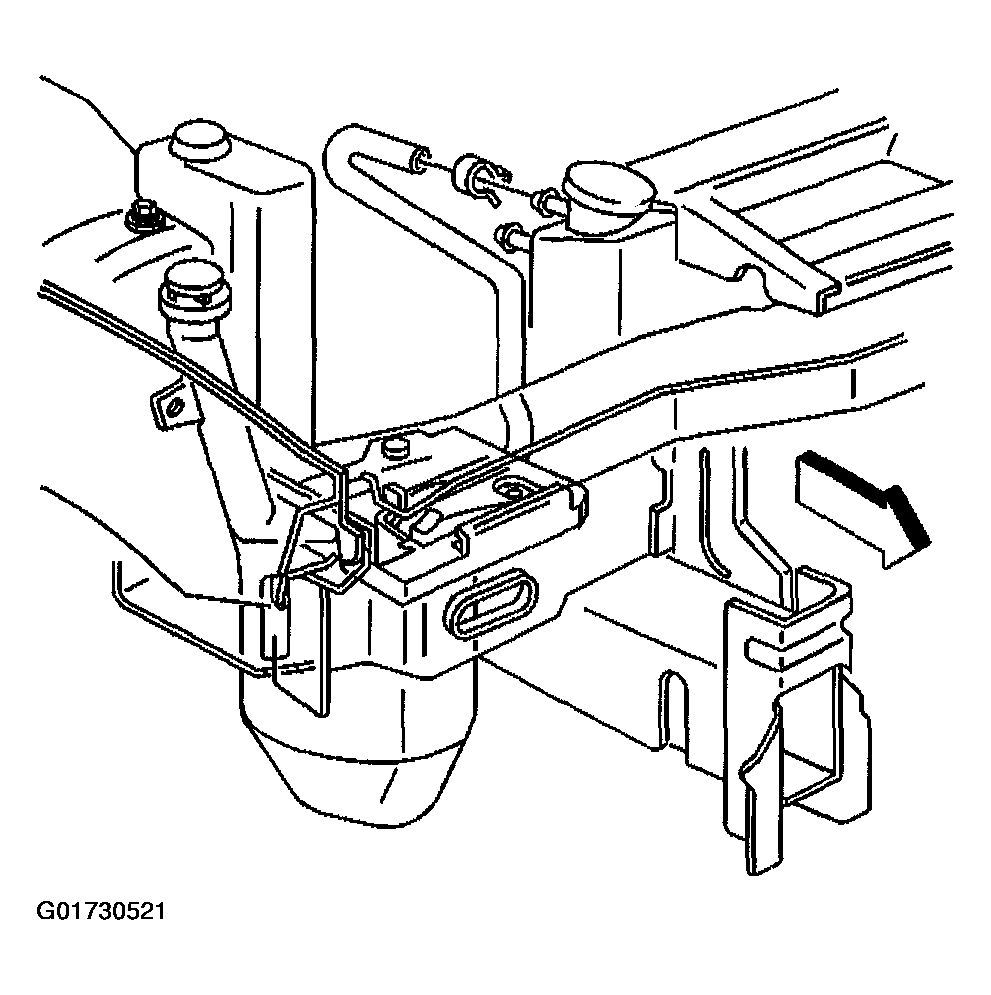

Fig 1: Installing Coolant Recovery Reservoir
Courtesy of GENERAL MOTORS CORP.
Install the wiring harness rosebud clip to the coolant recovery reservoir neck.

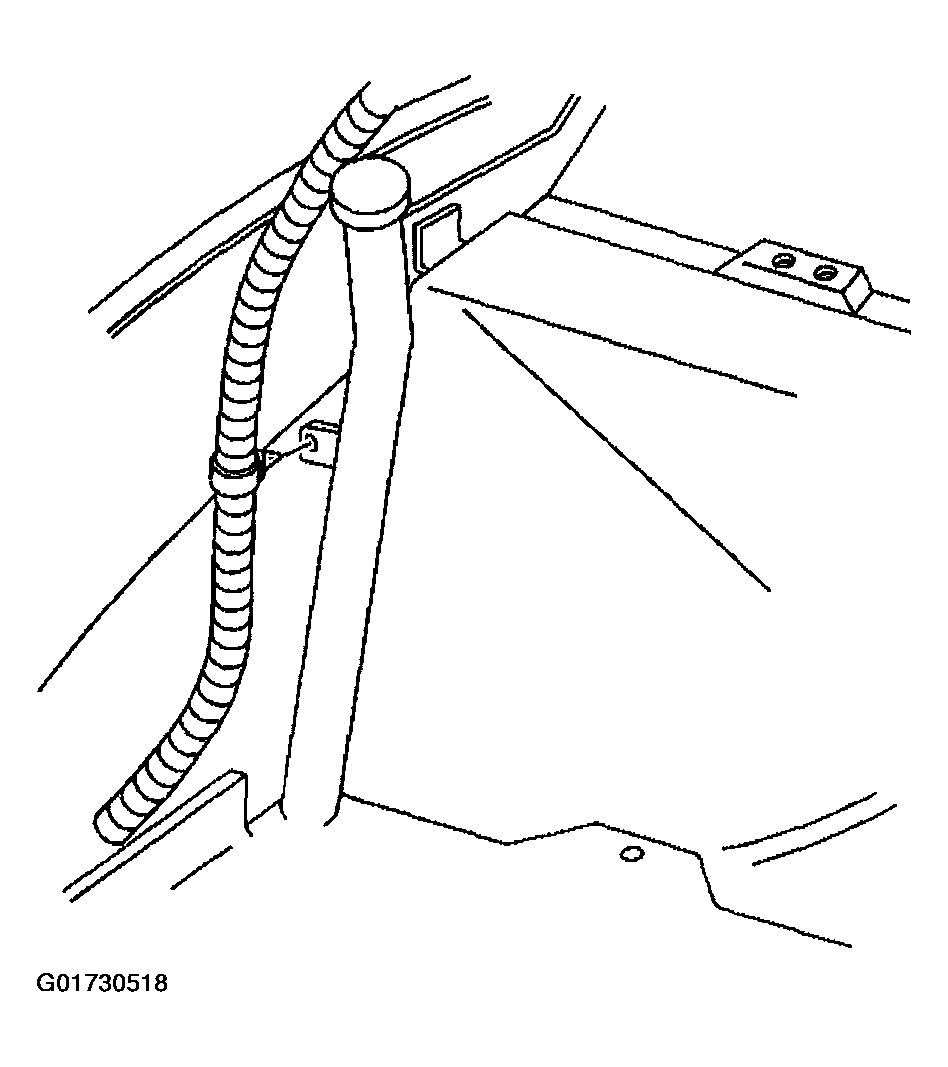

Fig 2: Installing Wiring Harness Rosebud Clip
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the coolant recovery reservoir bolt.
Tighten

Tighten the bolt to 12 N.m (106 lb in).

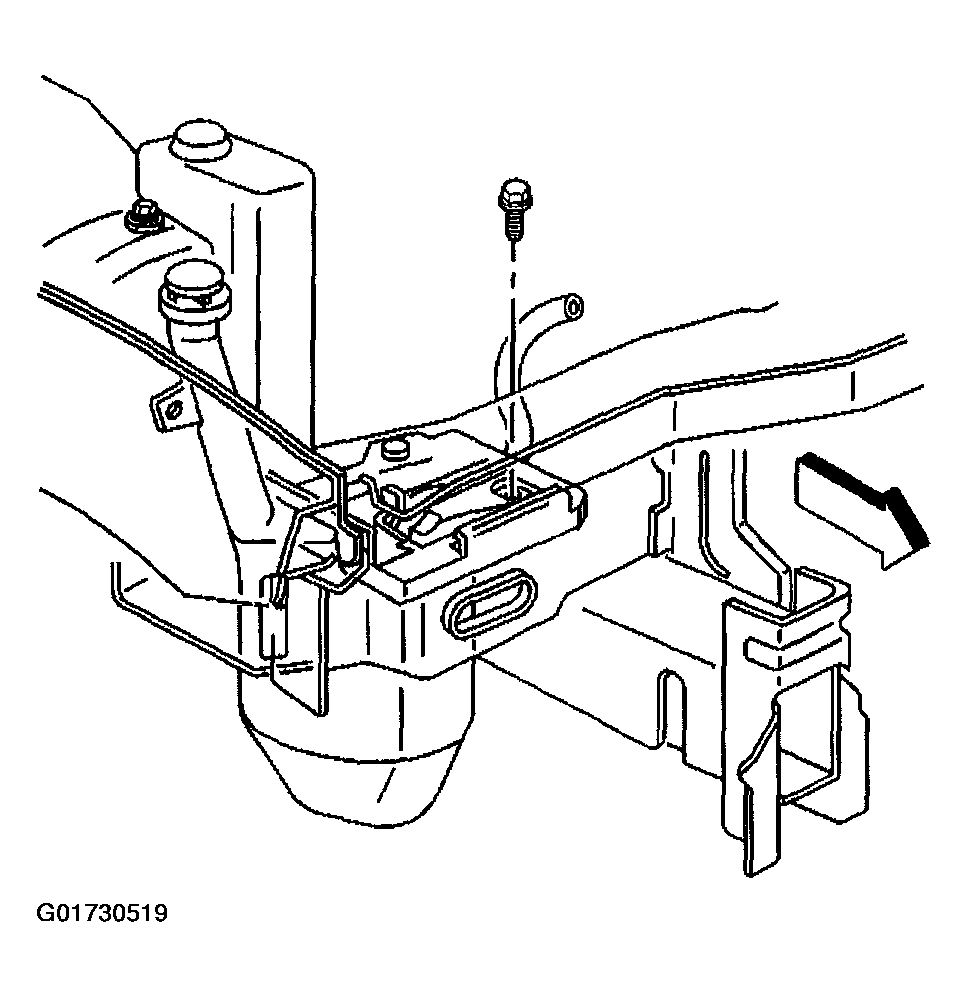

Fig 3: Installing Coolant Recovery Reservoir Bolt
Courtesy of GENERAL MOTORS CORP.
Reposition the servo cable adjuster, if equipped with the 5.7L engine.
Install the servo cable bolts, if equipped with the 5.7L engine.
Tighten

Tighten the bolts to 8 N.m (71 lb in).

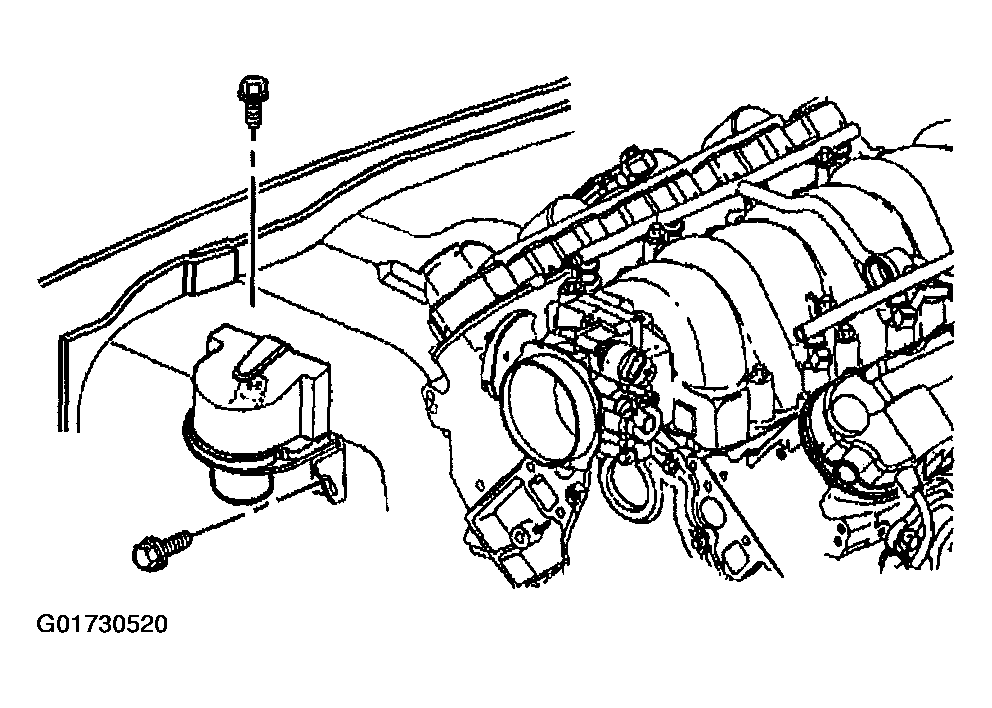

Fig 4: Installing Servo Cable Bolts
Courtesy of GENERAL MOTORS CORP.
Install the coolant recovery reservoir hose to the radiator.

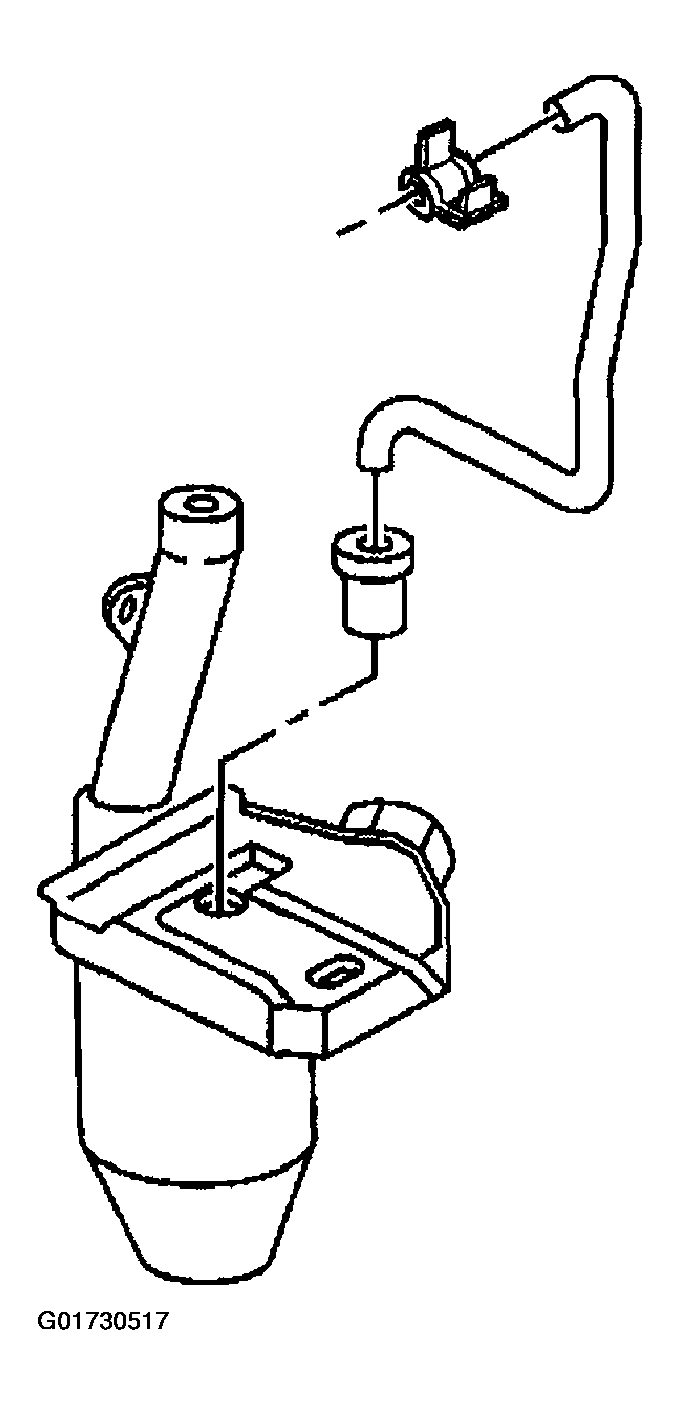

Fig 5: Installing Coolant Recovery Reservoir Hose
Courtesy of GENERAL MOTORS CORP.
Reposition the reservoir hose clamp to the radiator.
Install the battery.
Fill the coolant recovery reservoir to the FULL COLD mark.
