Removal Procedure

  1. Remove the battery.
  2. Reposition the reservoir hose clamp at the radiator.
  3. Remove the reservoir hose from the radiator.

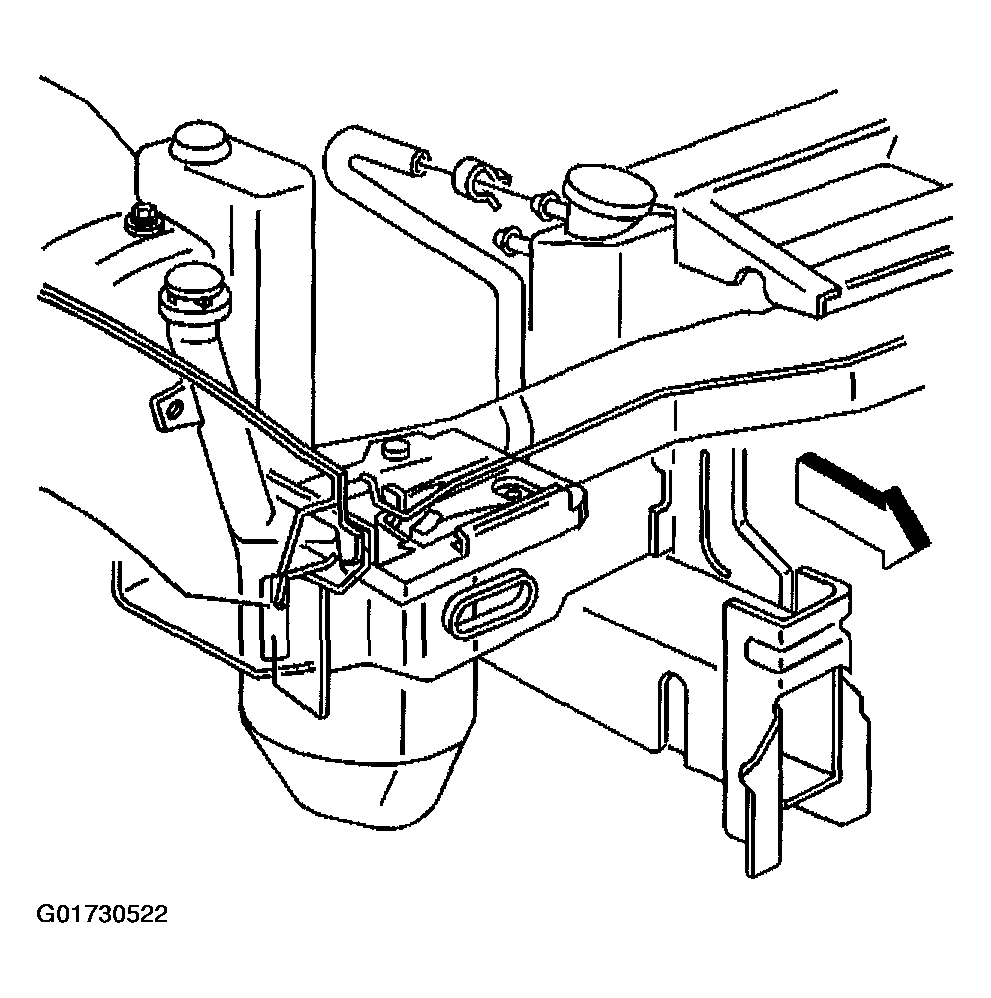

    Fig 1: Removing Reservoir Hose From The Radiator
    G01730522Courtesy of GENERAL MOTORS CORP.
  4. Remove the recovery hose and grommet from the reservoir.

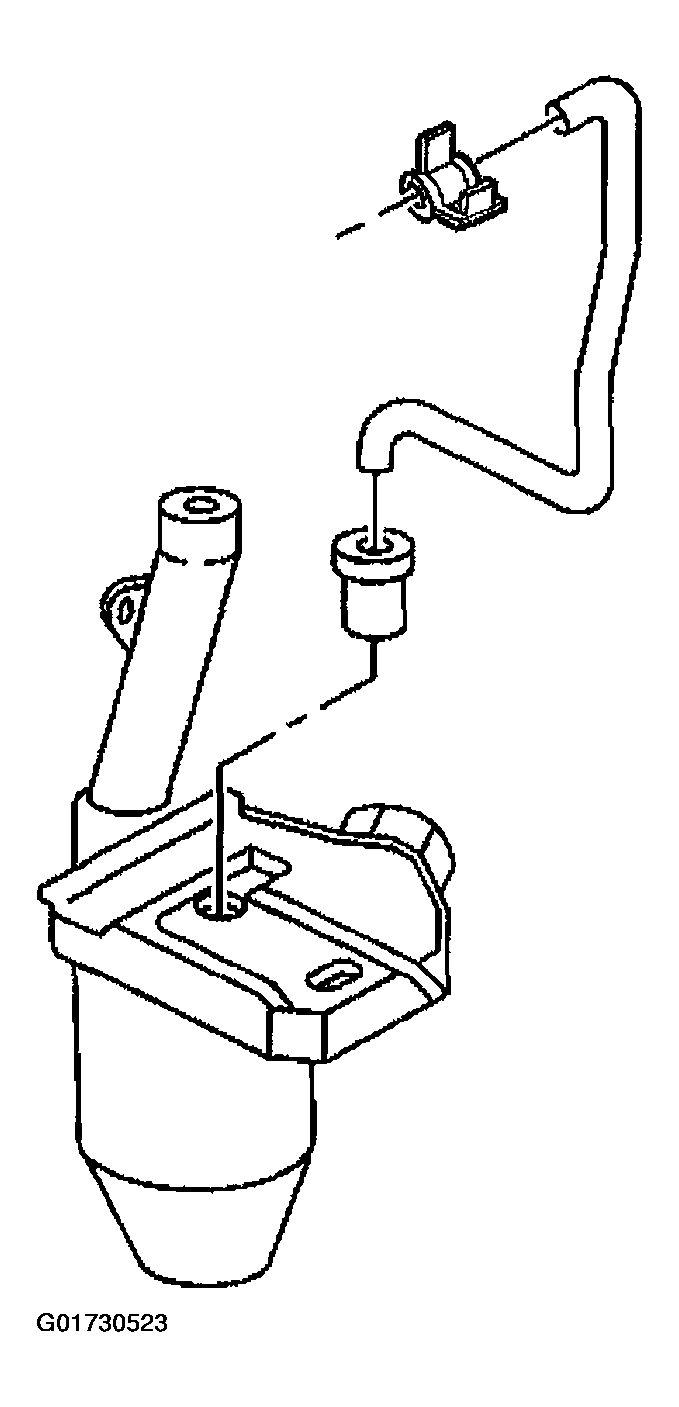

    Fig 2: Removing Recovery Hose And Grommet
    G01730523Courtesy of GENERAL MOTORS CORP.
