Installation Procedure

  1. Install the coolant recovery hose and grommet to the reservoir.

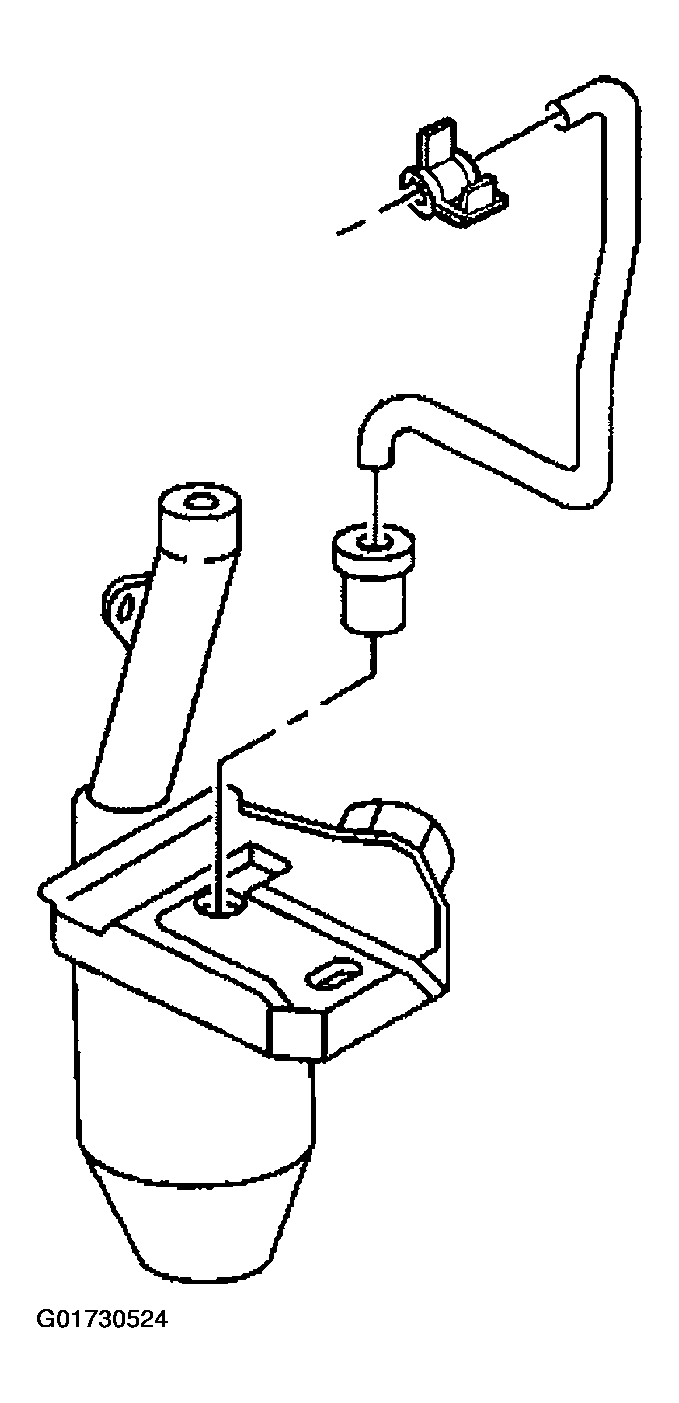

    Fig 1: Installing Coolant Recovery Hose And Grommet
    G01730524Courtesy of GENERAL MOTORS CORP.
  2. Install the reservoir hose to the radiator.
  3. Position the reservoir hose clamp at the radiator.
  4. Install the battery.

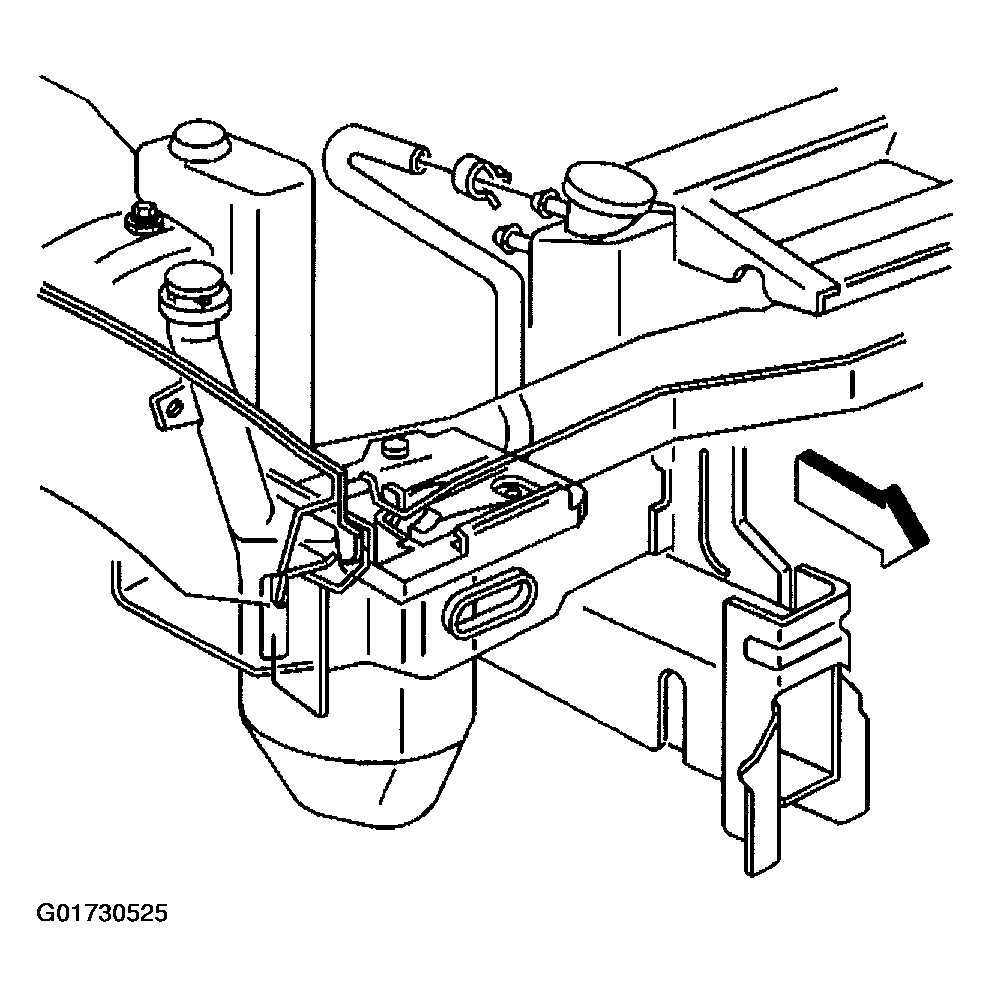

    Fig 2: Installing Reservoir Hose To Radiator
    G01730525Courtesy of GENERAL MOTORS CORP.
