Removal Procedure

  1. Disconnect the heater cord from the block heater.
  2. Cut the heater cord strap at the power steering line.

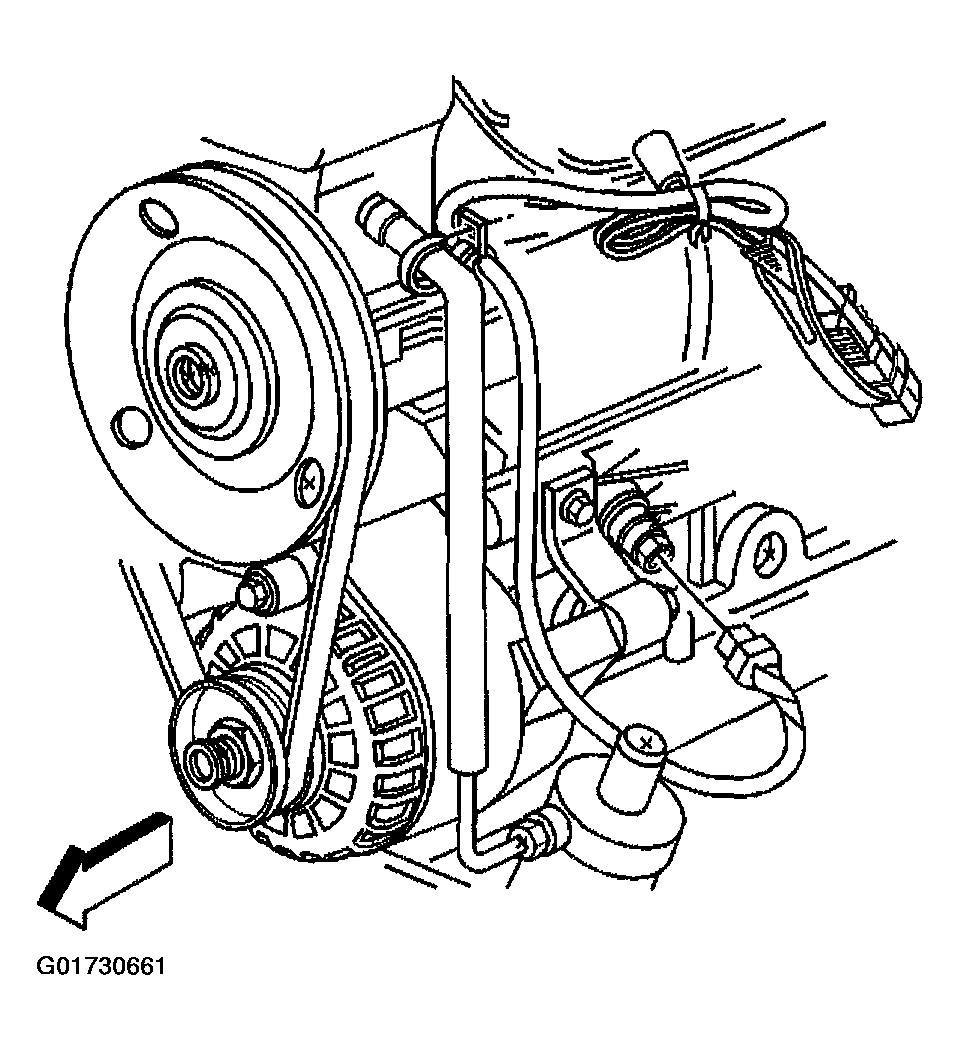

    Fig 1: Disconnecting Heater Cord From Block Heater
    G01730661Courtesy of GENERAL MOTORS CORP.
  3. Cut the heater cord strap at the fuse block center.
  4. Remove the heater cord from the vehicle.

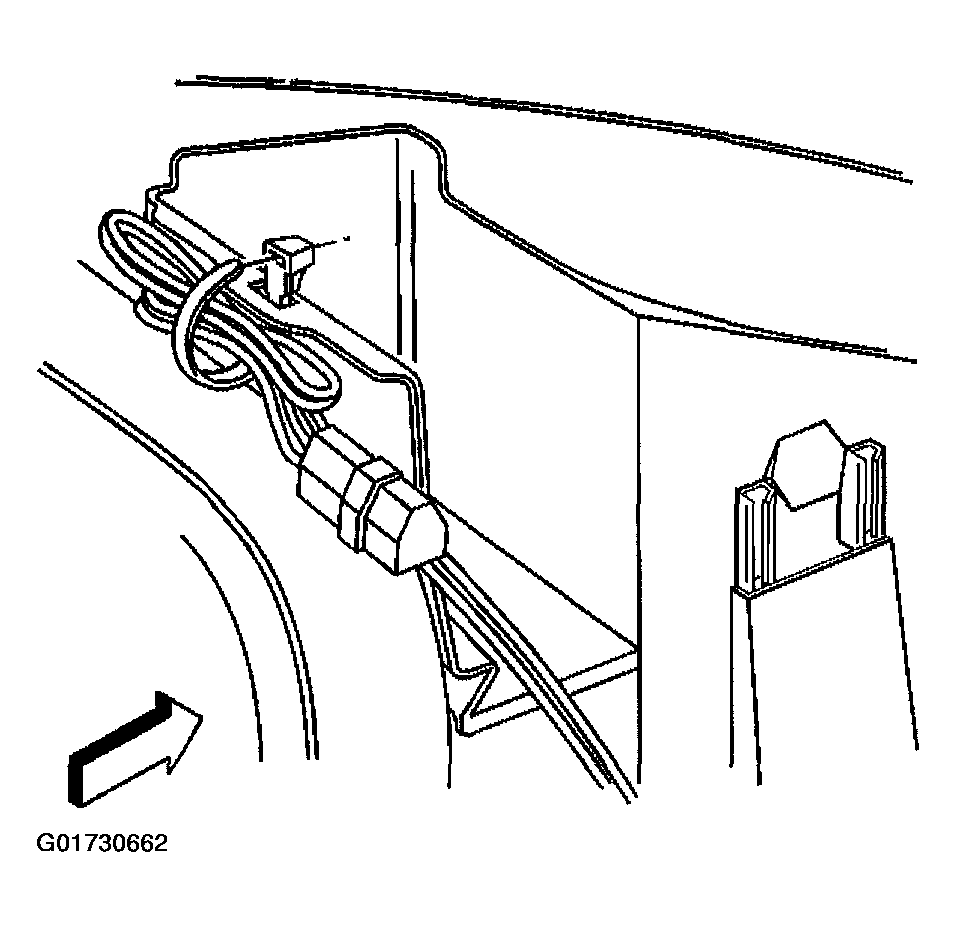

    Fig 2: Removing Heater Cord
    G01730662Courtesy of GENERAL MOTORS CORP.
