Removal Procedure

  1. Disconnect the heater cord from the block heater.
  2. Route the block heater end of the cord under the power steering rack lines.
  3. Cut the heater cord strap at the power steering reservoir.

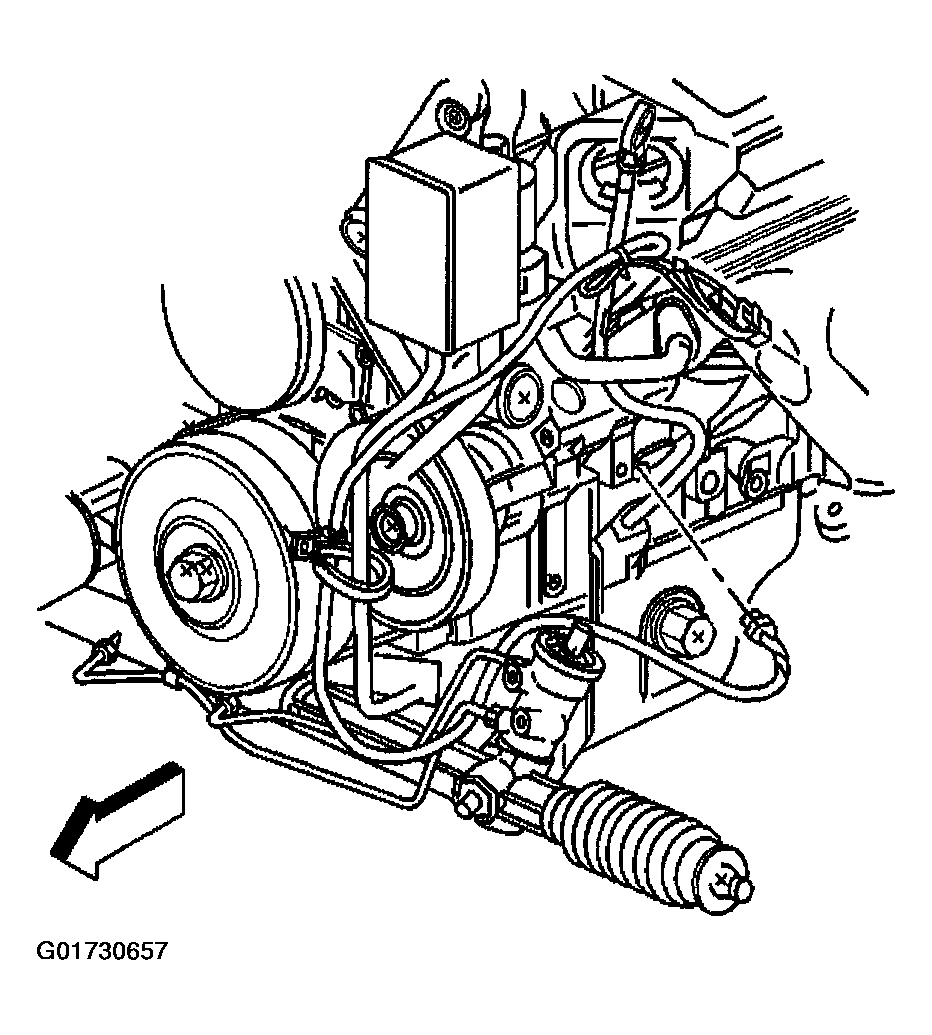

    Fig 1: Disconnecting Heater Cord From Block Heater
    G01730657Courtesy of GENERAL MOTORS CORP.
  4. Cut the heater cord strap at the fuse block center.
  5. Remove the heater cord from the vehicle.

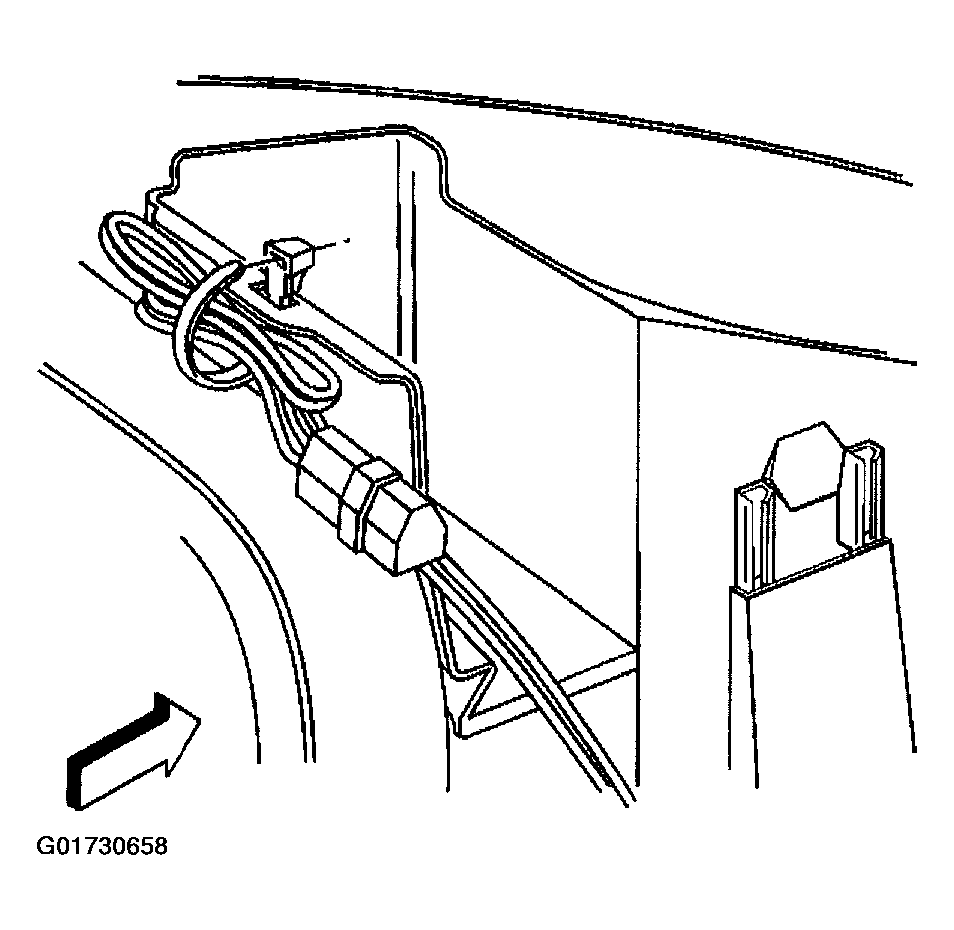

    Fig 2: Removing Heater Cord
    G01730658Courtesy of GENERAL MOTORS CORP.
