Removal Procedure

  1. Remove the intake manifold. Refer to INTAKE MANIFOLD .
  2. Remove the coolant air bleed pipe studs (1).
  3. Remove the coolant air bleed pipe (2) with gaskets (3).

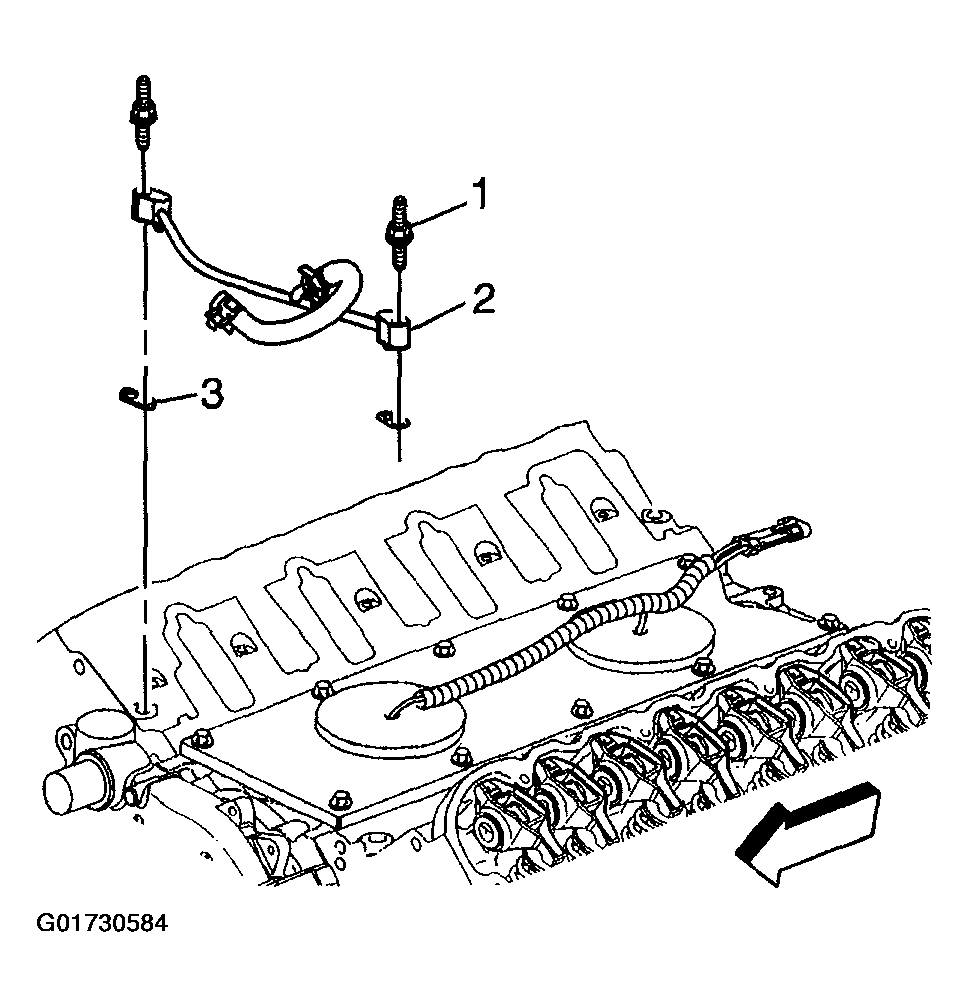

    Fig 1: Removing Coolant Air Bleed Pipe Studs
    G01730584Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant air bleed pipe cover bolts (1) and covers (2).

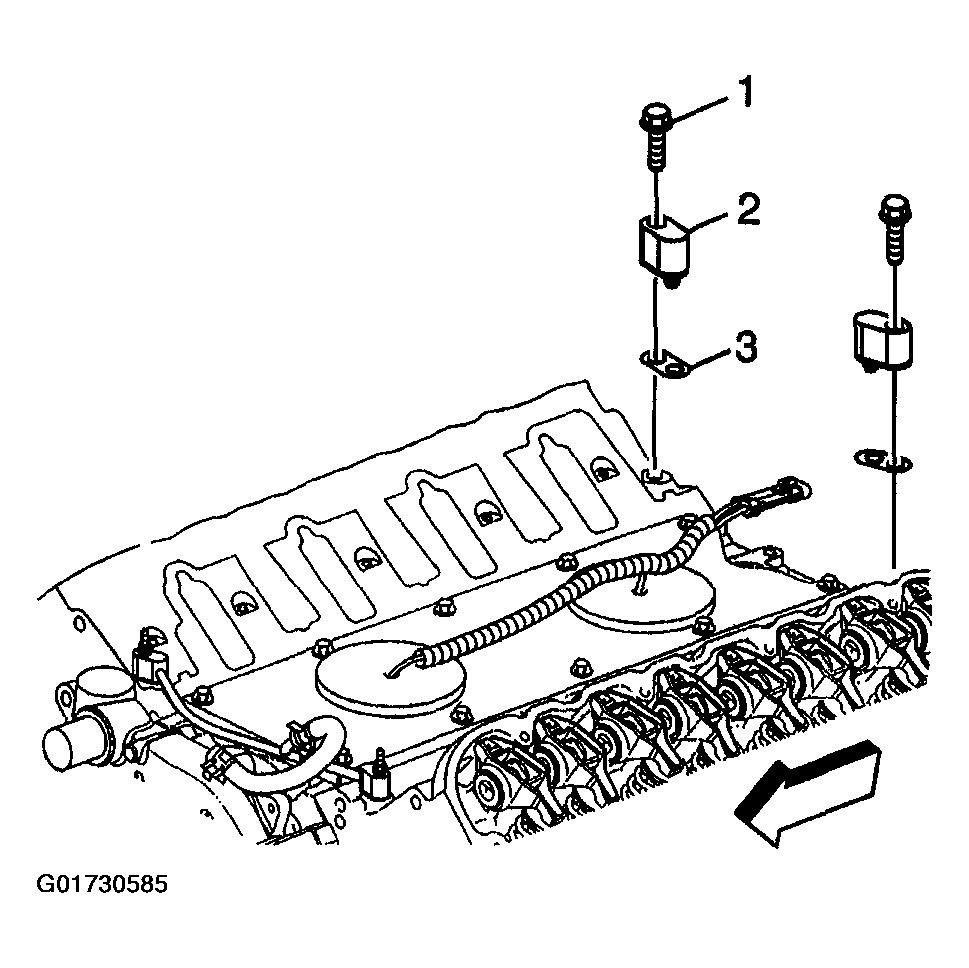

    Fig 2: Removing Coolant Air Bleed Pipe Cover Bolts And Covers
    G01730585Courtesy of GENERAL MOTORS CORP.
  5. Remove the gaskets from the coolant air bleed pipe and covers.
  6. Discard the gaskets.
    Fig 3: Removing Gaskets From Coolant Air Bleed Pipe And Covers
    G01730586Courtesy of GENERAL MOTORS CORP.
  7. Remove the coolant air bleed hose (2) from the pipe (1).
  8. Clean and inspect the coolant air bleed pipe.
    Fig 4: Removing Coolant Air Bleed Hose
    G01730587Courtesy of GENERAL MOTORS CORP.
