Removal Procedure

  1. Reposition the coolant air bleed hose clamp at the throttle body.
  2. Remove the coolant air bleed hose from the throttle body.

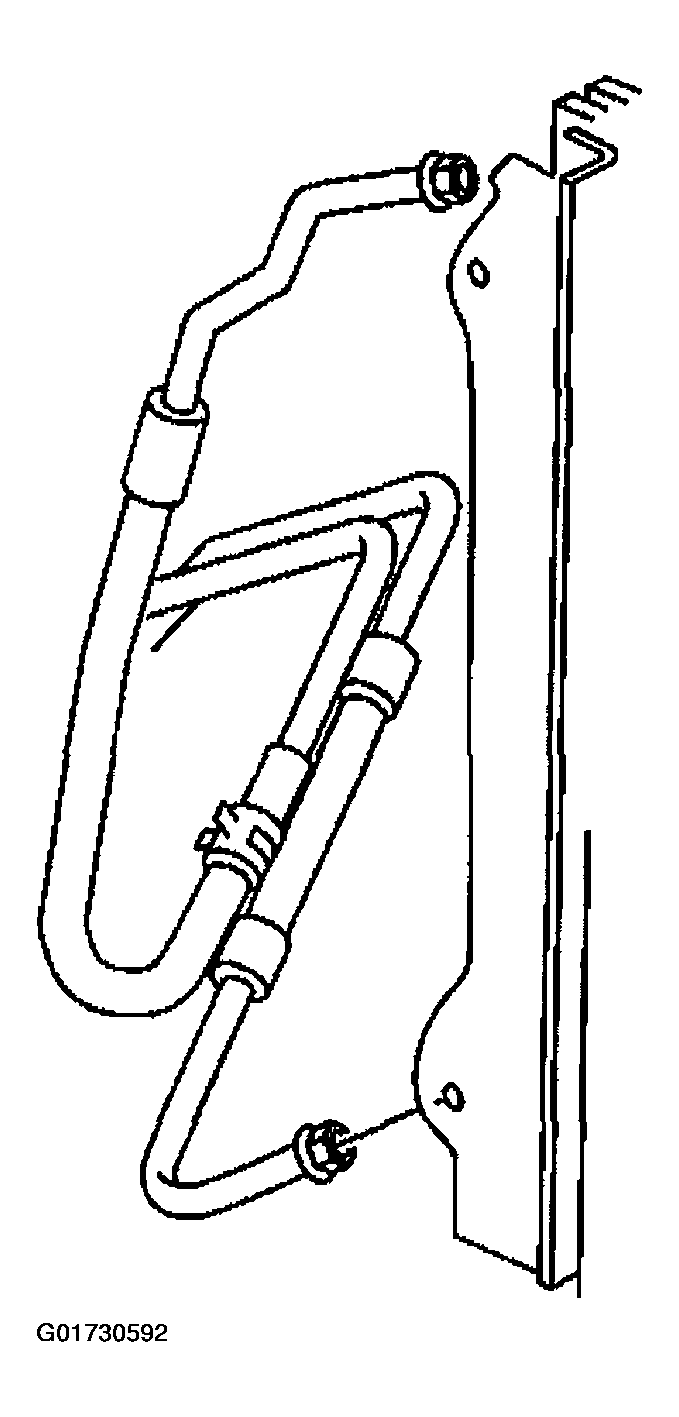

    Fig 1: Removing Coolant Air Bleed Hose
    G01730592Courtesy of GENERAL MOTORS CORP.
  3. Reposition the coolant air bleed hose clamp at the pipe.
  4. Remove the coolant air bleed hose (2) from the pipe (1).
    Fig 2: Removing Coolant Air Bleed Hose
    G01730593Courtesy of GENERAL MOTORS CORP.
