Installation Procedure

  1. Install the coolant air bleed hose (2) to the pipe (1).
    Fig 1: Installing Coolant Air Bleed Hose
    G01730594Courtesy of GENERAL MOTORS CORP.
  2. Position the coolant air bleed hose clamp at the pipe.
  3. Install the coolant air bleed hose to the throttle body.

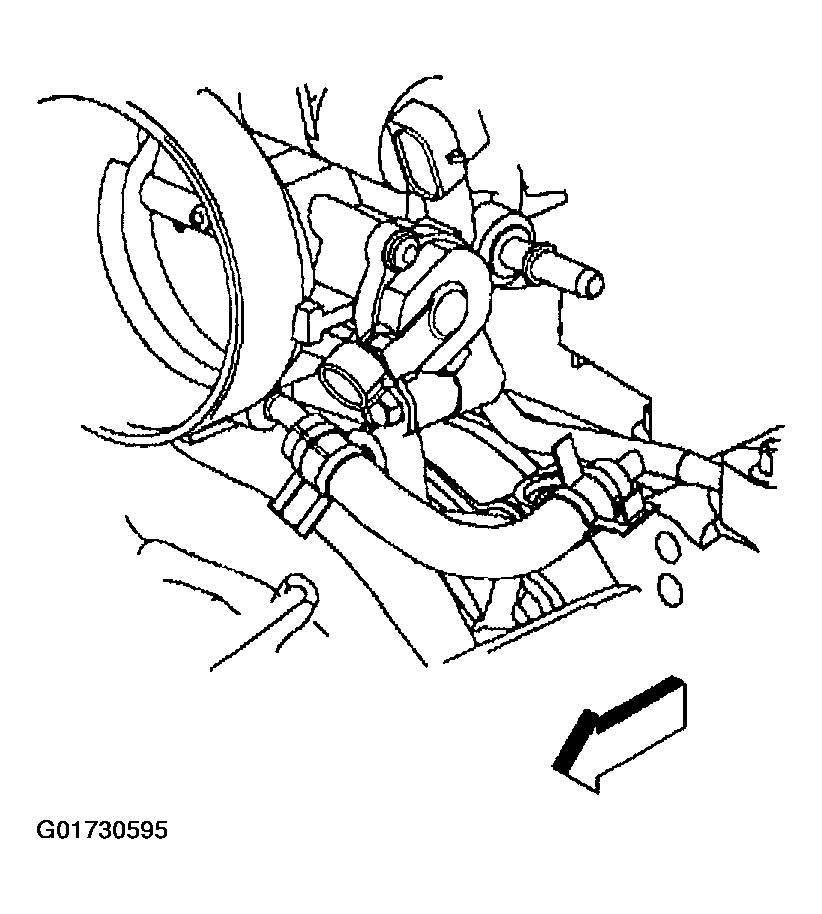

    Fig 2: Installing Coolant Air Bleed Hose To Throttle Body
    G01730595Courtesy of GENERAL MOTORS CORP.
  4. Position the coolant air bleed hose clamp at the throttle body.
  5. Add engine coolant, if necessary.
