Home >> Chevrolet >> 2001 >> Camaro Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Diagnostic Information and Procedures >> Scan Tool Output Controls (LS1 5.7L)

Scan Tool Output Controls (LS1 5.7L)

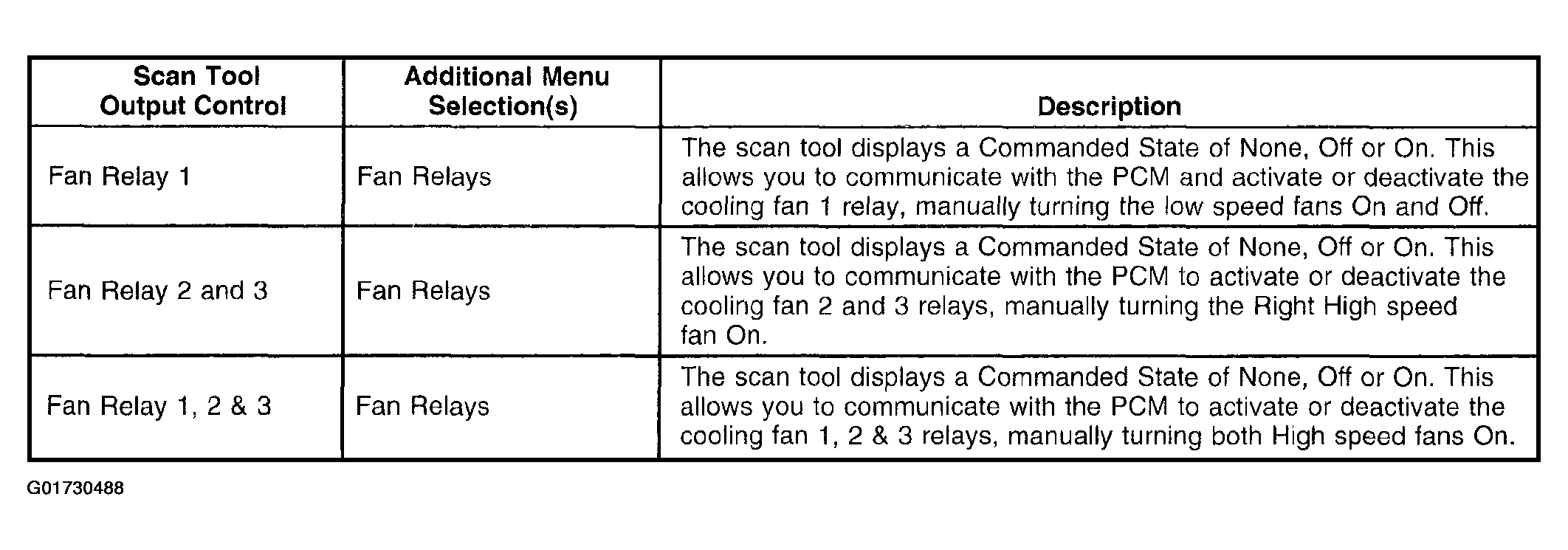

Fig 1: Scan Tool Output Controls (LS1 5.7L) Table

G01730488

Courtesy of GENERAL MOTORS CORP.
