Scan Tool Output Controls (L36 3.8L)

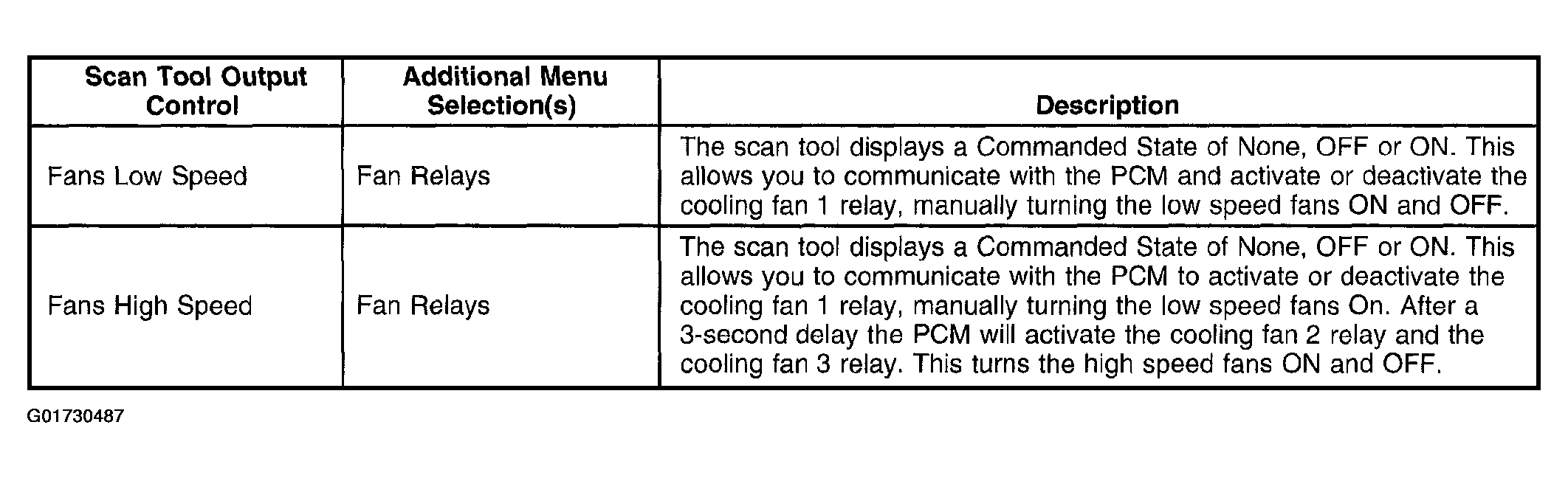

Fig 1: Scan Tool Output Controls (L36 3.8L) Table

G01730487

Courtesy of GENERAL MOTORS CORP.
