Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling System (Mechanical)
>>
Engine Cooling System
>>
Diagnostic Information and Procedures
>>
Engine Overheating
Engine Overheating

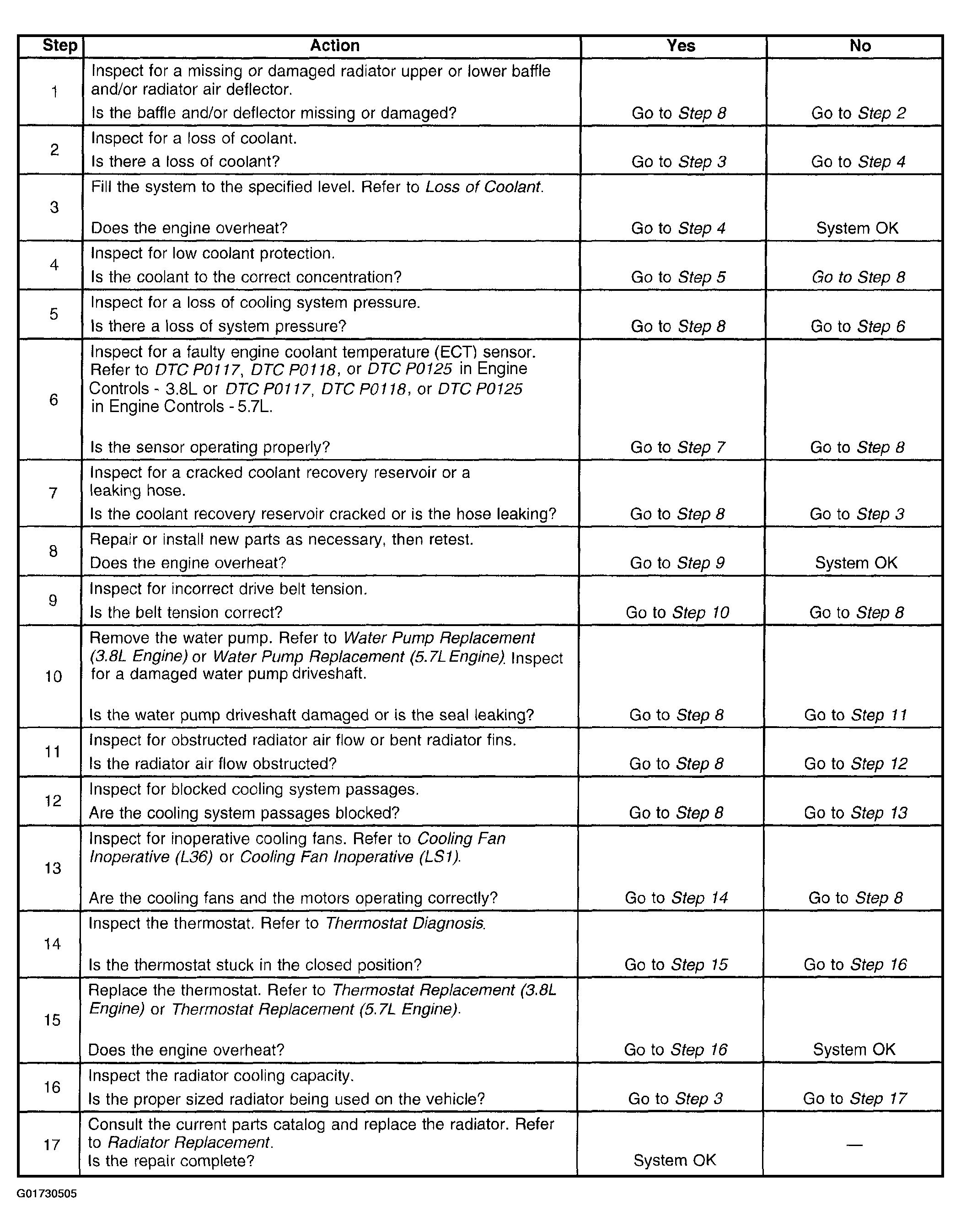

Fig 1: Engine Overheating
Courtesy of GENERAL MOTORS CORP.
