Steering Wheel: Installation

  1. Route the SIR coil electrical connector to the steering wheel (2). Install the steering wheel horn switch. Install the steering wheel (2). Connect the horn ground lead (5). Install NEW steering wheel nut (3). Tighten nut to 43 N.m (32 lb ft). Enable air bag system. See appropriate AIR BAG RESTRAINT SYSTEMS article.

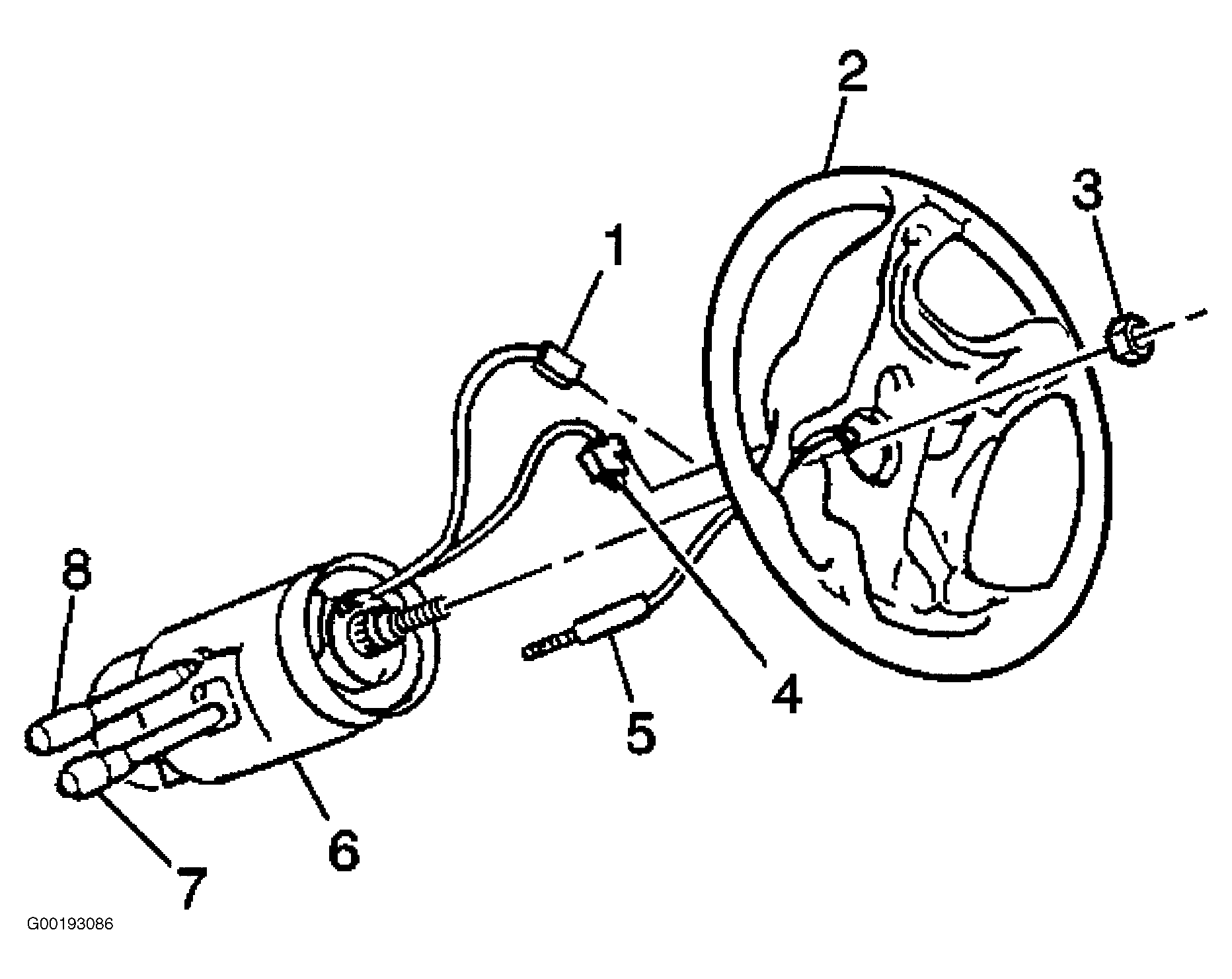

Fig 1: Steering Wheel Removal & Installation
G00193086Courtesy of GENERAL MOTORS CORP.
