Lower LF of the Engine Components (6.6L)

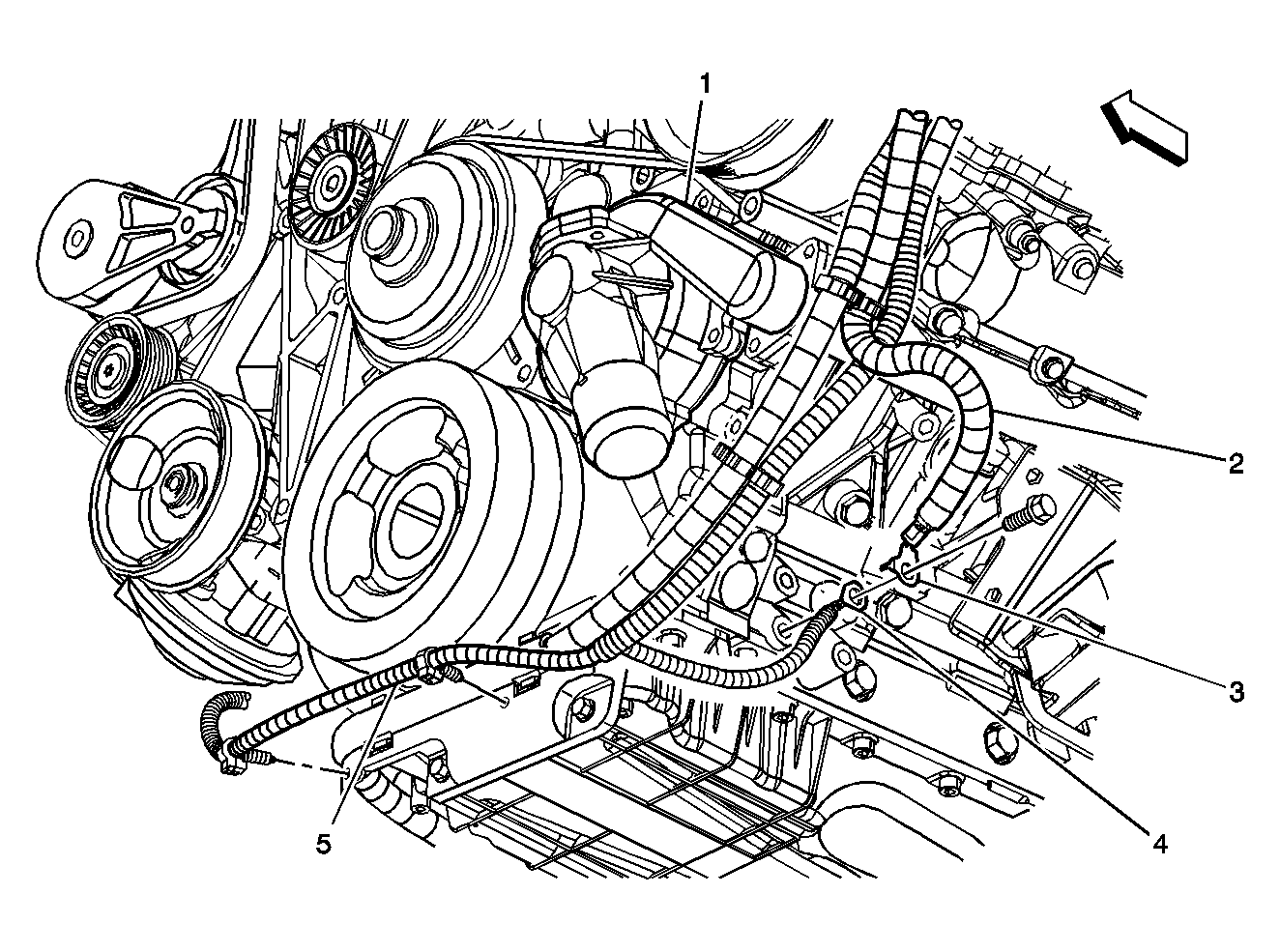

Fig 1: Negative Battery Cable And Grounds
GM768351Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine- 6.6L Diesel
2 Negative Battery Cable
3 Negative Battery Ground
4 G103
5 Engine Harness
