Center Console Wiring (1 of 2)

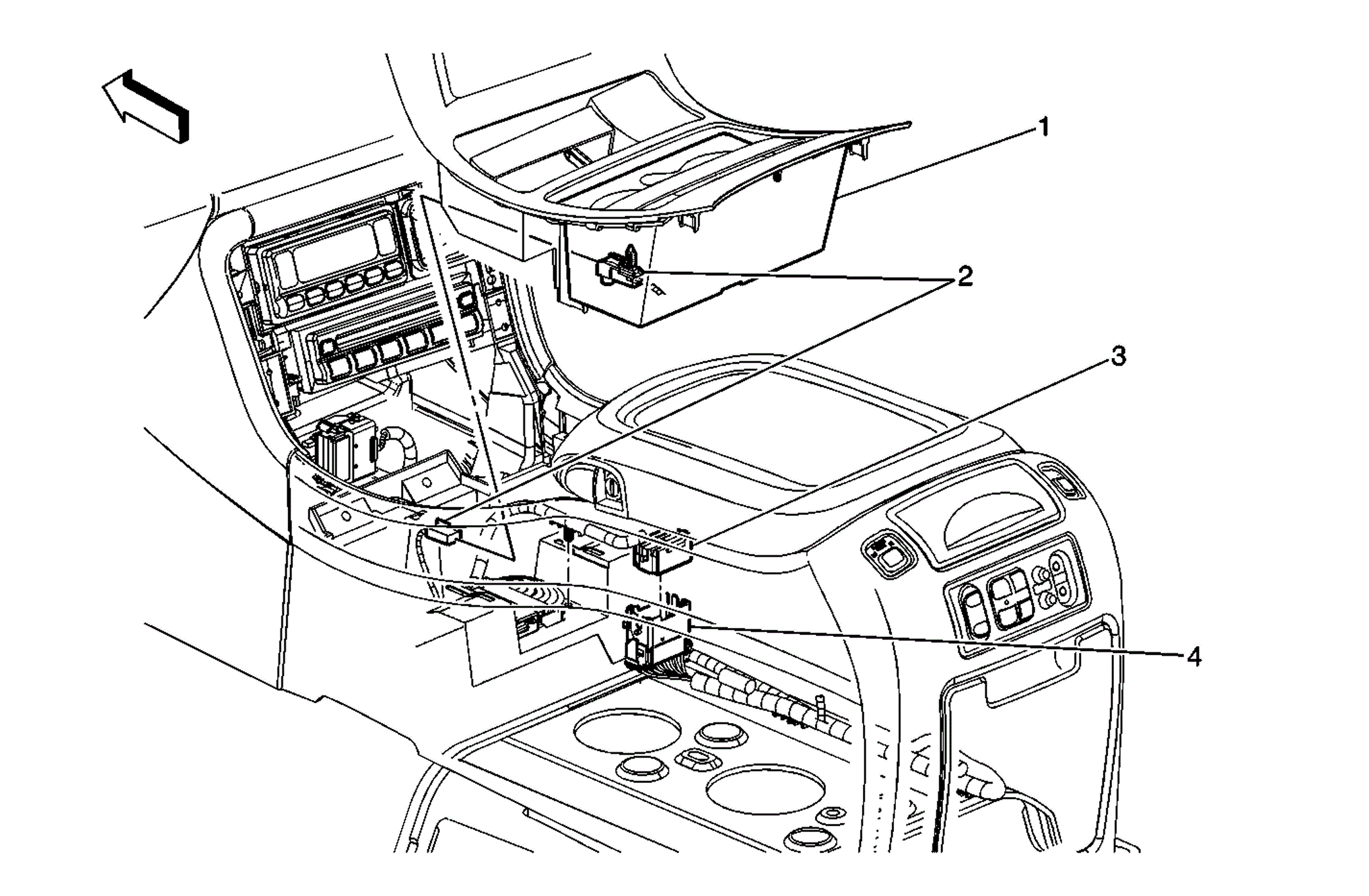

Fig 1: Center Console Wiring (1 of 2)
GM656698Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Compartment Bezel
2 Inline Connector-C249
3 Inline Connector-C340( I/P Harness Side)
4 Inline Connector-C340 (Rear Console Harness Side)
