IGN 1 Relay, and ECM 1, ETC, INJA, INJB Fuses- Gas

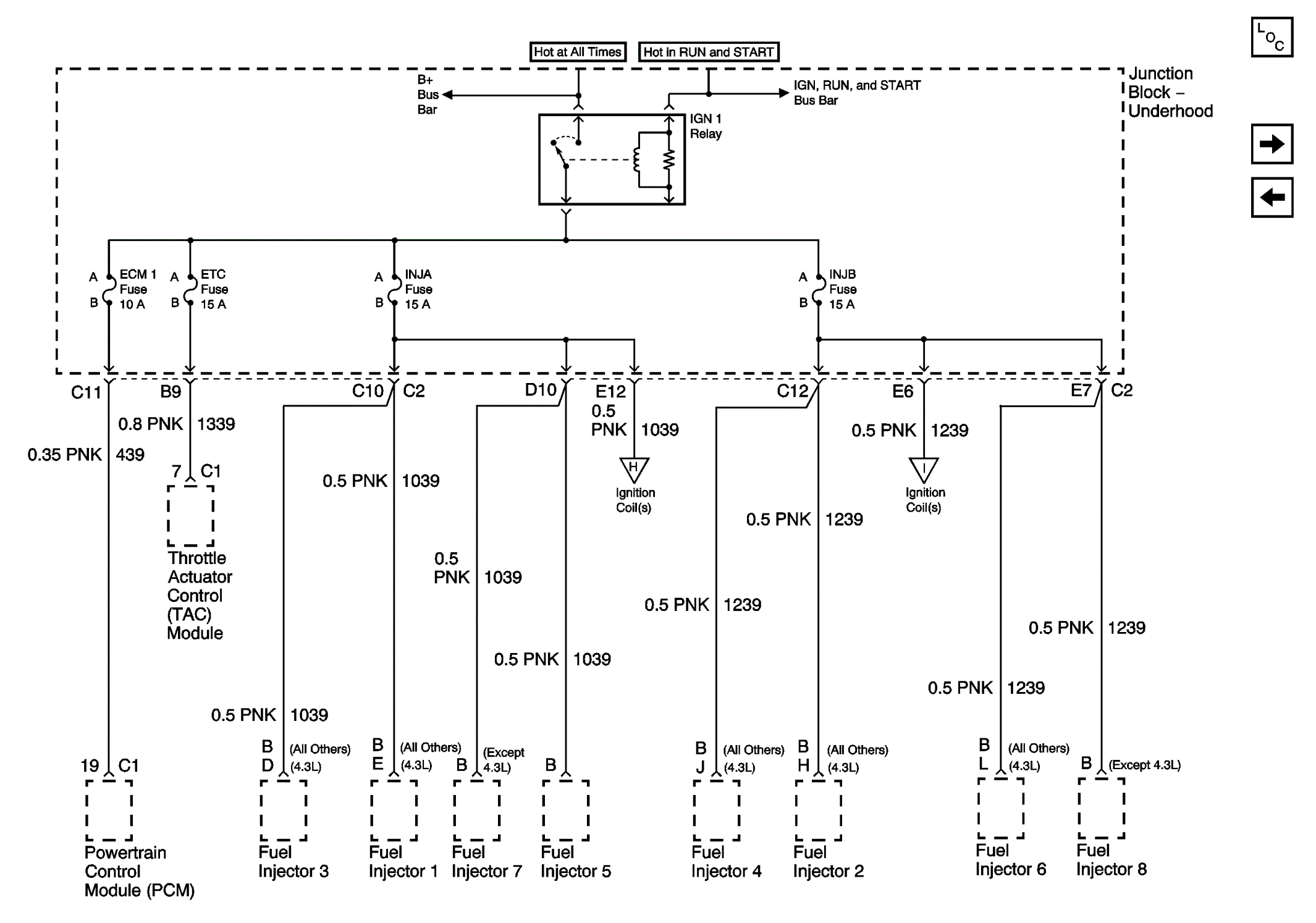

Fig 1: IGN 1 Relay, and ECM 1, ETC, INJA, INJB Fuses- Gas Wiring Schematic

GM839166

Courtesy of GENERAL MOTORS COMPANY
