FR PRK, TRL PRK, LR PRK, RR PRK Fuses, and FOG LAMP Relay

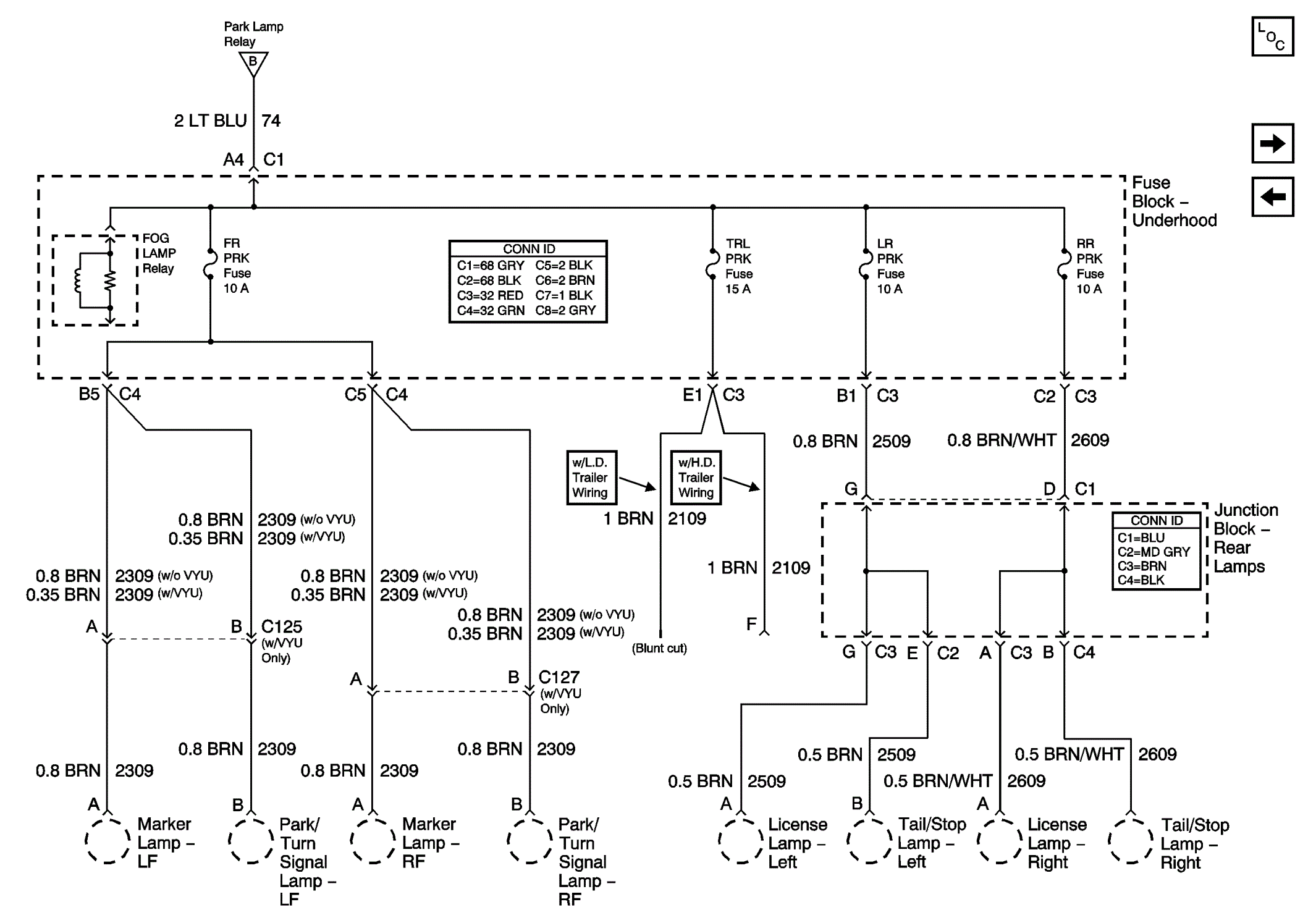

Fig 1: FR PRK, TRL PRK, LR PRK, RR PRK Fuses, and FOG LAMP Relay Wiring Schematic

GM653071

Courtesy of GENERAL MOTORS COMPANY
