Wiring Schematics and Wiring Harness Routing Diagrams
>>
Power Distribution Wiring Schematics
>>
BRAKE, CRUISE, HTR A/C, RR WPR, WS WPR, and SEO ACCY Fuses
BRAKE, CRUISE, HTR A/C, RR WPR, WS WPR, and SEO ACCY Fuses

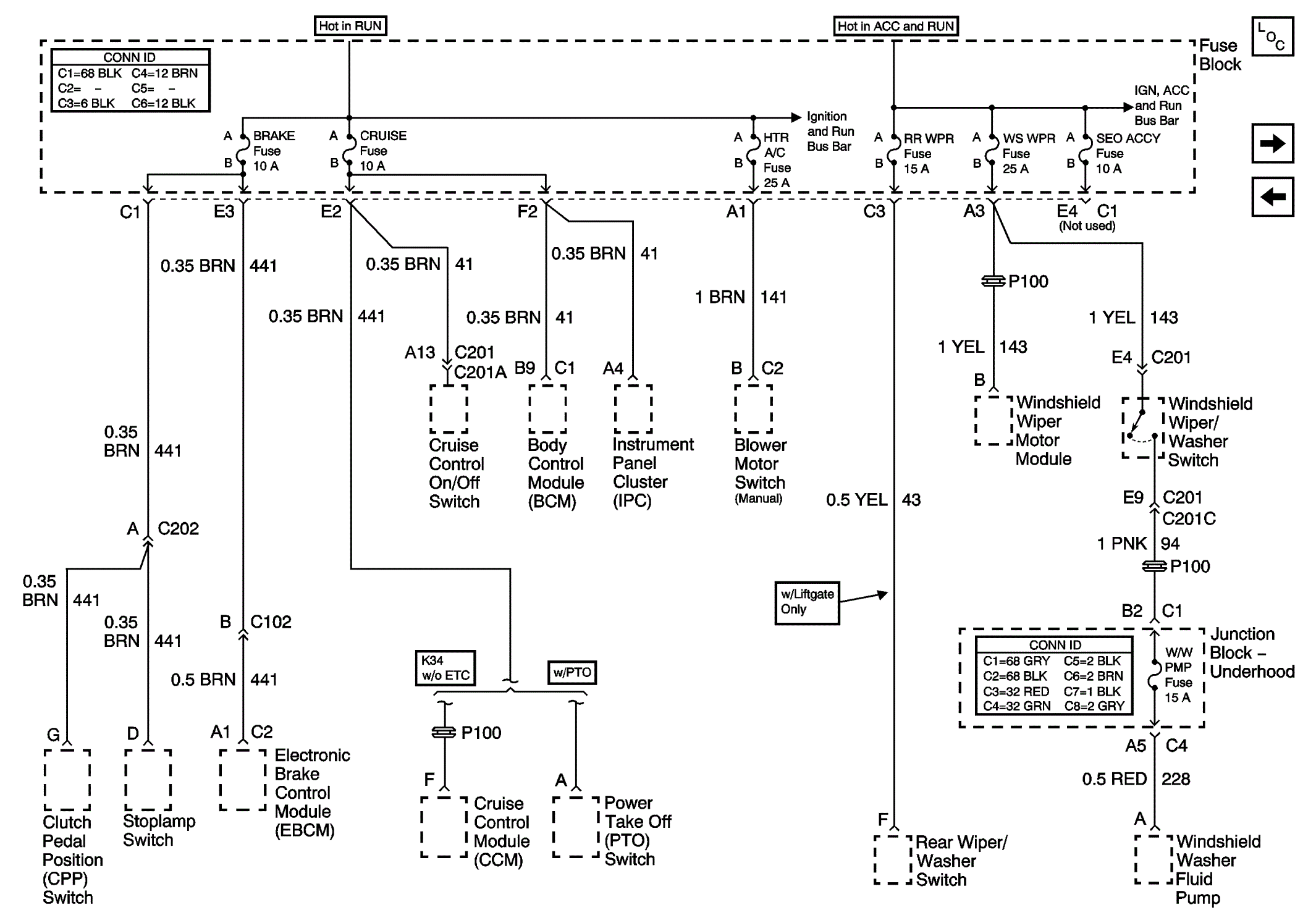

Fig 1: BRAKE, CRUISE, HTR A/C, RR WPR, WS WPR, and SEO ACCY Fuses Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
